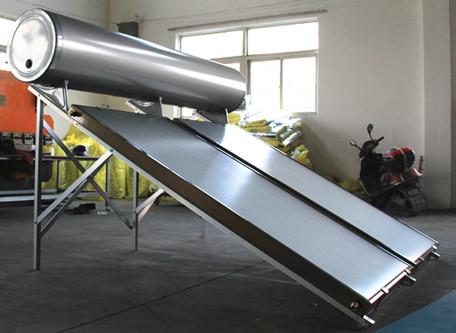

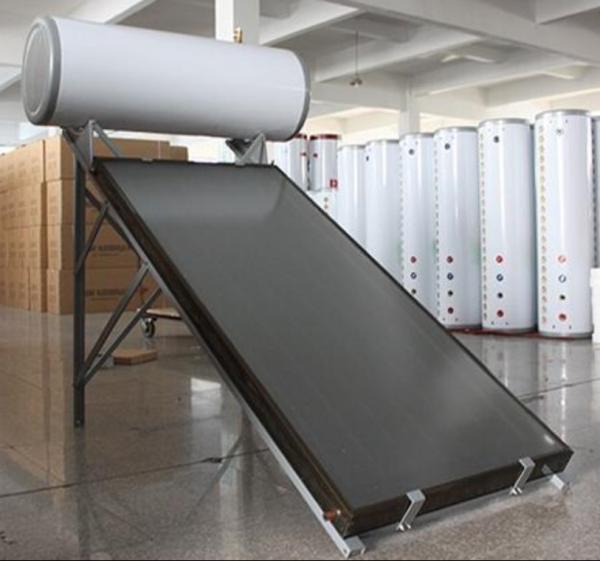

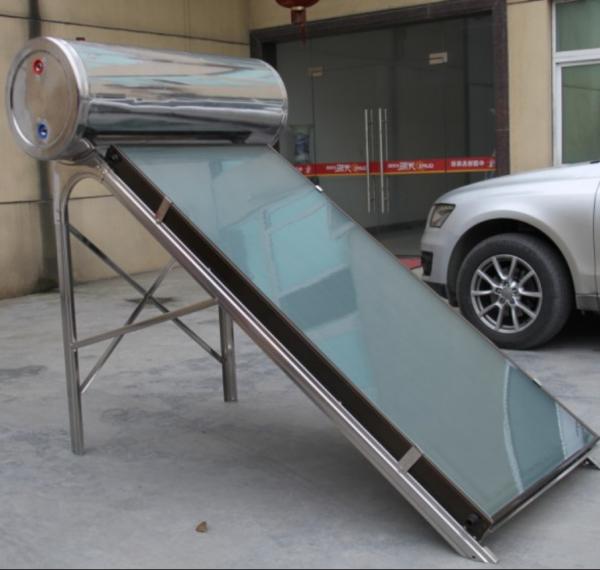

Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Economical Compact Nonpressure Solar Water Heater ---Flat Collector Model
Specifications
Brand Name :
APS
Model Number :
APGS- 480/380- PC-80/1-N APGS- 520/420- PC-80/1-N APGS-480/380- PC-80/2-N APGS-520/420- PC-80/2-N
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
20 Days
Packaging Details :
Standard Export Package
Description

Compact Flat Collector Solar Water Heater

Tech Data:

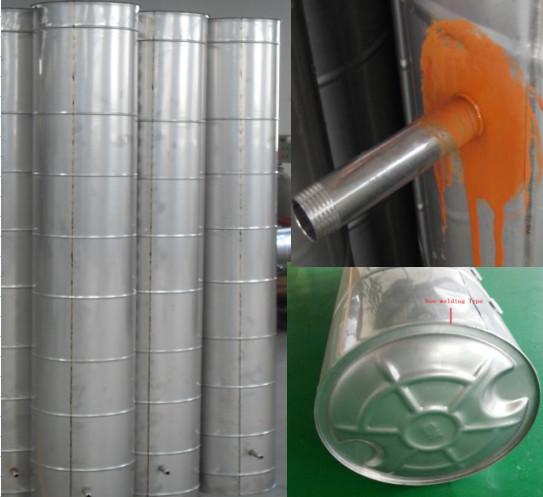

1. Inner water tank: Stainless Steel, SUS304-2B, SS316L; Thickness,0.5MM.

2. Outer water tank: Color Steel, Stainless Steel; Thickness, 0.40MM.

3. Insulation layer: Polyurethane foam; Thickness, 30-60MM.

4. Frame: Galvanized Steel, Stainless Steel; Angle, As your requirement.

5. Solar Collector: Length 2000MM; Widen,1000MM; Thickness,80MM.

6. Heating Element, Mg Rod, Reflector and Controller can be provided.

7. Working Pressure :0.6Mpa ,Testing Pressure :1.0Mpa.

Characteristic:

1. High efficiency: Black chrome or magnetic blue sputtering coating with absorptivity of 92% - 96%, Emission of 5% -10%.
2. Easy installation: Many styles of brackets suitable for different construction, easy installation, beautiful appearance.

3. The system is same as tap water which would make the bathing very comfortable.

4. With the T/P valve, air vent valve makes the system work very stable and safety.

Model of Model of Capacity Aperture Loading
Solar Water Heater Solar Water Heater Tank Area 40HQ
APGS- 480/380- PC-80/1-N APSS- 480/380- PC-80/1-N 125L 1.85M2 107 No.
APGS- 520/420- PC-80/1-N APSS- 520/420- PC-80/1-N 150L 1.85M2 99 No.
APGS-480/380- PC-80/2-N APSS-480/380- PC-80/2-N 250L 3.70M2 60 No.
APGS-520/420- PC-80/2-N APSS-520/420- PC-80/2-N 300L 3.70M2 55 No.
