2.5mm² Solar Cable Technical Specifications:

•Cross Section: 2.5mm²

•Conductor Construction: TXR 50/0.25 n/mm

•Conductor Stranded OD: 2.02mm

•Insulation Min. Wall: 0.67mm

•Sheath Min. Wall: 0.73mm

•Cable OD: 5.45mm

•Conductor Max. Resistance At 20℃: 7.98 Ω/km

•Current Capacity At 60℃: 40A

4.0mm² Solar Cable Technical Specifications:

•Cross Section: 4.0mm²

•Conductor Construction: TXR 56/0.30 n/mm

•Conductor Stranded OD: 2.60mm

•Insulation Min. Wall: 0.67mm

•Sheath Min. Wall: 0.73mm

•Cable OD: 6.10mm

•Conductor Max. Resistance At 20℃: 4.95 Ω/km

•Current Capacity At 60℃: 55A

6.0mm² Solar Cable Technical Specifications:

•Cross Section: 6.0mm²

•Conductor Construction: TXR 84/0.30 n/mm

•Conductor Stranded OD: 3.42mm

•Insulation Min. Wall: 0.80mm

•Sheath Min. Wall: 0.80mm

•Cable OD: 7.20mm

•Conductor Max. Resistance At 20℃: 3.30 Ω/km

•Current Capacity At 60℃: 70A

10.0mm² Solar Cable Technical Specifications:

•Cross Section: 10.0mm²

•Conductor Construction: TXR 142/0.30 n/mm

•Conductor Stranded OD: 4.56mm

•Insulation Min. Wall: 0.90mm

•Sheath Min. Wall: 0.90mm

•Cable OD: 9.00mm

•Conductor Max. Resistance At 20℃: 1.91 Ω/km

•Current Capacity At 60℃: 98A Industry Standards and Approvals:

• TUV Listed as PV1-F

• RoHS Compliant

• Wet/Dry Temperature: -40C to 90C

• Sunlight resistant

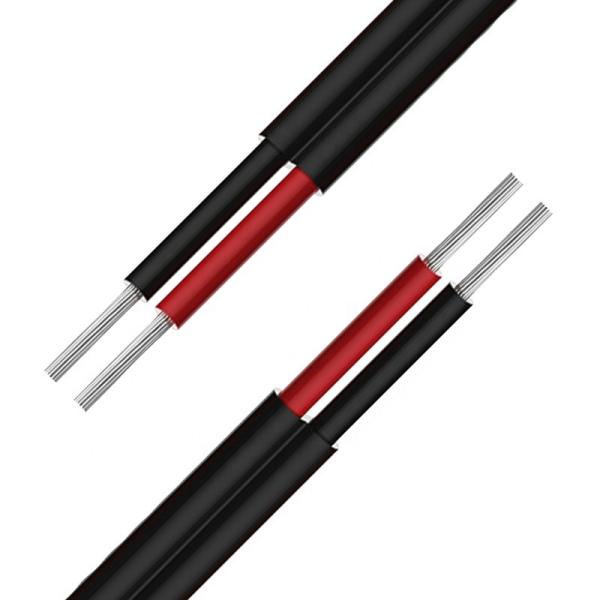

2X4.0mm² Solar Cable Technical Specifications

:•Cross Section: 2X4.0mm²

•Conductor Construction: TXR 56/0.30 n/mm

•Conductor Stranded OD: 2.60mm

•Insulation Min. Wall: 0.67mm

•Sheath Min. Wall: 0.73mm

•Cable OD: 6.10mm

•Conductor Max. Resistance At 20℃: 4.95 Ω/km

•Current Capacity At 60℃: 55A

2X6.0mm² Solar Cable Technical Specifications:

•Cross Section: 2X6.0mm²

•Conductor Construction: TXR 84/0.30 n/mm

•Conductor Stranded OD: 3.42mm

•Insulation Min. Wall: 0.80mm

•Sheath Min. Wall: 0.80mm

•Cable OD: 7.20mm

•Conductor Max. Resistance At 20℃: 3.30 Ω/km

•Current Capacity At 60℃: 70A
