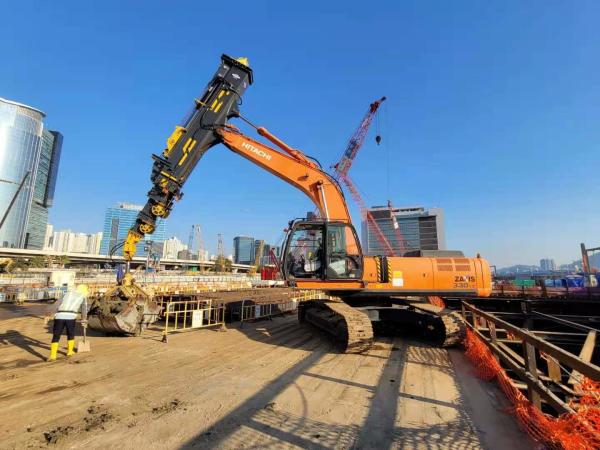

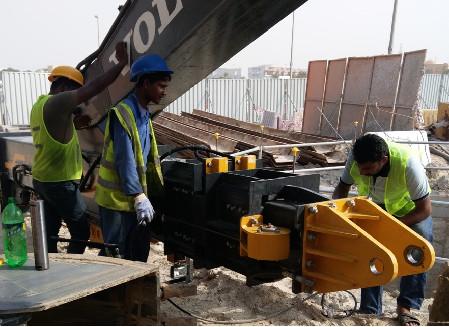

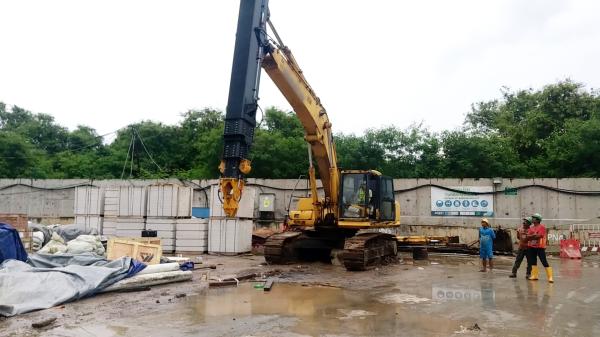

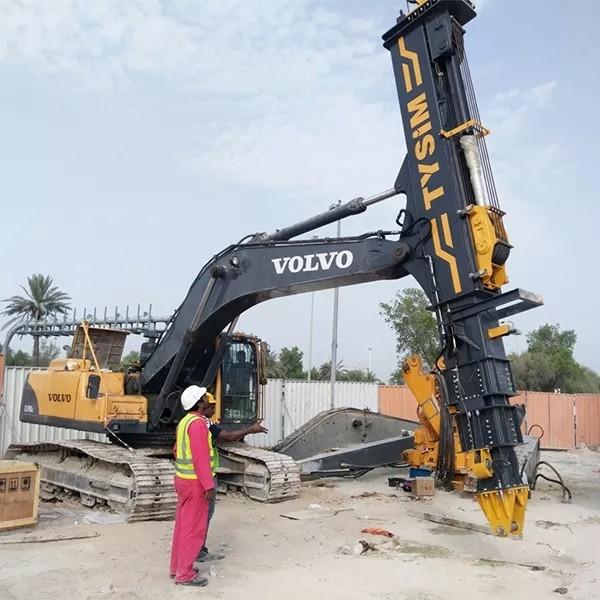

KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
KM220 Excavator Telescopic Arm Clamshell Long Reach Boom
Specifications
Brand Name :
APIE
Model Number :
KM150,KM220,KM260
Certification :
CE and ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
$48000+
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/month
Delivery Time :
5-7 days
Packaging Details :
nude packing
Product Name :
excavator attachment Clamshell Telescopic Arm
Max. Digging Depth :
22490mm
Max. Digging Radius :
5845mm
Max. Operating radiusoke :
9835mm
Recommended excavator capacity :
≥36ton
Weight of Bucket :
1600kg
Weight :
5.6t
Showroom Location :
Italy, Peru, Indonesia, Russia, Thailand, Kenya, Australia
Model :
KM150,KM220,KM260
Application area :
small space construction
shell bucket size :
custome
KMF line :
Low headroom telescopic boom
Description

KM220 Excavator Telescopic Boom: Clamshell Long Reach Boom with Telescopic Arm

Product Feature

1. Unparalleled Power and Performance:
Our KM220 Excavator Telescopic Boom is equipped with a unique and durable gravity-fed and hydraulic cylinder functionality, coupled with a multi-section telescopic arm. This advanced attachment delivers superior digging and earth removal power, resulting in increased production and performance on the job site.

2. Versatile Solution for Complex Excavation Projects:

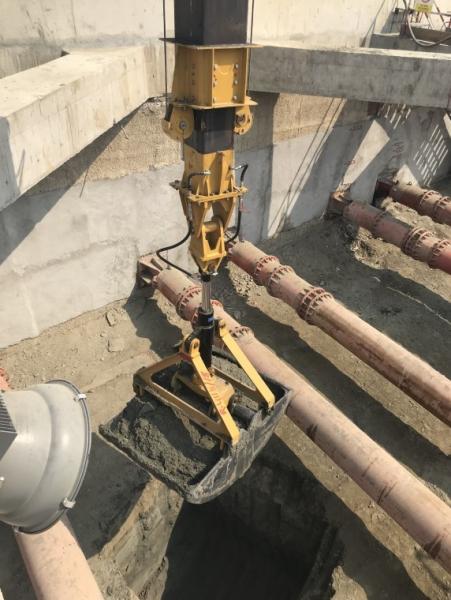

Designed for demanding excavation projects, both underground and underwater, including braced excavations with a diaphragm wall, the compact construction of the telescopic arm makes it a perfect fit. It excels in various applications such as foundation works, narrow excavation shafts, metro stations, underground parking, underground renovations, and canal clearance, to name just a few. Compatible with excavators ranging from 6 to 80 tonnes, it seamlessly integrates with machines from any brand.

3. Comprehensive Range of Attachments:
In addition to the KM220 Excavator Telescopic Boom, we offer a complete range of attachments to meet diverse requirements. Our offerings include clamshell buckets, digging and dredging buckets, log grabs, harvester heads, and more. With these versatile attachments, you can customize your excavator for a wide range of tasks, ensuring maximum efficiency and productivity.

Technical Specification

Technical Specification of KM Telescopic Excavator Boom
Type KM150 KM220 KM260
System Hydraulic cylinder&Wire rope Hydraulic cylinder &Wire rope Hydraulic cylinder&Wire rope
Weight 3.6t 4.6t 5.6t
Bucket Capacity 0.3m³ 0.6m³ 1.2m³
Max. Digging Depth 15200mm 22490mm 27180mm
Max. Digging Radius(Reach Max. Digging Depth) 4670mm 5845mm 6400mm
Max.Vertical Digging Radius 6430mm 7445mm 8530mm
Max. Digging Depth(Reach Max. Vertical Digging Radius) 11825mm 19920mm 22370mm
Max. Operating radius 7950mm 9835mm 11250mm
Max. Hoisting Height 2870mm 4465mm 5770mm
Min. Operating Radius 3980mm 4485mm 5460mm
Max. Operating Height 9475mm 13580mm 16675mm
Overall Transport Length 6908mm 10685mm 12390mm
Weight of Bucket 520Kg 990Kg 1600Kg
Recommended excavator capacity ≥15ton ≥23ton ≥36ton


KM220 Excavator Telescopic Arm Clamshell Long Reach Boom

KM220 Excavator Telescopic Arm Clamshell Long Reach Boom

KM220 Excavator Telescopic Arm Clamshell Long Reach Boom

KM220 Excavator Telescopic Arm Clamshell Long Reach Boom

FAQ

1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.

2: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.

3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm

4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
