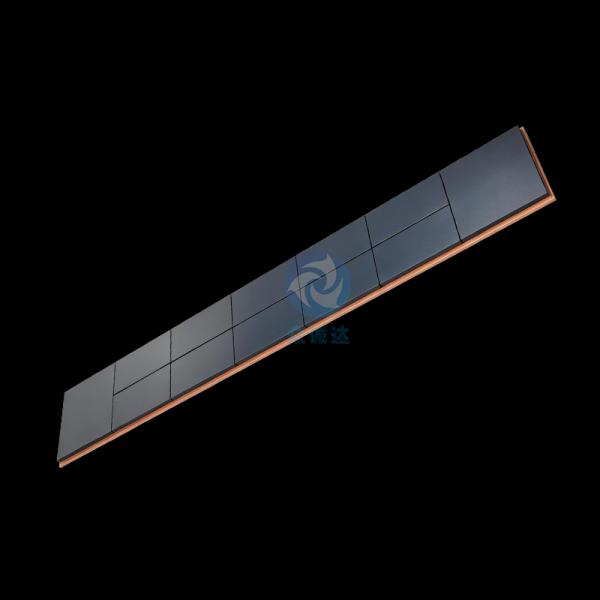

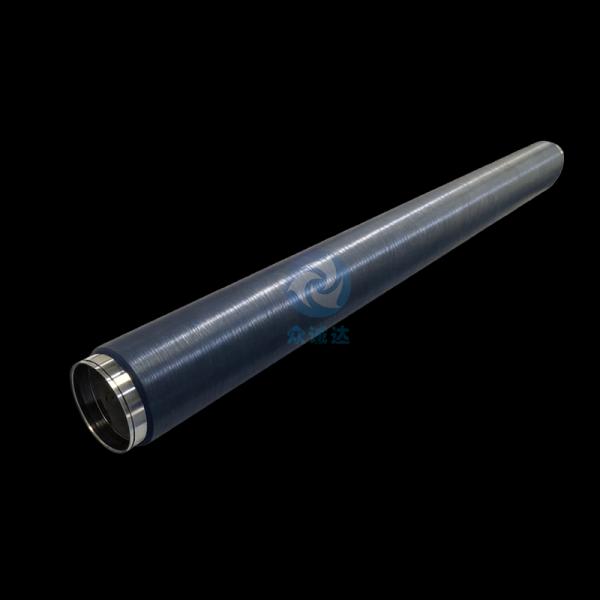

Niobium oxide target is an important functional oxide ceramic target commonly used in sputtering, pulsed laser deposition (PLD), and other thin film deposition processes. This target has good chemical stability and electrical properties, along with excellent transparency and anti-reflective properties.

Outstanding Properties of Niobium Oxide Target (Nb₂Oₓ)

l Chemical Stability

Niobium oxide demonstrates exceptional stability at room temperature, showing minimal reaction with acids and bases. This makes it ideal for applications in chemically corrosive environments, maintaining stable performance in harsh chemical conditions.

l Electrochemical Performance

Niobium oxide exhibits excellent electrochemical stability and electron transport properties, making it an ideal material for energy storage devices such as batteries and capacitors.

l Outstanding Optical Properties

Niobium oxide target has high refractive index and low dispersion characteristics, making it an ideal material for producing optical elements such as filters and lens coatings.

l Electrical Insulating Properties

Niobium oxide is an excellent electrical insulator with a high dielectric constant, making it particularly important in microelectronics and semiconductor industries.

Wide Applications of Niobium Oxide Target (Nb₂Oₓ)

l Electronics Devices

The core application of niobium oxide target is in electronics devices, leveraging the high dielectric constant (ε≈25-40), low leakage current density, and semiconductor properties of Nb₂O₅ films.

l Optics

Nb₂O₅ films have a high refractive index (1.9-2.3 in the visible light range), high transparency (≥90%), and optical stability. The high refractive index and good optical transparency of niobium oxide make the films widely used in optical waveguides, anti-reflective coatings, and photoelectric detectors, significantly improving the optical performance and efficiency of devices.

l Dynamic Random-Access Memory (DRAM)

Niobium oxide target is used as the high dielectric constant dielectric layer in DRAM storage cells, replacing traditional SiO₂ and HfO₂, enabling higher capacitance in the same area and achieving high-density integration of memory.
