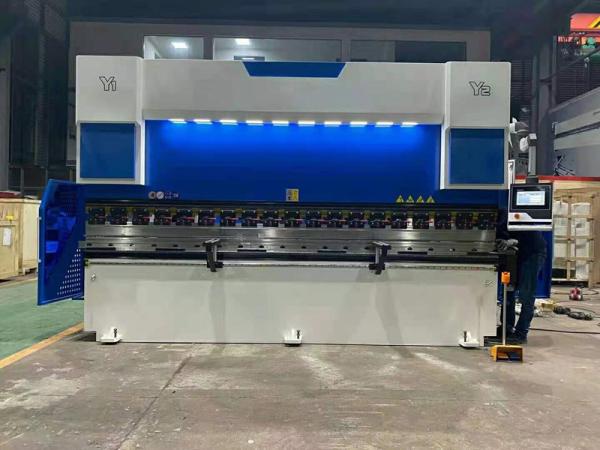

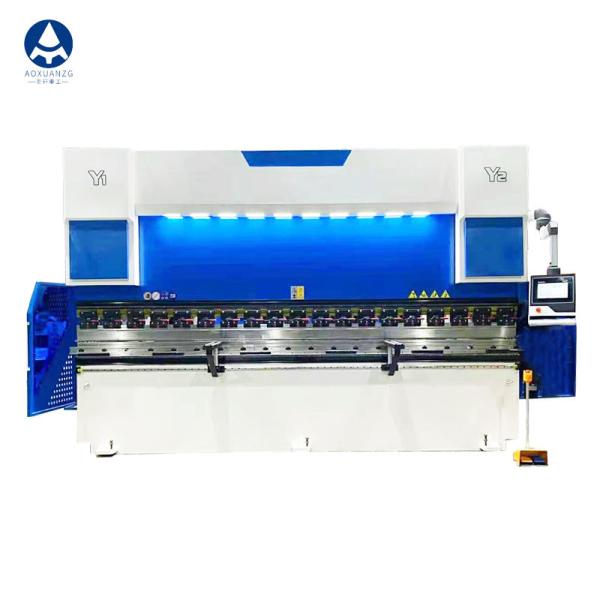

395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min
395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min
395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min
395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min
Specifications
Brand Name :
AOXUANZG
Model Number :
WE67K-100T/4000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
500sets/Year
Delivery Time :
20-30 days
Packaging Details :
Standard export packing
Delem :
DA53T
Model :
100T 4000MM
Max.Open Height :
395mm
Strokes Times :
≥8 times/min
Motor :
7.5kw
Throat Depth :
320mm
Description
Lights Custom Delem DA53T Blue And White Hydraulic Bending Press Brake Machine
ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production

Technical Parameters:

Model Norminal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Depth (mm) Slider Stroke(mm) Max Open hight (mm) Main motor power(KW) Crowing Cylinders Control Axes X axis stroke(mm) X axis speed(mm/s) Dimension
LxWxH (mm)
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 2 3+1 500 200 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3 3+1 500 200 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3 3+1 500 200 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3 3+1 500 200 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3 3+1 500 200 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3 3+1 500 200 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3 3+1 500 200 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4 3+1 500 200 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 / 3+1 800 200 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 / 3+1 800 200 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 / 3+1 800 200 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 / 3+1 800 200 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 / 3+1 800 200 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 / 3+1 800 200 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 / 3+1 800 200 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 / 3+1 800 200 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 / 3+1 800 200 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 / 3+1 800 200 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 / 3+1 800 200 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 / 3+1 1000 200 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 / 3+1 1000 200 8500×3100×7150

395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min

Details:

All the components are from world Famous Brand:
1) Hydraulic System: Bosch-Rexroth from Germany
2) Hydraulic PUMP: Sunny USA
3) Electrical Components: Schneider Electrical from France
4) Main Motor: Siemens from Germany
5) Ball screw/ Liner guide: HIWIN from Taiwan
6)Seal/Guide Ring: VALQUA-JAPAN

Delem DA53T

395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min

Quick Clamp
Brand: Aoxuanzg
All press brake use Quick clamp to change the bending tools quickly and easily.

395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min

For more information, please contact me (^o^)/~

395mm Hydraulic CNC Press Brake Delem DA53T Blue White Bending Machine 8 Times/Min
