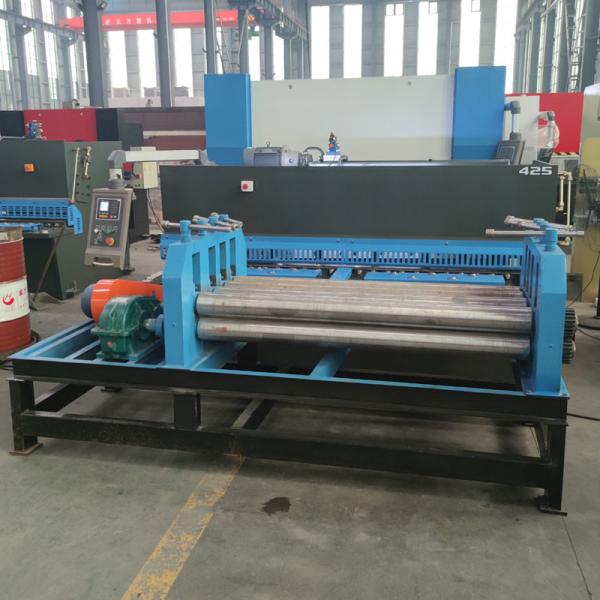

Metal Plate Straightening Shear Cutting Machine For 4mm 2500mm Semi Automatic
Metal Plate Straightening Shear Cutting Machine For 4mm 2500mm Semi Automatic
Metal Plate Straightening Shear Cutting Machine For 4mm 2500mm Semi Automatic
Metal Plate Straightening Shear Cutting Machine For 4mm 2500mm Semi Automatic
Specifications
Brand Name :
Aoxuanzg
Model Number :
QC12Y
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
$12000-$40000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
20-30 working days
Packaging Details :
Standard export packing
Condition :
New
Warranty :
24 months
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field maintenance and repair service
Voltage :
380V 220V Optional
Name :
QC12Y-4*2500 swing beam hydraulic steel shearing machine
Type :
Swing Beam Shear
Cutting material :
Metal Stainless Steel Carbon Steel Aluminum
Main motor :
Siemens From Germany
Description

Semi Automatic Straightening Shear Cutting Metal Plate Machine Production Line For 4mm 2500mm

Metal Plate Straightening Shear Cutting Machine For 4mm 2500mm Semi Automatic

Features:

1. Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
3. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
4. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
5. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

● Estun E21sNC control System
● Powered Back gaugeX-axis
● DELTA Inverter controlled back gauge
● HIWIN Ball screws & Polished rod with 0,05mm accuracy.
● Squaring Arm and Front Support Arms
● Germany Bosch-Rexroth Hydraulic
● Germany EMB Tubing connector
● Germany Siemens Main Motor
● Tele mecanique/Schneider Electrics
● Hydraulic &Electrical overload protection
● Cutting Line Illumination and wire for shadow line cutting
● Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

Technical Parameters:
​

Model

Thickness

(mm)

Cutting Length

(mm)

Cutting Angle

(°)

Material Strength

(KN/CM)

Stroke

(times/min)

Power

(kw)

Dimension

(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 2° ≤450 5 15 6500*2100*2300
12×2500 12 2500 2° ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 2° ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 2° ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 2° ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 2° ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 2° ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 3° ≤450 8 22 3440*2300*2500
20×3200 20 3200 3° ≤450 8 22 4150*2350*2700
20×4000 20 4000 3° ≤450 5 22 4850*2350*2700
20×6000 20 6000 3° ≤450 4 22 4850*2350*2700
25×2500 25 2500 3° ≤450 8 37 3200*2700*2900
25×3200 25 3200 3° ≤450 5 37 4200*2700*2900
30×2500 30 2500 3° ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 4° ≤450 3 75 3200*3300*3000
40×3200 40 3200 4° ≤450 3 90 4300*3300*320

We accept kinds of customized and logo of all of our products for customers .
If you interested and know more related products, please contact with me ~
More surprises waiting for you ~
