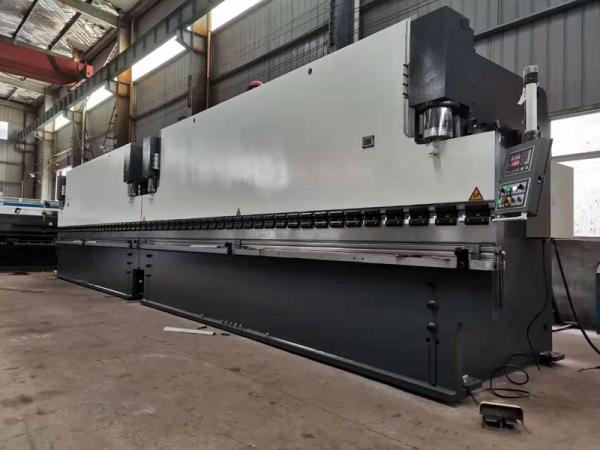

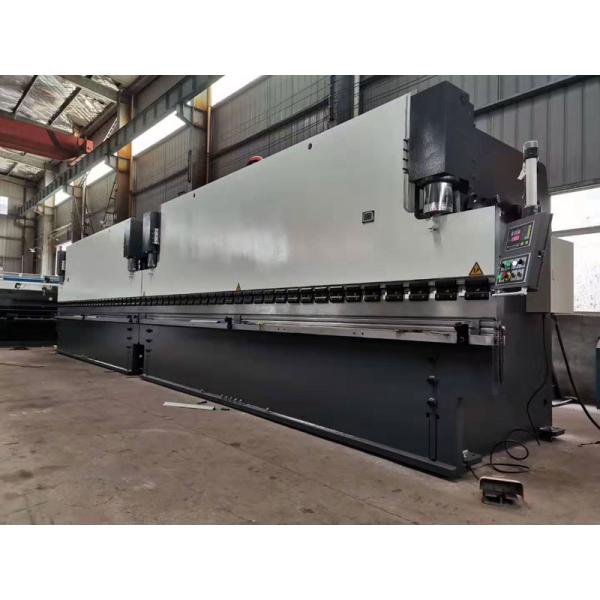

Double Linkage Bending Machine Heavy Plate Folding Angle Can Be Adjusted
Double Linkage Bending Machine Heavy Plate Folding Angle Can Be Adjusted
Double Linkage Bending Machine Heavy Plate Folding Angle Can Be Adjusted
Double Linkage Bending Machine Heavy Plate Folding Angle Can Be Adjusted
Specifications
Brand Name :
Aoxuanzg
Model Number :
WC67Y
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
$39000-$40000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
20-30 working days
Packaging Details :
Standard export packing
Condition :
New
Nominal pressure (kn) :
300-60000
Bending Width :
16m
Pressure :
2*500T
Description

Double Linkage Series Bending Machine Large Building Heavy Plate Folding Angle Can Be Adjusted Press Brake

Double Linkage Bending Machine Heavy Plate Folding Angle Can Be Adjusted

New EU streamlined design
(1) The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending.
(2) Hydraulic synchronous control and NC or CNC programmable logic controller ensure accurate repeatability and ease use.
(3) Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
(4) X axis , Y axis , Z axis ,R axis and V axis realize accurate positioning function by frequency converter through NC or CNC system programming control.
(5) Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
(6) The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.

Technical Parameters:
​

Model

Nominal pressure
(KN)

Worktable Length
(mm)

Columns Distance
(mm)

ThroatSliderMaxMainDimension
DepthStrokeOpenmotorL x W x H
(mm)(mm)heightPower(mm)
(mm)(KW)
WC67Y/K-30/1600300160012802008019031700×900×1650
WC67Y/K-30/2000300200012802008019031700×900×1650
WC67Y/K-40/2500400250019002801003205.52600×1100×1900
WC67Y/K-63/2500630250019003501703805.53100×1450×2050
WC67Y/K-80/3200800320027003501703807.53500×1550×2100
WC67Y/K-100/32001000320027004002004207.53500×1580×2400
WC67Y/K-160/3200160032002700400200420113500×1650×2550
WC67Y/K-200/3200200032002700400200420153500×1680×2550
WC67Y/K-250/3200250032002700400200420153500×1700×2600
WC67Y/K-320/3200320032002700400200420223500×1800×2730
WC67Y/K-400/4000400040003500500320600304300×2450×3500
WC67Y/K-500/5000500050003900500320600375400×2810×4300
WC67Y/K-500/6000500060004900500320600376500×2810×4300
WC67Y/K-500/7000500070004900500320600377500×2810×4900
WC67Y/K-600/5000600050003900500320600455500×2910×4900
WC67Y/K-600/6000600060004900500320600456500×2910×5100
WC67Y/K-600/7000600070005900500320600457500×2910×5200
WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
WC67Y/K-800/8000800080006900600400600558500×2750×5900
WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
WC67Y/K-1200/800012000800069006004008002×378500×3100×7150


Packing Detail:

☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Our Service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
