Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto
Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto
Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto
Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto
Specifications
Brand Name :
Aoxuanzg
Model Number :
JF21-63T
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
$19000-$47000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
50-60 days
Packaging Details :
Standard export packing
Application :
Aluminum foil meal box, coffee capsule, cake cup, roast chicken plate, barbecue box
Shape :
Round, square, abnormity
Voltage :
220V/380V/415V Customized
Automatic :
Semi automatic /Full automatic
Modle :
JF21-63T
Brand :
Aoxuanzg
Description

Professional Full-auto Semi-auto JF21-63T Aluminium Foil Big Dinner Box Cups Forming Making Machine

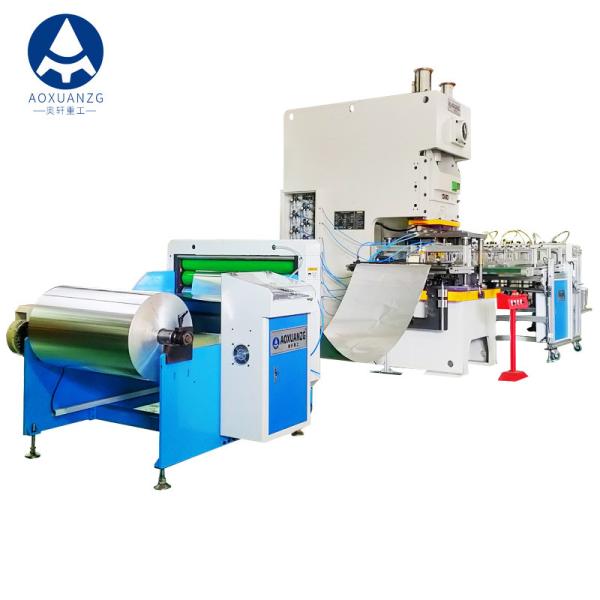

The whole line includes:

Aluminum foil coil - unwinding machine - air press ---- Mold - conveyor - collecting table - packaging

1) Aluminum foil box machine adopts a large number of imported brand electronic components, such as Siemens PLC, servo motor, etc., to ensure accurate and stable operation of the machine.

2) The feeder is equipped with automatic lubrication device, which can automatically lubricate aluminum foil. The foil feeder provides the correct amount and length of foil and is controlled by Siemens servo system to ensure high precision stepping.

3) The machine is equipped with mold lifting device, easy to replace the mold.

4) We can design and manufacture machines according to customers' requirements and target prices.

Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto

Automatic Feeder(with lubricating system):
Max. Material Roll Dia.: 750mm
Max. Material Roll Width: 750mm
Feeding Speed:10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 5Kw
Voltage: 380V/220V
Weight:1.5T
Dimension: 1400x1400x1300mm (L*W*H)
Length Controller:800x820x650mm (L*W*H)
Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto

Automatic stacker (container collector)

Function: Automatic stacker is an auxiliary system for collecting containers.

1. Variable frequency speed regulation of conveyor.

2. Automatic counting function.

3. Anti-collision function of container platform.

4. It can be connected to production line linkage or single machine. Use touch screen and PLC computer control.

The lifting platform adopts step lifting platform and ball screw lifting platform. The number of stacking platform is controlled by PLC.

8. Pneumatic control table cutting.

Aluminium Foil Big Dinner Box Cup Forming Machine Full / Semi Auto

Technical parameter

ITEM
Unit
45T
63T
Nominal Pressure
kn
450
630
Slide Stroke Per Minutes
s.p.m
40-70
40-70
Maximum Mold Set Height
mm
450
450
Slide Adjustment
mm
60
80
Slide Bottom Size
mm
340*410
340*410
Bolster Size
mm
800*900
1100*1000
Throat Depth
mm
400
500
Total Power
kw
5.5
7.5
Weight
kg
5500
8500
Dimension
mm
1700*1200*3100
2200*1450*3400

For more information, please contact me (^o^)/~
