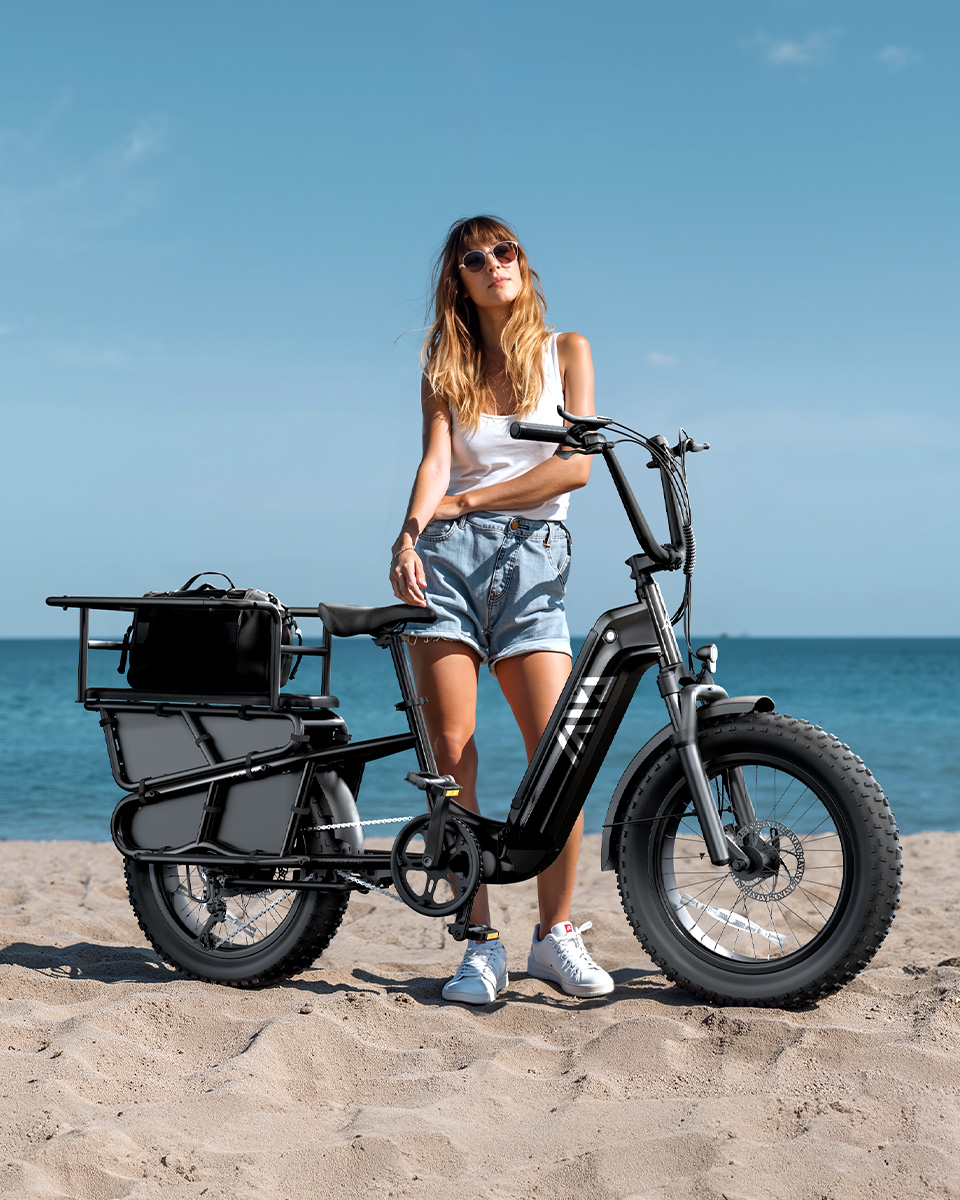

Cargao 20''*3.0 1500W Full Suspension Electric Bike Moped-style 48v 1500W Brushless Power Supply 48v Lithium Battery Fat Tire

Specifications

Place of Origin :

Guangdong, China

Brand Name :

Yeestep

Model Number :

K008

Gears :

7 Speed

Range per Power :

> 60 km

Frame Material :

Carbon Steel

Wheel Size :

20"

Max Speed :

30-50Km/h

Voltage :

48 V

Power Supply :

Lithium Battery

Braking System :

Disc Brake

Torque :

80-90 Nm

Charging Time :

5-8H

Motor position :

Rear Hub Motor

Battery Position :

Down Tube

Packaging :

100

Battery Capacity :

15AH, 15AH

Watt-Hour :

1500W

Special Feature :

Lightweight

Driven Type :

Electric

motor :

Brushless

Motor Power :

750-1500W

Suspension Type :

Rear

Power Source :

Lithium Battery

Gear Shifter Type :

thumb shifter

Tire :

20x3.0inch

MOQ :

Price :

R$2,139.54-2,491.10

Description

Product Description

Specification

Ride Condition（Age)	14+ years old
Max loading	204KG

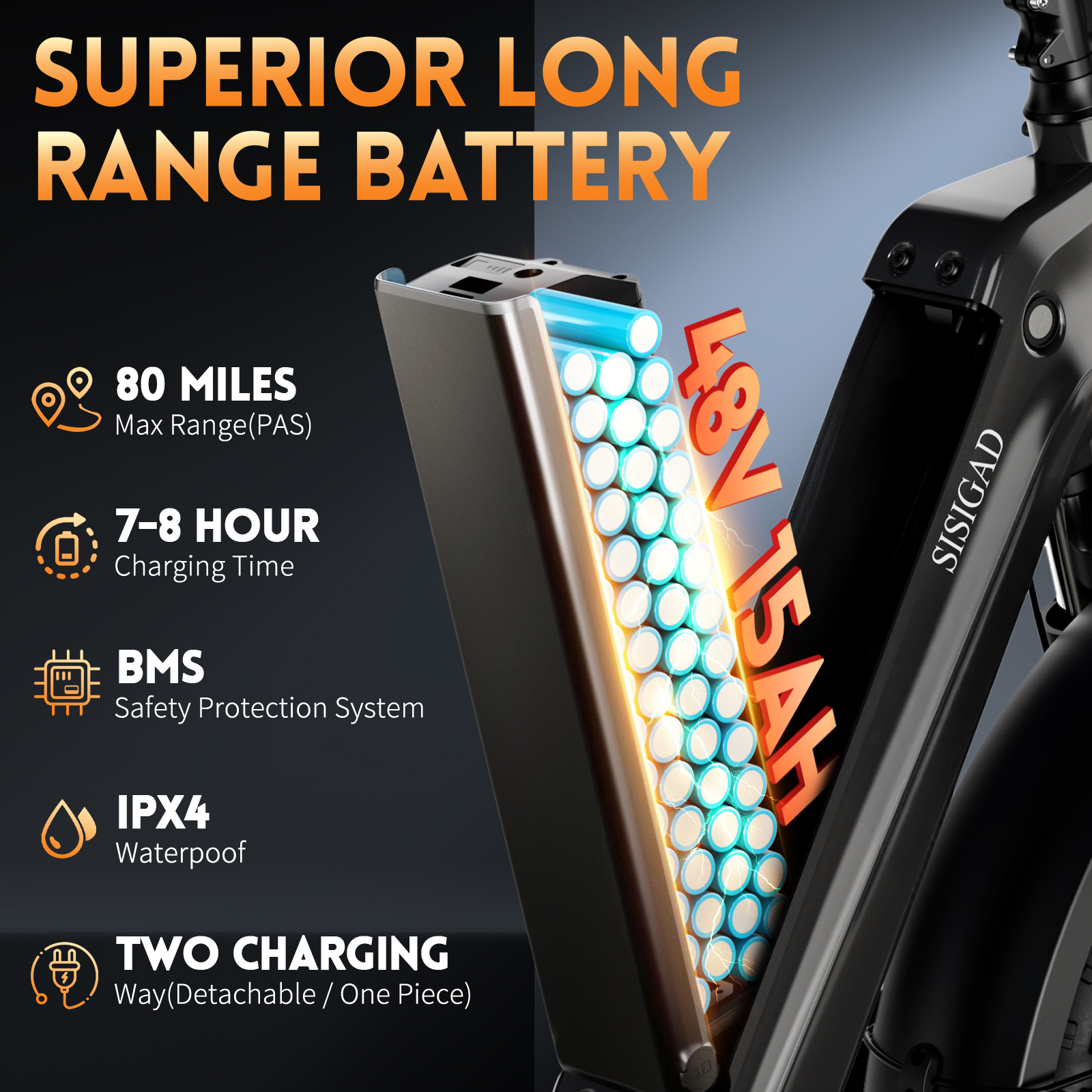

Battery	48V 15AH
Motor Power (W)	Rated 750W Max 1200W
Adaptor	54.6V2A
Charging time	7.5~8 hours
Driving range Charge （65kg loading）	Pure Throttle：60km With Pedal：80km
Max Speed (KM/H)	Pure Throttle：32km/h Pedal Assist: adjusted to 45km/h by app
Brake system	Electronic brake+ Mechanical Disc Brake

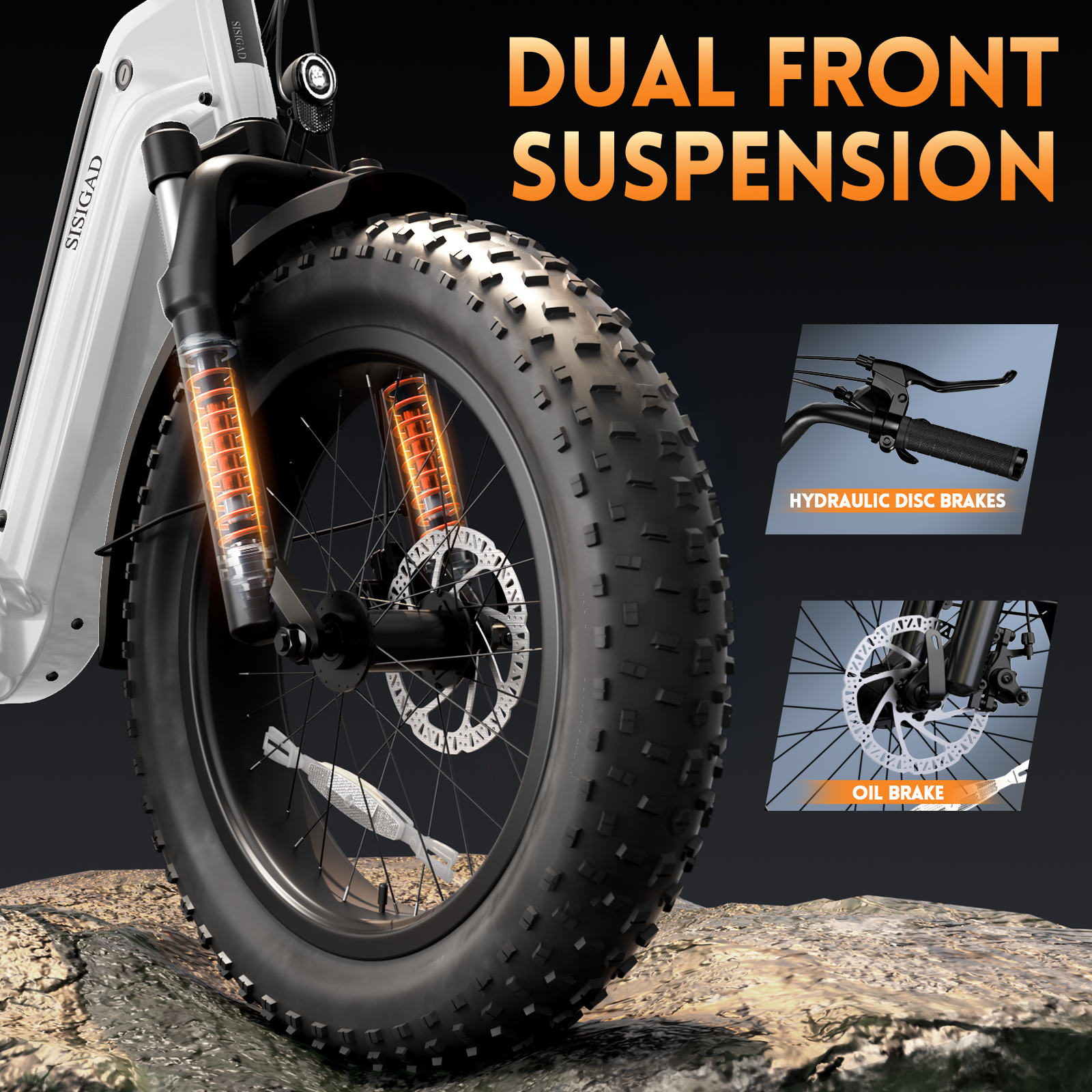

Suspension system	Front suspension fork
Front LED light	Yes
Rear LED Light	Only reflector
Tire	Tire Size: 20*3" tire Front wheel: Air tire Rear wheel: Air tire
Frame	Metal
Bell	Optional with extra cost
Derailleur	7 speed
Fender	Yes
Rear Rack	Yes
Front Basket	Optional with extra cost
Rear Basket	Optional with extra cost
Max Climbing	30°

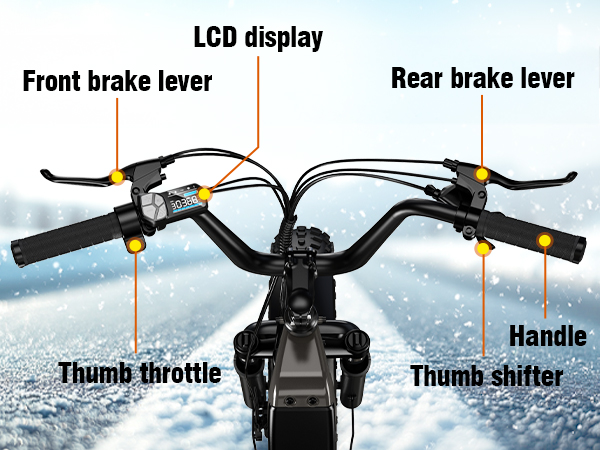

LCD screen (Y/N)	Yes
App	Yes
Speed Adjustment	Press the Button to switch the Gear with 6 levels + 7 speed derailleur level 0: 0km/h(Pedestrian mode 6km/h), level 1: 13km/h, level 2: 18km/h， level 3: 23km/h， level 4: 27km/h， level 5: 32km/h(locked mode), 45km/h(unlocked mode)
Product unfold Size	18986761197mm
Product fold Size	N/A
Master carton Size	1590315810mm
Package	Single master carton*1
Net Weight /pcs (KG)	42.40
Gross Weight /pcs (KG)	49.20
Loading Qty (40HQ )	216
Payment Terms	deposit+T/T before shipment

Company Profile

Company Introduction

Since 2005, Yeestep Technology has manufactured and exported electronics under the Uni-sun and Uni-chic names. In 2020, we pivoted to electric bicycles, becoming an early large-scale Chinese e-bike maker. Our product range now covers e-bikes, e-motorcycles, e-scooters, and hoverboards, with over 50 models from entry-level to premium. We operate top U.S. e-mobility brands and offer global OEM & ODM services with brand standards. Our in-house PCBA and battery production ensures stable supply of key components. Rigorous testing ensures a defect rate well below industry average. With strong R&D and production scale, we support medium and large clients, while overseas warehouses allow fast delivery for smaller orders. Experience our products—let’s collaborate and shape the future of e-mobility.

Packing & Delivery

FAQ

1)Are you a factory or trading company?
We are an Integration of industry and trade company.

2) Do you accept small orders ?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking
forward to co-work with you for a long term relationship.

3) How about the price? Can you make it cheaper ?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.

4) Do you offer free samples ?
Yes, we support the free samples with big orders.

5) Do you accept Customization ?
Yes,we can do OEM and ODM for our customers.

6) What are your payment terms ? any third party payment ?
We usually accept T/T, trade assurance, Western Union, Paypal and L/C.

7) Can I visit your company and factory in China?
Sure. You are very welcomed to visit our company in Guangdong and Zhejiang, China.

8) How Can I place an order ?
You could directly place an order via , and sure you could just send us inquiry to any of our sales representatives to get detailed order information, and we will explain the detail process.

9) What is your delivery time?
If we have it in stock, we will arrange it within 7 days. If we don’t have, we need arrange production, it is about 15~25 days.
