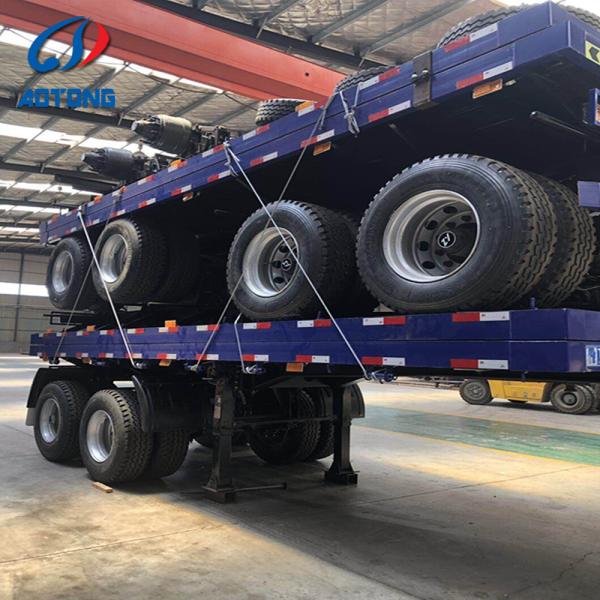

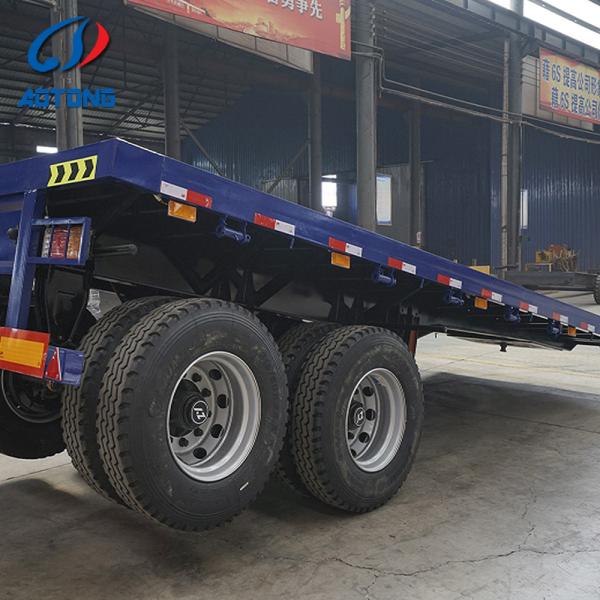

30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description



Flatbed trailer are suitable for transporting heavy-duty vehicles such as tractors, special vehicles,
rail vehicles, mining machinery, forestry machinery, and other heavily loaded goods. This kind of
trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to
pass through height limit roads.

About the main configuration: The configuration will be designed by our engineers in accordance
with clients’ requirements. We choose reliable tires, such as Triangle, Linglong and other China’s
famous brands, which are optional. We also adopt celebrated
axle brands, such as Fuwa and BPW.


The standard size of our flat bed semi-trailer is 13.5×3×1.65 meters, the upper plate is 14 mm thick,

the bottom plate is 16 mm thick, the middle plate is 10 mm thick and the platform plate is 4 mm thick,

which ensures the stability of transportation and is suitable for carrying all kinds of construction

machinery, large-scale equipment and steel, etc.


item
value
Overall Dimension
(Lx W x H) (mm)
13000 * 3000 * 1650 mm
Tare Weight (KG)
9,000
Loading Weight (KG)
60 ton common good or 30-40 ton vehicles or machinery with wheels or tracks (concentrated stress on the trailer)
Wheel Base (mm)
6880 mm+ 1310 mm+ 1310 mm
Platform plate
4 mm Diamond plate
The material of Main beam
The height of the beam is 500 mm, upper plate is 16mm, down plate is 18 mm, middle plate is 10 mm. Q345B carbon steel


30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery


30-50 Ton 2-Axle Steel Flatbed Semi Trailer for Heavy Machinery

Frequently Asked Questions (FAQ):

Q:Does your company has your own factory?

A: Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous

where is manufacturing various trailers in Shan Dong,China.

Q: What is your minimum order quantity?

A: One unit

Q: Can you satisfy my special requirement?

A: Definitely!We can make the trailers based on your requirement.

Q:What logistics methods can you use for transportation?

A: We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

Q: Do you have any other services?
A: Our company's aim is to give you satisfaction, our services include the best price, shipping and packaging,

booking the cargo hold, and helping you buy parts.

Contact Us:

Send your enquiry to start the first step of our cooperation.

Our team of experts is here to assist you every step of the way.

E-Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

More than 30 years of trailer manufacturing experience deserves your trust.
