Specifications
Condition :
New
Steering :
Left
Horsepower :
351 - 450hp
Emission Standard :
Euro 2
Segement :
Heavy truck
Market Segement :
Logistics transportation
Engine Brand :
WEICHAI
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
10
Transmission Type :
Manual
Forward Shift Number :
10
Reverse Shift Number :
2
Maximum Torque(Nm) :
≤500Nm
Size :
6800x2496x2958
Gross Vehicle Weight :
6800 kg
Drive Wheel :
6x4
Passengers :
2
Seat Rows :
Single row
Rear Camera :
360°
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
Yes
Touch Screen :
Yes
Multimedia System :
Yes
Window :
Automatic
Air Conditioner :
Automatic
After-sales Service Provided :
Onsite Installation, Video technical support, Overseas Call Centers, Online support
Engine :
WD615.47
Tire :
295/80R 22.5 315/80R 22.5 12.00R20
Driving type :
6*4
Transmission :
HW19710
Cabin :
HW76 Comfortable Cabin

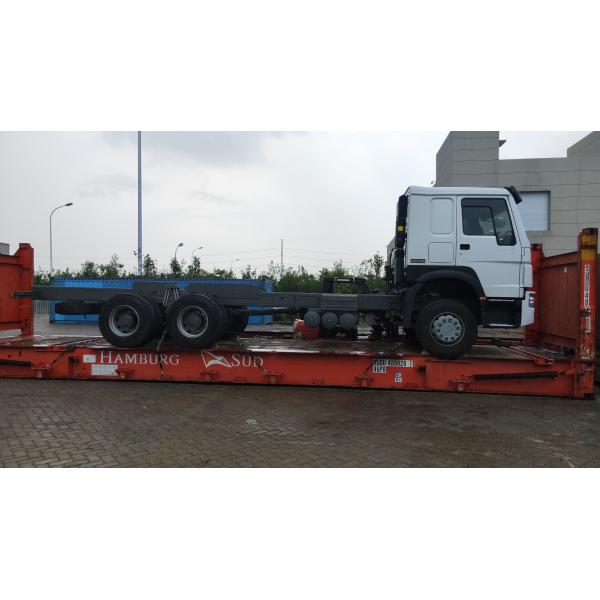

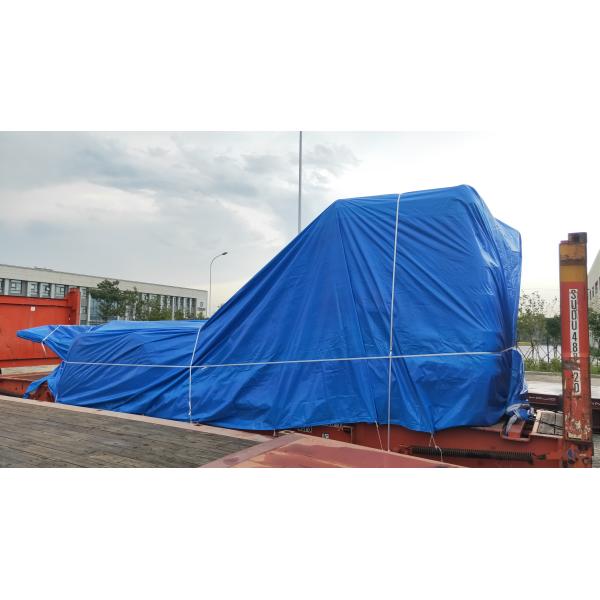

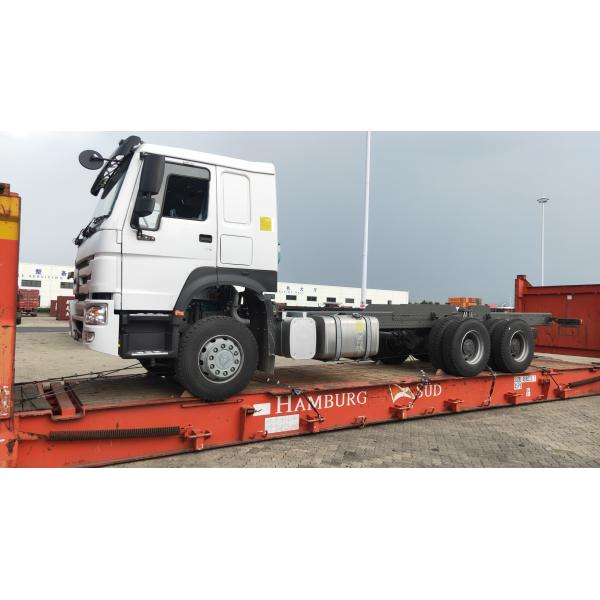

Packaging Details :
In nude,Polish with water wax before shipment
1 By 40ft/45ft/40fr container
2 By bulk /roro ship
3 As your requirments.
Professional package saves freight cost for customers
Guarantee the firmness and safety of the goods
Supply Ability :
100000 Unit/Units per Year
Price :
$36,500.00/units 1-2 units
Description

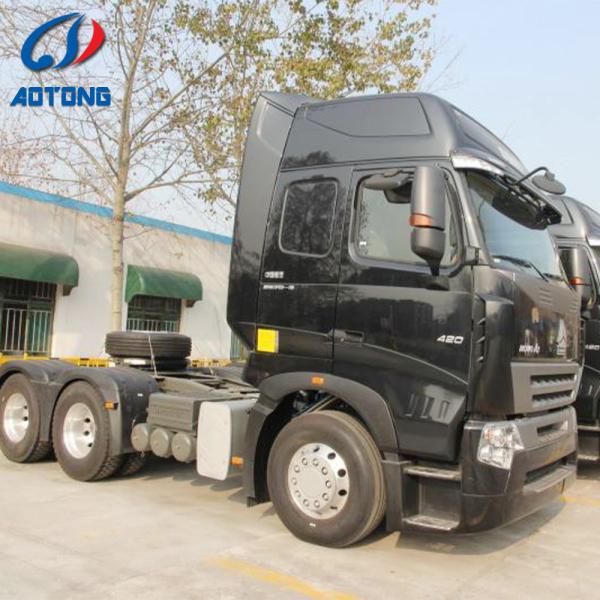

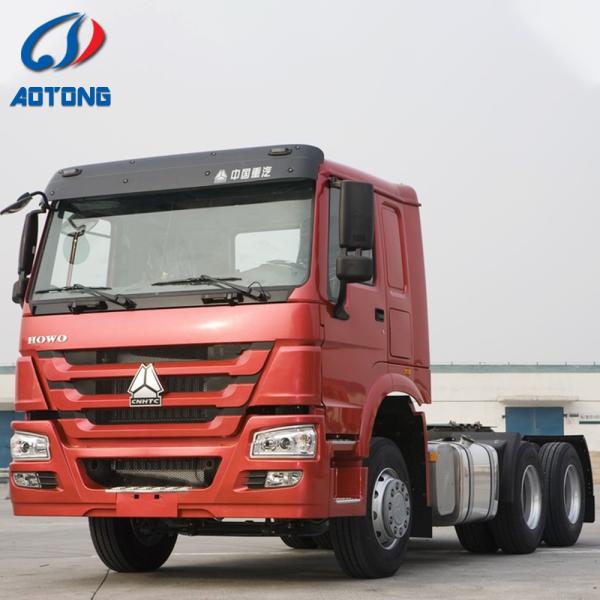

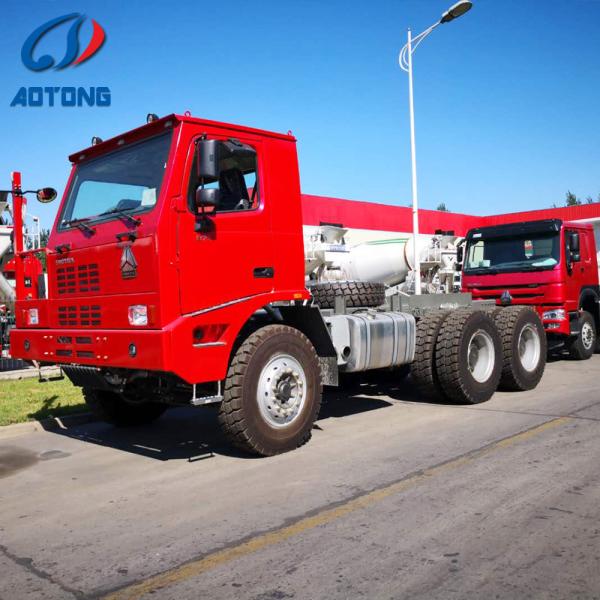

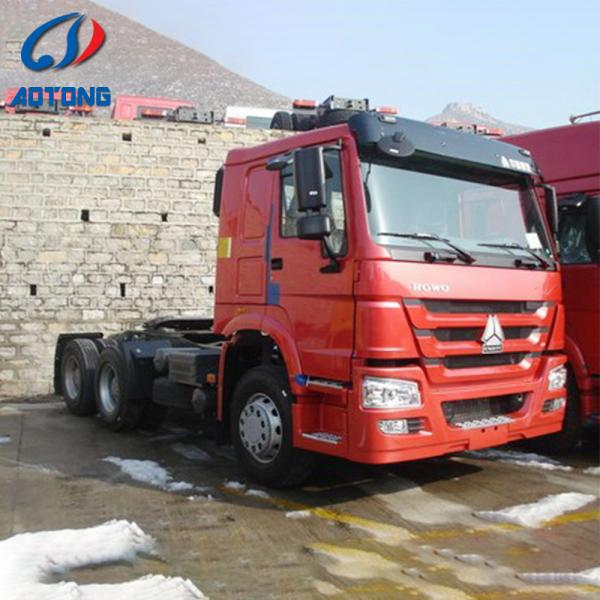

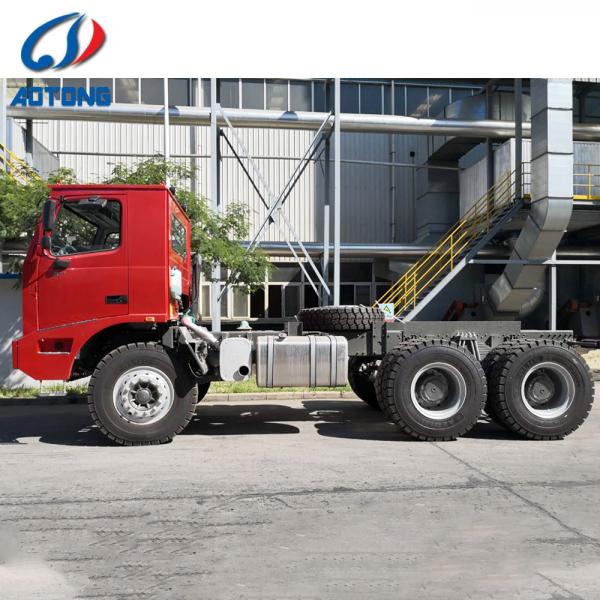

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Truck Model ZZ4257S3241
Driving Style Left/Right Hand Driving
Dimension(Lx W xH)(unloaded)(mm) 6800x2496x2958
Approaching angle/Departure angle(°) 16/70
Overhang(front/rear) (mm) 1500/725
Wheel base (mm) 3225+1350
Front track/ Rear track(mm) 2022/1830/1830mm
Max speed(km/h) 101
Curb weight(kg) 9180
Loading Weight(kg) 25000
Engine Model Model WD615.47, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Engine Fuel type Diesel
Engine Horse Power, max(kw/rpm) 371HP
Engine Emission EURO II
Fuel tanker capacity (L) 400L
Clutch Φ430 pull-type diaphragm spring clutch
Transmission Model HW19710, 10 forwards and 2 reverse
Brake system-Service brake Dual circuit compressed air brake
Brake system-Parking brake spring energy, compressed air operating on rear wheels
Brake system-Auxiliary brake Engine exhaust brake
Steering system Model ZF8098 hydraulic steering with power assistance
Front axle HF9, 9 tons loading capacity
Rear axle HC16, 16 tons loading capacity
Color optional
Tire 1200R20, 10+1pcs
Electrical system-Battery 2X12V/165Ah
Electrical system-Alternator 28V-1500kw
Electrical system-Starter 7.5Kw/24V
Cab HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc.

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HPLogistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Company Information

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Factory strength:

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
CNC Flame Plasma Cutting Machine GS 2 4.0 Acceptable
Press Machine JC21-160 4 4.0 Acceptable
Hydraulic Plate Bender WC67Y-200/4000 2 3.0 Acceptable
Hydraulic Pendulum Plate Shears QC12Y-12*3200 2 3.0 Acceptable
Drilling Machine with Jointed Arm ZN3050*16 4 4.0 Acceptable
Shaping Machine BS6065 2 4.0 Acceptable
Universal Rotary Milling Machine X6232 1 4.0 Acceptable
CNC Lathe EL6140N 2 4.0 Acceptable
Saw Machine GD4028N 2 5.0 Acceptable
Expander ZX-3000 1 3.0 Acceptable
Rolling Machine W11-4-200 2 3.0 Acceptable
Automatic Round Welding Machine W11SNC-10-6500 1 4.0 Acceptable

Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Vernier Caliper 0.02 mm 2 3.0 Acceptable
Ultrasonic Thickness Gauge SMART SENSOR 1 3.0 Acceptable
Sound Level Meter AZ8928 1 3.0 Acceptable
