Tandem trailer dolly 3 axles 20ft container interlink skeleton super link trailer for Madagascar
Usage For transporting 2*20FT containers
Tyre specifications 12R22.5 Tri-angle
Rims 9.00-25
No. Of the axles 2 +2 FUWA BRAND
Suspension Steel leaf spring suspension
Connected dimensions 14250×2500×1579(mm)
Brake system: WABCO RE 8 relay valve; spring brake chamber; air tanks; two pair of standard copper air-connector.
ABS :WABCO ABS
Electrical: 24V 7 ways (7 wire harness)
Water reservoir Carbon steel with spraying system .300L+300L
Painting Sand blasting
Accessory One tooling boxes with one set of tools
Spare wheel carrier 1 with spare tires

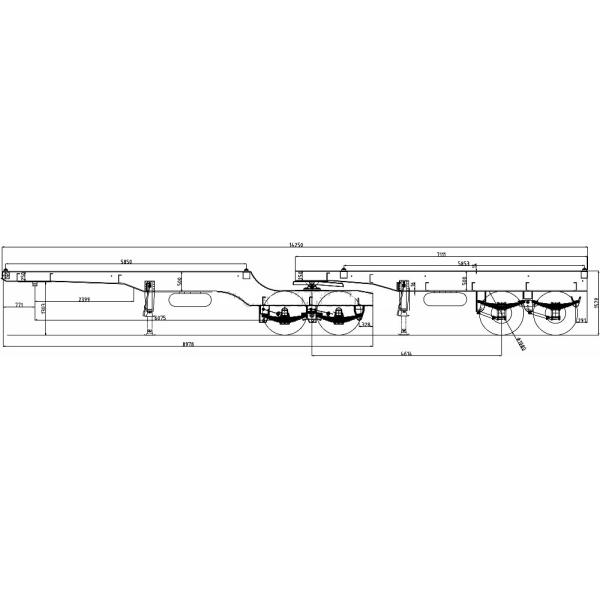

Drawing for the 2+2 tandem skeleton container semi trailer for 20ft container transporting

Super link skeleton trailer for Madagascar with Water reservoir Carbon steel with spraying system .300L+300L

Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 1992 with more than 30 years exporting experience and well-equipped testing facilities and strong technical force. With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, Mozambique, Congo, Nigeria, Russia, etc. . Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
