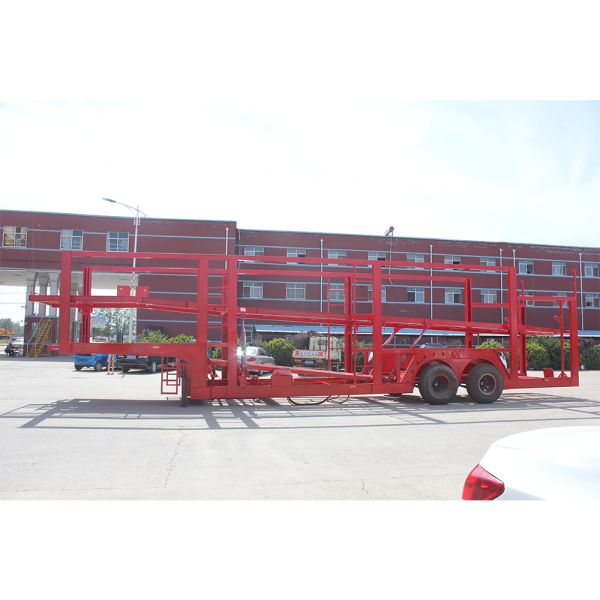

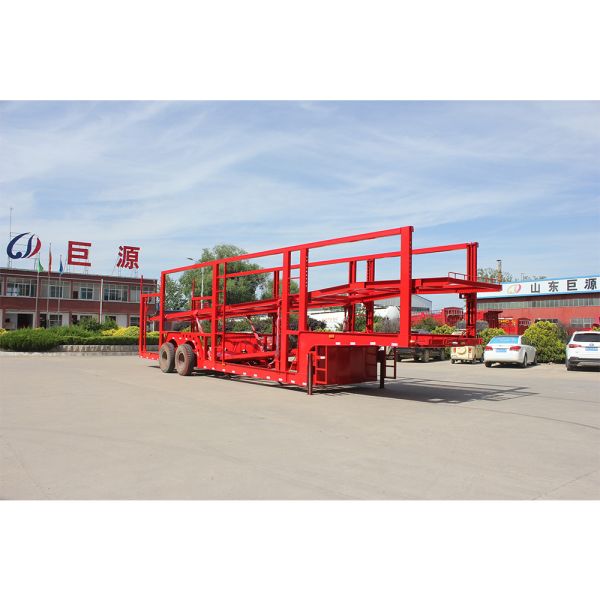

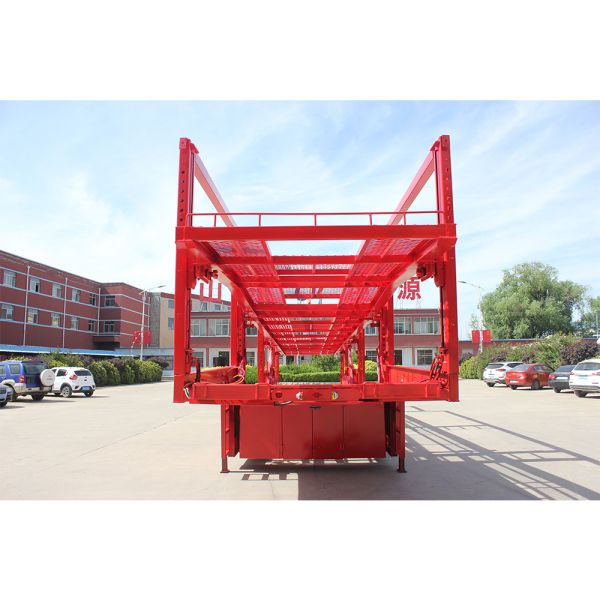

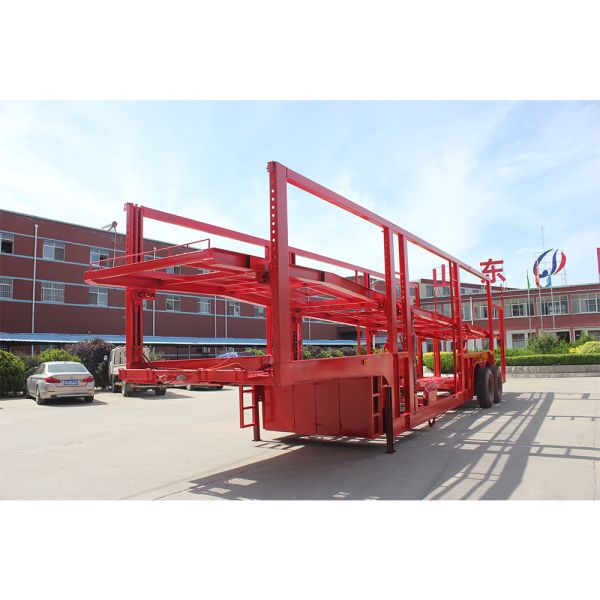

2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
2/3axle 6/8/10/12 Hydraulic/Screw Lifting SUV/Car Carrier Semi Trailer Hauler with Jump Board Truck Trailer Price
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
TT
Delivery Time :
25 days
Tire :
245/70R19.5
Length :
Customized Dimension
Capacity :
4-21 Units Cars
Landing Leg :
28T Two Speed
Brake :
Duel Line Brake System
Axle Brand :
FUWA/BPW Optional
Description


tems

Car carrier trailer

Car carrier trailer

Material Aluminum alloy, stainless steel, manganese steel (baking paint) manganese steel (galvanized)
Outside Dimensions (L*W*H) 14000mm-32000mm*2500mm-2600*3500mm
Rated Load 25T
Tare Weight 11.5T
Wheel Base variables+1310+1310 (mm)
Tires specification 255-75R19.5/275-65R17.5/295-65R17.5
No. of tires 6/8/12
Spare tire carriers 1 or 2
Axles
 Brand FUWA (BPW optional)
No. of axles: 2/3
Axle-load FUWA13T BPW12T/10T
Wheel rim 7.50-20 rim or 8.00
Suspension rigid suspension,10 pcs leaf-spring
Brakes brand WABCO brand
Brake chamber T30/30 double air chamber
System Dual line braking system /ABS
Main Beam material I beam ,Q345B, automatic submerged arc welded
specification Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam material Q235B Q345B Q345E MCK2 T700
Side beam Integrated bending beam
Plate form Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin JOST 50# or 90#
Landing gear JOST brand or homemade outriggers,
Accessory One tooling box with a set of standard trailer tool 4 side lights, 1 tail light, and several wearing parts
Voltage 24V
Receptacle 7 ways (7 wire harness)
Lights Front corner marker lamp :red ;reflector lamp :white
Side marker :orange
Rear lamp :red; rear reflector :white; turn single lamp :orange
