Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description
Details Images

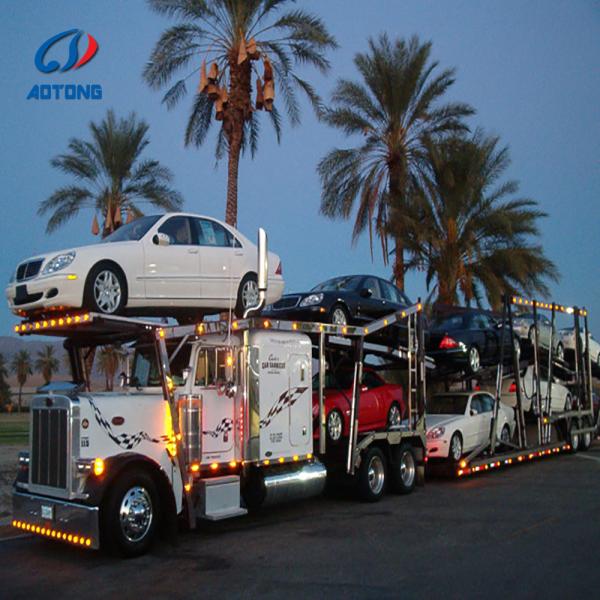

A car-carrying trailer, known variously as a car carrier trailer, car hauler, auto transport trailer, etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.
Modern car-carrying trailer can be open or enclosed. Most commercial trailers have built-in ramps for loading and off-loading cars, as well as power hydraulics to raise and lower ramps for stand-alone accessibility.
verall Dimension
15000mm*260mm*3000mm
Pay Load
For 7-10cars
Function
For car/vehicle transportation
Main Frame
350mm height l beam,Top Flange 10mm,Middle
Floor
3mm thickness
Axle
FUWA,BPW axle oroptional upon choice
Traction Pin
JOST 3.5"(90mm)
Landing gear
JOST 25T
Tire
11.0OR22.5
Spare Wheel Carrier
one set of spare wheel& tire carrier including a riser
Braking system
Dual line-air brake, piggyback spring on all axles;
four units of T30/30 spring brake chamber;
four lifting hydro-cylinder;
Three aircraft jump frames.
Electrical System
One unit of JAEGER POWAY,24V 7-pin ISo1185 standard socket;
Standard Tail lamp with turn signal, brake light &reflector,
Side lamp etc.One set of 6-core standard Cable
Painting
Sand blasting processing on rustproof protection.
one coat of anticorrosive primer,two coats of finish urethane paint,Color as customer choice.

Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers

Hydraulic Decks Cars Carrier Semi Trailer Vehicle Transporter Truck Trailers

Frequently Asked Questions
Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

  • Primary method: Shipping by container or ro-ro/bulk vessel
  • For neighboring countries: Road or rail transport
  • For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX


Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Contact Us

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com
Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
