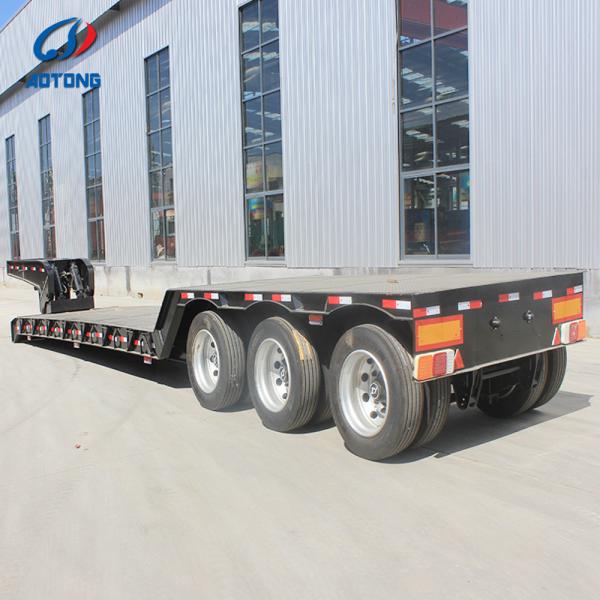

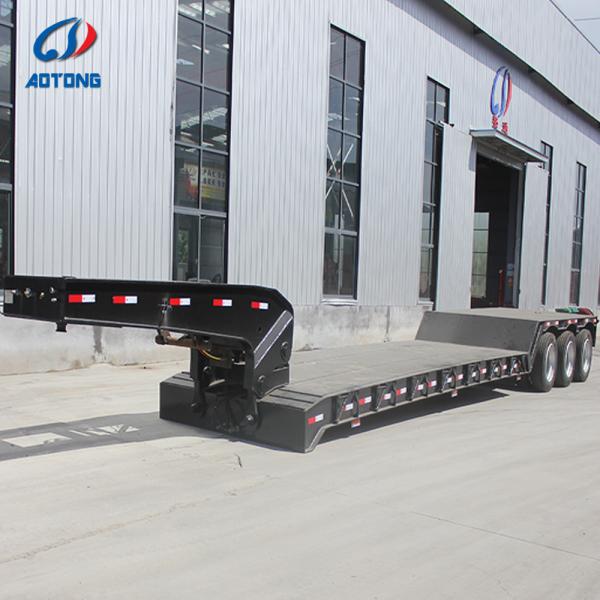

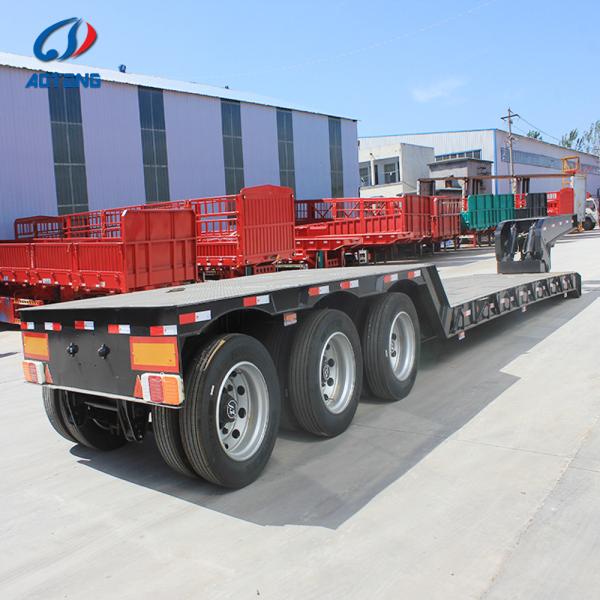

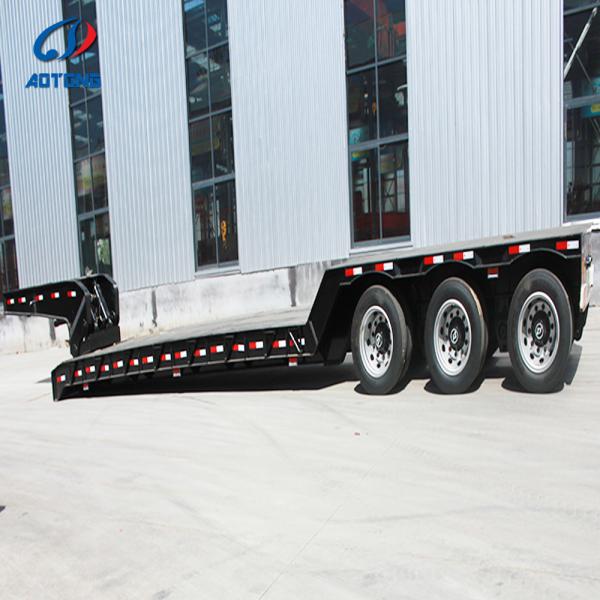

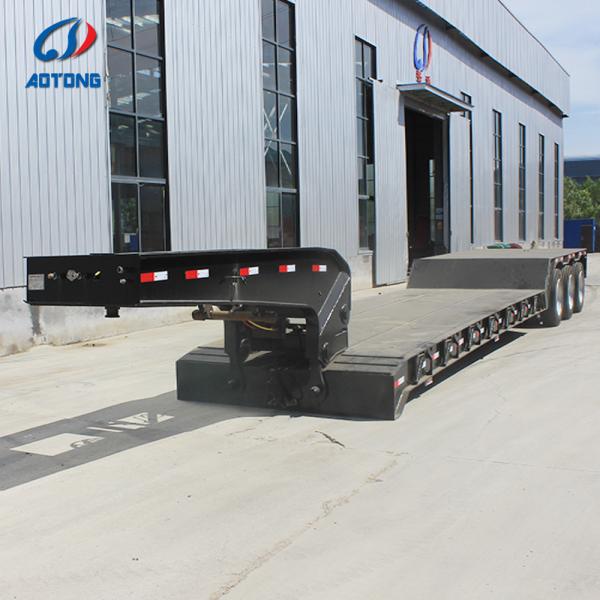

Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description
Size
18000mm*3000mm*1800mm (Size optional)
Payload
100T
Main beam
Heavy duty and extra durability designed I beam; opting for high tensile steel Q355B, welded by automatic submerged-Arc processes.
Top flange 18mm,width140mm;Middle Flange 6+6mm height 500mm;bottom flange 20mm,width 140mm.
Floor
4mm checkered plate+50mm wood floor.
Axle
4 axle jiangling brand 20T (Brand Optional).
Suspension
Mechanical suspension American type local brand (Optional).
Leaf spring
Leaf spring 10pcs*100*16mm (Optional).
Tire
12R22.5 18PR 16 (Brand and specs optional).
Wheel rim
9.0-22.5 16pcs (Brand and specs optional).
Kingpin
Factory standard assembly type 90#
Landing gear
without
Braking system
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks.
ABS
WABCO ABS
Lights
LED 8 side lights and 2 rear lights 2 width lamp.
Painting
Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2 coats of final painting.
Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm

Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm

Hydraulic Removable Gooseneck Lowboy Trailer 100T Payload 18000mm

Frequently Asked Questions
Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

  • Primary method: Shipping by container or ro-ro/bulk vessel
  • For neighboring countries: Road or rail transport
  • For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX


Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Contact Us

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com
Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
