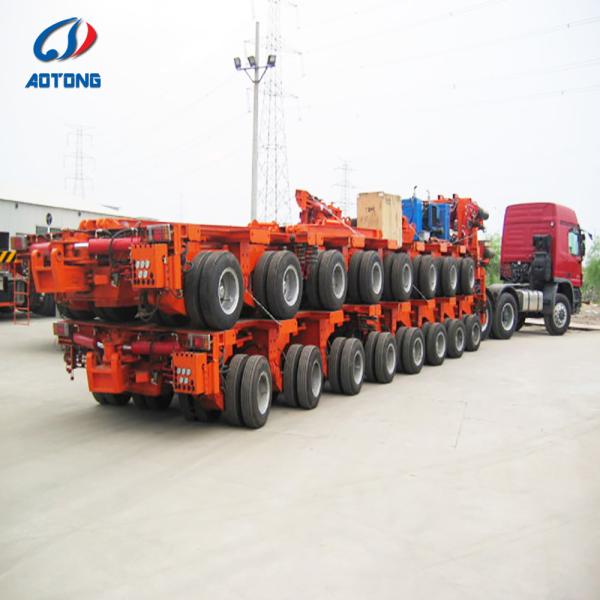

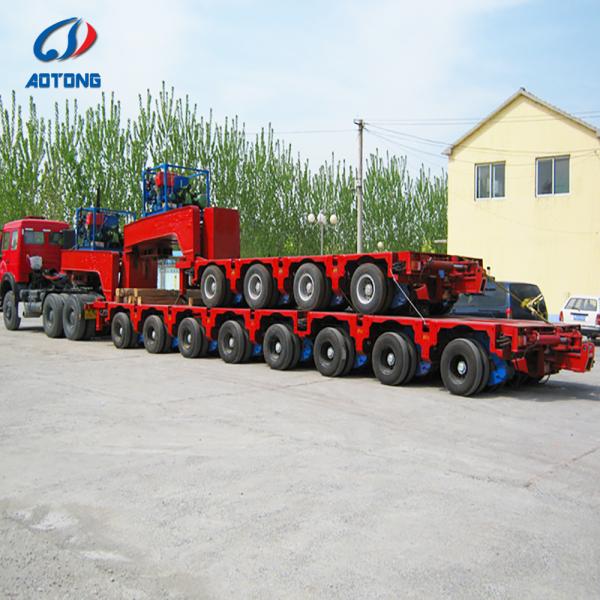

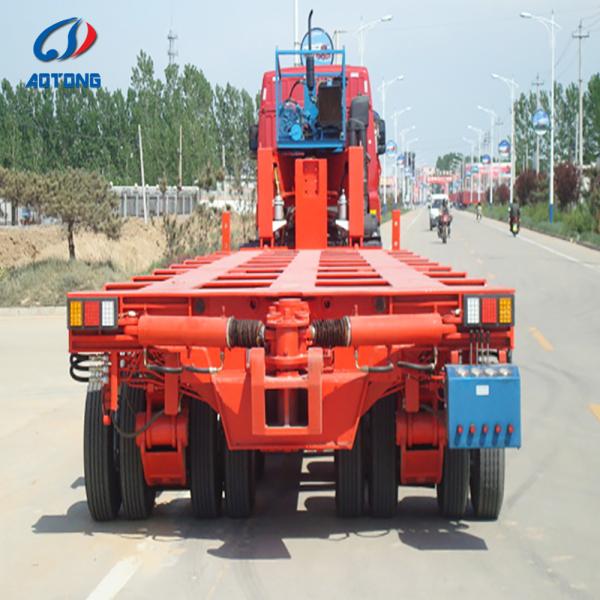

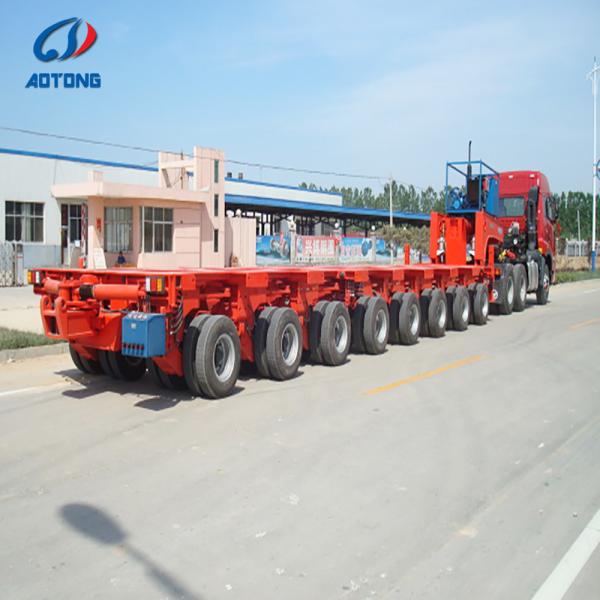

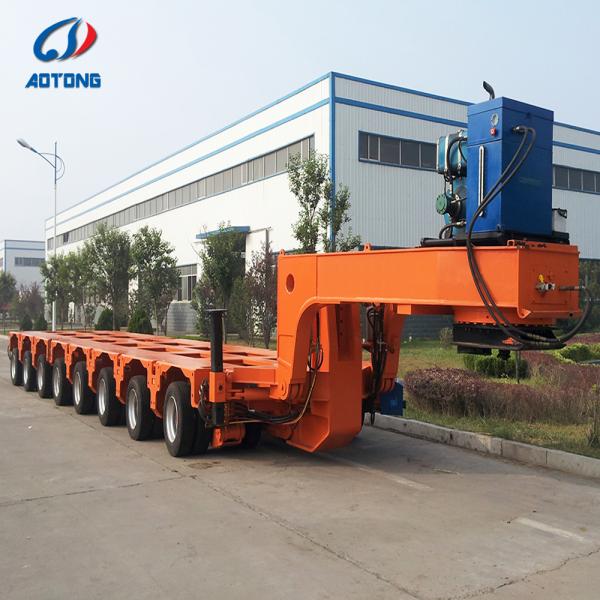

Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description

Rated Capacity

35000kgs /Row @ 0.6Km/h

Tare Weight

3100 kgs/Row

Material

S690, AH60, 40Cr high tensile Steel

Loading Deck Height

1175±300mm

Width of Platform

2990mm-3000mm

Max Steering Angle

+/-55°

Brake

Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake;

Electrical System

24V, 7core socket, lights according to European standards.

Wheelbase

1500mm

Tire

215/75R17.5

Rim

6.00-17.5 (10holes)

Approaching Angle

25°/ 28°

Suspension

Hydraulic Air suspension with lifting and steering / Axle Steering

Tire & Rims No /line

8 sets

Connection Platform

Optional by Cargo / Machine Size

Pin Height

According to the height of the tractor saddle.

Painting

Three coats painting; Any color will be available

Welding

automatic submerged arc welded

Lights

Rear light, rear reflector, turn indicative light, side

reflector, fog lamp, number plate light

Painting

Three coats painting; Any color will be available

Tool Box

One tool box with a set of standard trailer tools

Tyre Carrier

One piece

Electrical

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) Euro Standard

Exw-factory

Wax -spray

Color and Logo

Depends on the buyer’s requirement.

Product Production

New Made and Stock Optional

Tool Box

1 box of standard tools

Spare tire carrier

2 sets

Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension

Lowbed Semi Trailer 35000kgs Capacity with Hydraulic Air Suspension

Frequently Asked Questions
Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

  • Primary method: Shipping by container or ro-ro/bulk vessel
  • For neighboring countries: Road or rail transport
  • For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX


Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Contact Us

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com
Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
