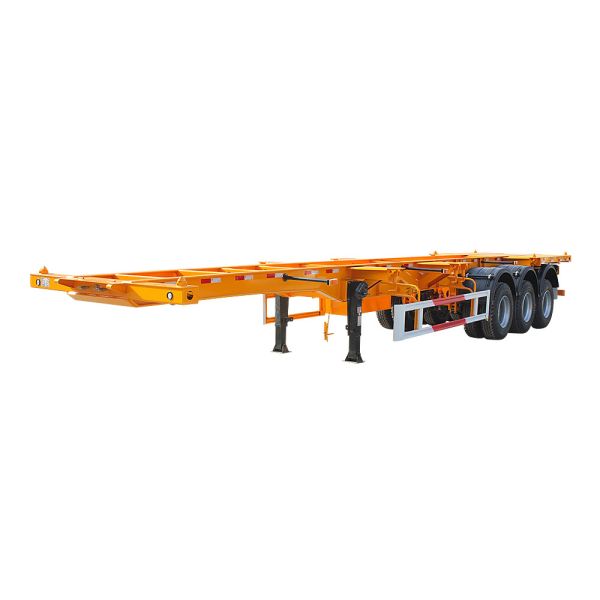

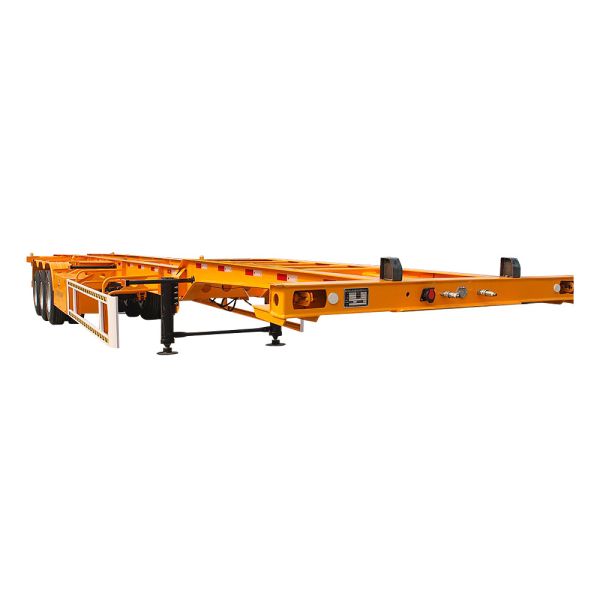

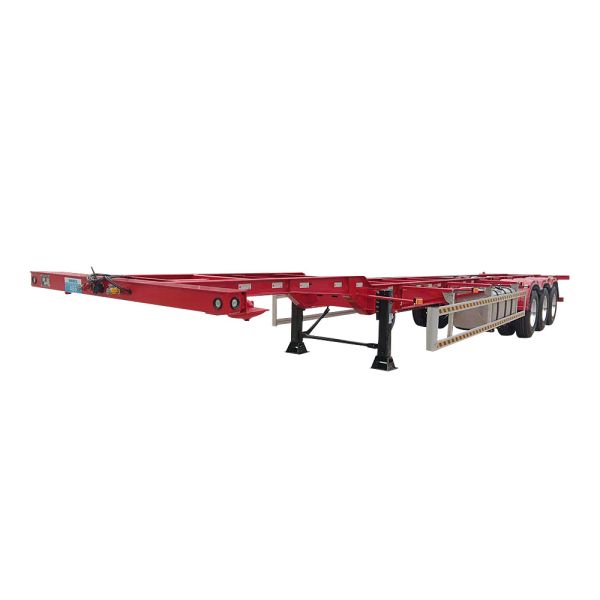

12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
12m Container Semi Trailer with 12500mmX250mmX1550mm Dimensions and 5-6.5T Tare Weight for Heavy Duty Transport
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description



Semi trailer Dimension 12500mmX250mmX1550mm
Tare weight 5-6.5T
payload 30-60TT
Twist Lock 12PCS
Main beam Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm
Axle 3 axles, 13Ton Fuwa/BPW/YUEK brand 16ton brake pads
Landing Gear 28T lifting capacity with two speed
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical/Bogie/Air Suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer
Pneumatic Braking System Dual line pneumatic brake system,T30 air chamber ,40L air tanks, WABCO Emergency relay valve
Rim 9.0-20*12 pcs
Tire 12R22.5*12 pcs
Accessories One standard tool box
Spare tire rack One
Electrical system 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
