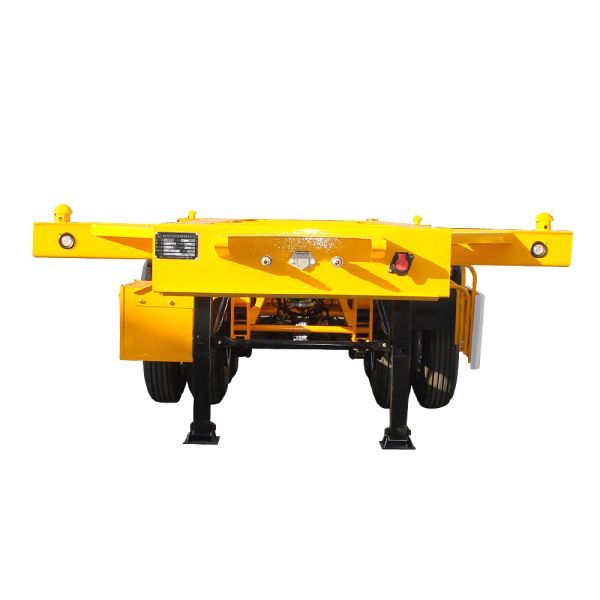

2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Semi Trailer with 12R22.5 Tyre and Heavy Duty I Beam
Specifications
Brand Name :
AOTONG
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Export standard
Suspension :
Mechanical Or Air Suspension
Tyre Specifications :
12R22.5
Main beam :
Heavy duty I beam.
Kin pin :
2’’/3.5’’ bolt type
Braking system :
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical :
LED light , 7 ways ,24V
Painting :
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Description

Gross Weight

About 6.8tons ~ 4.5tons

Outer side dimension

(mm)

12450 × 2490 × 1557 (three or two axles) 40FT

7160 × 2490 × 1557 (two axles) 20FT

Loading Capacity (Ton)

≤ 45 T (40FT) ≤30T (20FT)

AXLES

13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand

Tire

12.00R22.5 or 315/80R22.5

China Brand or According to Customer requirement

Rim

9.00-22.5 China Brand

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

down plate is 16mm ; Material is Q345B Steel .

Side beam

16mm or 18mm channel steel ( Material is Q235steel ).

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)

Valve

WABCO valve

ABS

Optional

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

Transport by bulk cargo carrier, RORO or 40HQ container.
