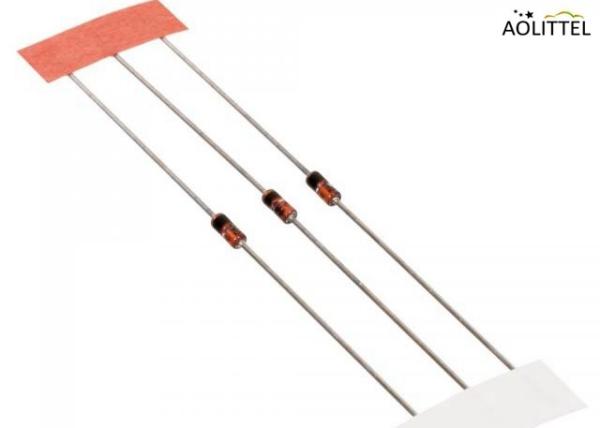

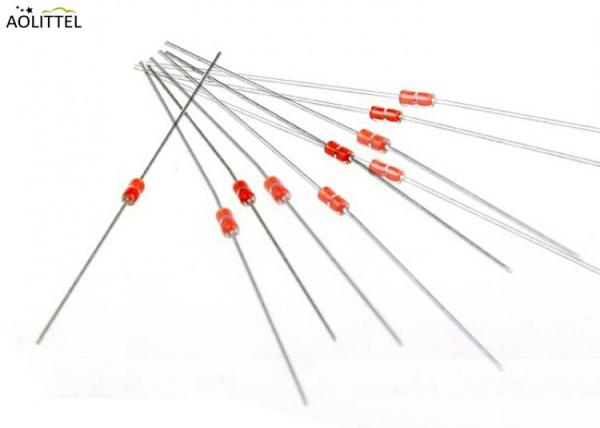

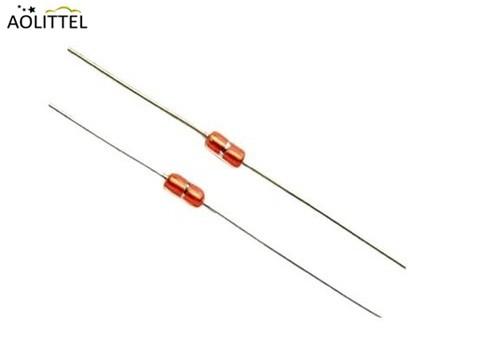

Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Specifications
Brand Name :
Ao littel
Model Number :
LPT-KTY83-110F
Place of Origin :
CHINA
MOQ :
1000 Piece
Price :
USD 0.6 to 1 Per Piece
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1,000,000 Piece/Month
Delivery Time :
10 Workdays
Packaging Details :
Bulk,500pcs/bag Tape,5000pcs/box
Product Category :
PTC Thermistor 1KOhm
Packaging :
Bulk (Default) / Tape
Thermal Time Constant :
0.5 (Flowing Liquid) s, 1 (Still Liquid) s, 20 (Air) s
Resistance @ 25 °C :
1 kΩ
Application :
Control, Measurement
Maximum Operating Temperature :
+150°C
Minimum Operating Temperature :
-55°C
Mounting Type :
Through Hole
Package / Case :
DO-204AG, DO-34, Axial
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Free Status / RoHS Status :
Lead free / RoHS Compliant
Temperature coefficient α25 :
0.76 % / K
Dissipation Factor :
1.5mW/C
Insulation resistance :
100 MOhm (100VDC)
Maximum operating current :
8mA
Rated operating current :
2mA
Rated Power :
50mW
Unit Weight :
0.1g
Description

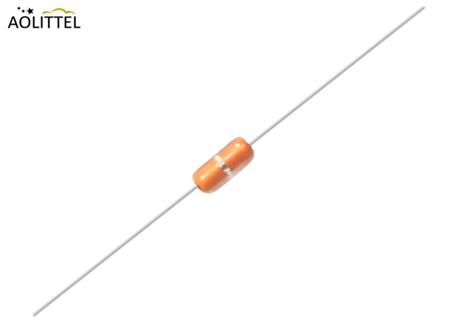

Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor

General

Ao littel PTC Thermistor LPT-KTY83-110F are perfect to be applied as temperature sensing devices in measurement / control systems. Also non-linear, they performed highly repeatable, predictable and stable resistance versus temperature characteristics. Ao littel PTC Thermistor LPT-KTY83-110F have a wide operating range and long operating life and are available in various package styles and initial tolerances.

______________________________________________________________________________Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor Download________

Fail-safe positive temperature coefficient
Semi-logarithmic R/T characteristic
Close resistance tolerance (KTY81/110 = ±1%)

Ao littel PTC Thermistor LPT-KTY83-110F have a positive temperature coefficient of
resistance and are suitable for use in measurement and control systems. Ao littel PTC Thermistor LPT-KTY83-110F are encapsulated in the SOD68 (DO-34) package.
Other special selections are available on request

Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Features
Excellent precision and reliability
Long-term stability
Non-linear characteristics
Tape and bulk
Dimension in mm
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
NO COMPONENT MATERIAL AND SPECIFICATIONS Q'TY
2-1. Tinned Dumet Wire Copper-Clad Ni-Fe 0.5mm 2
2-2. Element Chip (Silicon) 1
2-3. Housing OD Ф2.0mmmax , ID Ф0.8±0.05mm 1　

Specification

NO Item Sign Test Conditions Min. Normal value Max. Unit
3-1. Resistance at 25℃ R25 Ta=25±0.05℃ 990 1000 1010 Ω
3-2. Resistance at 100℃ R100 Ta=100±0.05℃ / / / Ω
3-3. Dissipation factor σ

Ta=25±0.5℃

(In still air)

 1.5 / / mw/℃
3-4. Time constant τ / / 17 sec
3-5. Insulation resistance / 100V DC 100 / / MΩ
3-6. Maximum operating current Imax / / / 8 mA
3-7. Rated operating current IN / / 2 / mA
3-8. Rated Power Pmax / / / 50 mW
3-9. Operating temp.range TA / -55 / +150 ℃

R/T Characteristics

Centigrade

(℃)

Fahrenheit

(℉)

T/℃

%/(K)

 LPT-KTY83-110F

DR

(K)
Resistance(Ω)
Min. Center Max.
-55 -67 0.99 475 490 505 ±3.02
-50 -58 0.98 500 515 530 ±2.92
-40 -40 0.96 552 567 582 ±2.74
-30 -22 0.93 609 624 638 ±2.55
-20 -4 0.91 669 684 698 ±2.35
-10 14 0.88 733 747 761 ±2.14
0 32 0.85 802 815 828 ±1.91
10 50 0.83 874 886 898 ±1.67
20 68 0.80 950 961 972 ±1.41
25 77 0.79 990 1000 1010 ±1.27
30 86 0.78 1029 1040 1051 ±1.39
40 104 0.75 1108 1122 1136 ±1.64
50 122 0.73 1192 1209 1225 ±1.91
60 140 0.71 1278 1299 1319 ±2.19
70 158 0.69 1369 1392 1416 ±2.49
80 176 0.67 1462 1490 1518 ±2.8
90 194 0.65 1559 1591 1623 ±3.12
100 212 0.63 1659 1696 1733 ±3.46
110 230 0.61 1762 1805 1847 ±3.83
120 248 0.58 1867 1915 1963 ±4.33
125 257 0.55 1919 1970 2020 ±4.66
130 266 0.52 1970 2023 2077 ±5.07
140 284 0.45 2065 2124 2184 ±6.28
150 302 0.35 2145 2211 2277 ±8.55

Packaging Data

B (Bulk)

Quantity of each polybag (pcs)

TA(Taping)

Quantity of each inter-box (pcs)
500 5000
Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor

Storage Conditions

1 Storage Temperature: -10℃ ～ +40℃

2 Relative Humidity: ≦75% RH

3 Keep products away from corrosive such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderabilit.

4 The products can be used in two years under storage condition
