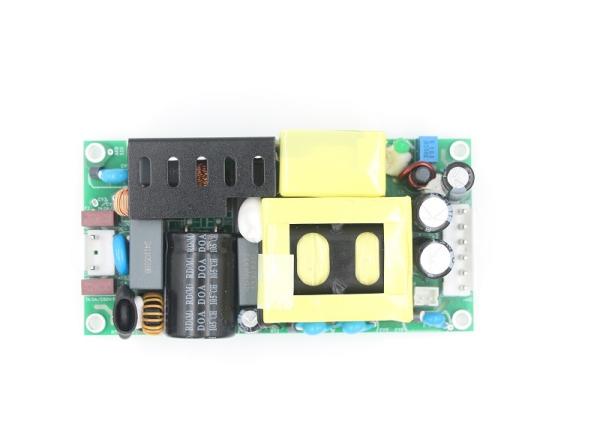

AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
Specifications
Brand Name :
IOASPOW
Model Number :
iAD225
Certification :
CE FCC UKCA
Place of Origin :
China
MOQ :
100
Price :
USD 14.5 PCS
Payment Terms :
T/T
Supply Ability :
1000 Pcs 25 day
Packaging Details :
50 pieces per box
Description

AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU

AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU

Dimensions(MM):L101.6×W50.8×H25.4
Input voltage:AC90V - 264V / 50- 60HZ APFC
Output Power:140W/225W
Overall efficiency:>=93%
Standby power consumption:Less than 0.5W
Operating temperature:-10℃～50℃
Storage temperature:-20℃～80℃
Cooling method:Natural cooling/forced air cooling

Forced air cooling Output characteristics:

Model name The output voltage(V) Minimum(V) Max(V) Light load(A) Overload(A) Ripple(MV) Short circuit protection
iAD225-S12 12 11.4 12.6 0 18.75 120 Self-recovery
iAD225-S15 15 14.25 15.75 0 15 150 Self-recovery
iAD225-S19 19 18.05 19.95 0 11.8 190 Self-recovery
iAD225-S24 24 22.8 25.2 0 9.37 240 Self-recovery
iAD225-S27 27 26.5 28.4 0 8.33 240 Self-recovery
iAD225-S36 36 35.28 37.8 0 6.25 360 Self-recovery
iAD225-S48 48 47.1 50.4 0 4.68 480 Self-recovery
iAD225-S54 54 52.5 55.5 0 4.09 540 Self-recovery
