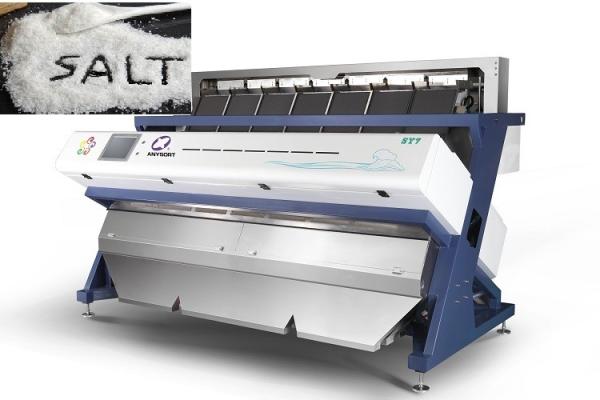

128 Channels RGB Nano Coating Salts Color Sorter Machine
128 Channels RGB Nano Coating Salts Color Sorter Machine
Specifications
Brand Name :
Anysort
Model Number :
SY7
Certification :
CE Certificate
Place of Origin :
Hefei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Accuracy Percentage :
More than 99.9%
Capacity :
2-15t/h
Product Power :
4.5kw
Dimension :
3040*1745*1934mm
Weight :
1685kg
Color :
White
Technology :
Nano Coating For Anti-corrosion
Chute :
7
Description

Nano Coating For Anti-corrosion Applied SY7 Salt Optical Sorting Machine In White

SY7 Salts Optical Sorting Machine Introduction:

1. Channel type salt color sorter
2. New nano-coating technology chute is more corrosion resistant and longer service life.
3. German chip assembly plunger lip-shaped high frequency valve has wide sorting range.(10-100 mesh)

SY7 Salts Optical Sorting Machine Working Principle

According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material. This product can be used for rice, grains, tea, flower tea, nuts, beans, dehydrated vegetables, dried fruits, seafoods, Chinese herbal medicines, tablets, plastics, ores, metals, precious stones, glass, etc.

SY7 Salts Optical Sorting Machine WorkingSteps

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

Technical Parameters:

Model

Throughput

(t/h)

Sorting Accuracy

(%)

Power (kw)

Power Supply

Dimension

L×W×H(mm)

Weight

(kg)
LKY1200 3-15 ≥99.50 4.5 220V/50HZ 3830X1980X2030 1500
SY7 2-15 ≥99.9 4.5 380V/50HZ 3040*1745*1934 1685

Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.

Sorting Examples:

128 Channels RGB Nano Coating Salts Color Sorter Machine
