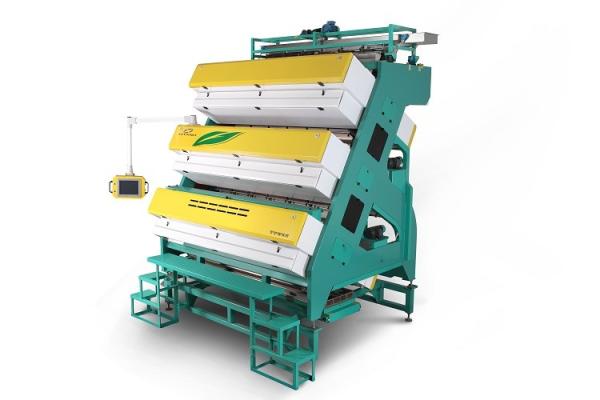

Intelligent Self-cleaning TTW6R Infrared Color Sorting Machine With LED Light and Cloud Image Processing
Intelligent Self-cleaning TTW6R Infrared Color Sorting Machine With LED Light and Cloud Image Processing
Specifications
Brand Name :
Anysort
Model Number :
TTW6R
Certification :
ISO9001 Certificate
Place of Origin :
Hefei, Anhui, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Accuracy :
≥99.99%
Product Power :
3.5kw
Weight :
3800 kg
Dimension(L*W*H) :
2735*2810*3900mm
Color :
Green and yellow
System :
Intelligent Self-cleaning
Light :
LED
Screen :
Cloud Image Processing
Description

Intelligent Self-cleaning TTW6R Infrared Color Sorting Machine With LED Light and Cloud Image Processing

Infrared Color Sorter Description:
The sorting machine is mainly used to sort the impurities from block and granular materials (such as: herbs, dried fruit, etc.) by hand. The tail of the conveyor belt is equipped with a metal detector, screening metal suspicious material. And then the selected material enters the receiving hopper for packaging.
  • Global initiative cloud technology camera can deeply recognize tiny impurities. It shows perfect HD scanning, accurate identification and high computing.
  • Global initiative operation by clicking one button realizes fully automatic sorting without need of professional.
  • The internet of things technology adopted initiatively all over the world enable to operate and monitor machine on line as well as service machine on line by manufacturer.
  • Global initiative cloud image capture and processing and spectrum analysis technologies are adopted.
  • The international top-level cloud processing system with incomparable arithmetic capability and perfect program design create a new era of large data.
  • The material sorting can be captured dynamically at very high speed as well as analyzed and showed. It realizes truly visualization.
  • The new high-frequency solenoid valve exclusive to color sorter with ultra-low air consumption ensures optimized carryover ratio and high sorting accuracy. It features perfect self-recovery system, low maintenance cost and long lifetime above 10 billion times.
  • The high performance LED optical system design and light control technology ensure maintenance free and reduce 35% of energy consumption.
  • The global leading infrared technology can easily remove impurities that normal color sorter can not recognize. (optional)

Tea Color Sorter Application Fields: green tea/black tea/dark tea/white tea/ yellow tea

Technical Parameters:

Model

Throughput

(kg/h)

Sorting Accuracy

(%)

Air Pressure
(mpa)

Power (kw)

Power Supply

Dimension

L×W×H(mm)

Weight

(kg)
TTQ6 ≤1200 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2500
TTW6 ≤1300 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2700
TW4R ≤800 ≥99 0.5~0.8 3.0 380V/50HZ 2380*2445*3100 2050
TW6R ≤1150 ≥99 0.5~0.8 3.2 380V/50HZ 3000*2445*3100 2500
TTW6R ≤1250 ≥99 0.5~0.8 3.5 380V/50HZ 2735*2810*3900 3800

Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.


Examples of sorting:

Intelligent Self-cleaning TTW6R Infrared Color Sorting Machine With LED Light and Cloud Image ProcessingIntelligent Self-cleaning TTW6R Infrared Color Sorting Machine With LED Light and Cloud Image Processing
