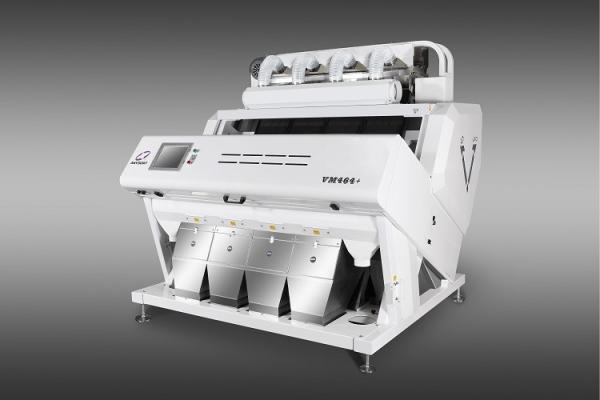

Intelligent Cloud Plastic Color Sorter Machine Low Consumption High Speed
Intelligent Cloud Plastic Color Sorter Machine Low Consumption High Speed
Specifications
Brand Name :
Anysort
Model Number :
VM464
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Capacity :
2.0-8
Sorting accuracy :
≥99.5
Dimension(L*W*H) :
2210*1840*2050mm
Weight :
1270
Warranty :
One Year
After-sales Service :
Engineers available to service machinery overseas
Description

High Capacity Recycled Plastic Color Sorting Machine

Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;

V Series Intelligent Cloud Color Sorter Three Intelligent Fuction:

  1. Intelligent Multilevel sorting
    Globle initiative intelligent multilevel soring technology ensures the fine classification of material and perfect realization of the maximum value of color sorting.
  2. Cloud Intelligence
    Global initiative one button cloud intelligent technology can intelligently recognize,analyze and calculate input impurity to adjust running data without the inconvenience caused by the complex operation.
  3. Intelligent Value
    Intelligent high-frequency solenoid value with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times

Technical Parameters:

Model

Throughput

(t/h)

Sorting Accuracy

(%)

Optimized Carryover

Power (kw)

Power Supply

Dimension

L×W×H(mm)

Weight

(kg)
VM364 1.0-4 ≥99.5 ＞10:1 3.5 220V/50HZ 1870*1840*2050 1100
VM564 5.0-15 ≥99.5 ＞10:1 4.6 220V/50HZ 2550*1840*2050 1350
VM764 5.5-20 ≥99.5 ＞10:1 6 220V/50HZ 3230*1840*2050 1850
VM864 6.0-22 ≥99.5 ＞10:1 7.5 220V/50HZ 3570*1840*2050 2050
VM1064 7.0-28 ≥99.5 ＞10:1 9 220V/50HZ 4250*1840*2050 2410
Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model

Sorting Examples:

Intelligent Cloud Plastic Color Sorter Machine Low Consumption High Speed
