Specifications
Brand Name :
Anwell Touch
Model Number :
AW170IS-G001
Certification :
CE,Rohs,FCC
Place of Origin :
China
MOQ :
3 Pieces
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
10000 pieces per Month
Delivery Time :
8-15 working days
Packaging Details :
Standard carton box
Color :
Silver
Series :
For Gaming
Aspect Ratio :
4:3
Touch Screen Type :
Infrared
Touch signal input :
RS232
Viewing Angle :
178 /178 (H/V)
Optional :
Bezel optional
Function :
Work on Pot O Gold/ WMS/ FOX340
Response time :
≤ 7ms
Single gross weight: :
7.500 kg
Description

Name: Open Frame 17inch Infrared Touch Monitor

Model: AW170IS-G001

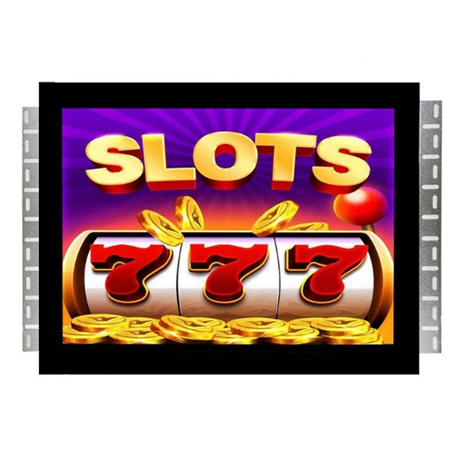

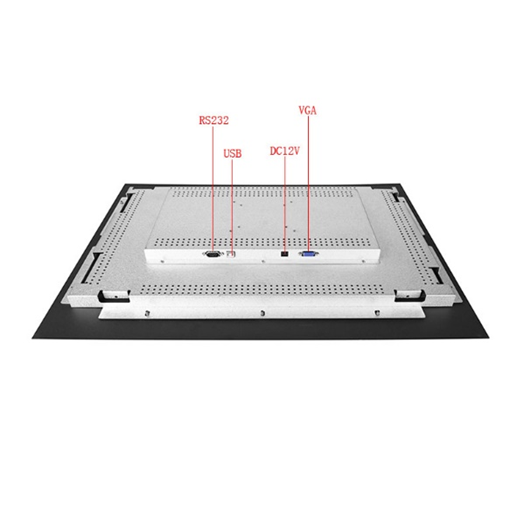

Product Picture:

Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer RequirementsCustomizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements

Product Paramenters:

Anwell Model AW170IS-G001
Monitor Color Silver
Aspect Ratio 4:3
Resolution 1280×1024
Colors 16.7 M
Active Area 337.92(W)×270.336(H) mm
Number of Touches 1 points_Touch Infrared Touch Screen
Brightness 300cd/㎡
Response Time <7 ms
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio 800:1
Backlight Lifetime (hours) LED / 50000h
Touch Technology 1 points Infrared Touch
Touch Connector RS232
Touch Panel Drivers Compatible with 3M/ELO protocol
Touch Response Time ＜5ms
Power Supply Input AC110 ~ 240V
Output DC12V/4A
Interface VGA
Power consumption ≤25W
Temperature Operating 0℃~50℃/Storage‐ 20℃~60℃
Humidity Range (RH) Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material Metal
Installation 75mm and 100mm VESA mount
Warranty(year) 1 Year
Support customization

Structural dimension diagram:

Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements
