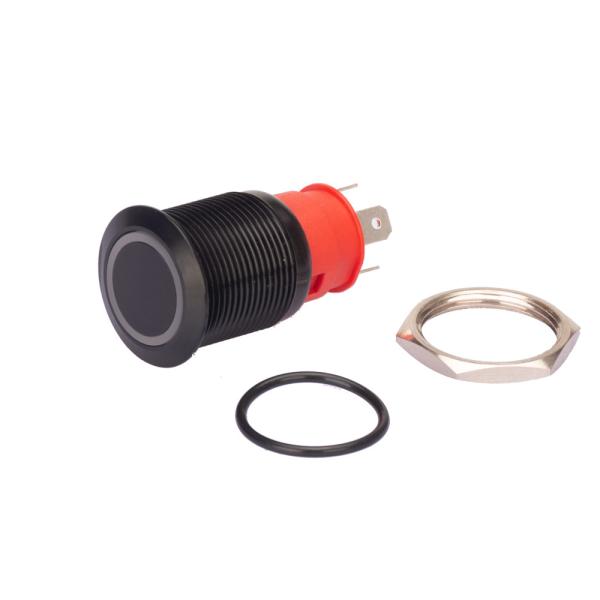

Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
Specifications
Brand Name :
YUESHUN
Model Number :
LD19-10E/S
Certification :
ROHS CE
Place of Origin :
CHINA ZHEJIANG
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
Blister Package+ Foam+Color box Or Upon your request
rating :
10A/250V 15A/250V 20A/250V
Mechanical Life :
More than1,000,000 cycles
diameter :
19mm
terminal type :
4 pin terminal
operation type :
momentary latching
material :
Aluminum
Description

Large Current 10/15/20A 19mm Aluminum Push Button Switch Led Illuminated Self-Locking Reset

Quick Details:

——Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched； Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).

——Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.

——All our products have passed the CE, CCC, ROHS etc. certifications

Product Parameter

mounting hole size 19mm
the front head shape flat head
body material Aluminum
Max.Current 10/15/20A
Max.Voltage 250VAC
terminal type 4 pin terminal
operation type momentary/Latching
Mechanical life more than 1000000 cycles
Contact Configuration 1NO (1NC can be customized; )
IP Rating ip67
LED Type ring
LED Color Red / Green / Blue / Yellow / White / Orange / Purple
LED Voltage 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
LED Life more than 40000 lifes


Product size:

Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking

PIN Terminal:

4 Terminal Pin
LED Pin ("+",:-:), 2.8*0.5mm
Switch Pin (NO-NO), 4.8*0.5mm

Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking

Product display:

LED Color :
Red / Green / Blue / Yellow / White / Orange / Purple

Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking

F&Q:

Q:How about your Product Quality?

A:our products quality is good and most of all products approval of CE and ROHS. After you use it, you will know more understanding for our quality.

Q:Do you have a catalog? Can you send me the catalog to me for checking them ?

A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.

Q: Can you make the switch as our requirement?

A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.

Q: What kind of payment do you accept ? Can I pay RMB ?

A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.

Packing&Transport:

Large Current Push Button Switch Led Illuminated 15A 19mm Aluminum Self Locking
