Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
Specifications
Brand Name :
YUESHUN
Model Number :
LA16-11ZS
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Head shape :
Φ23.6 Round Head
Warranty Period :
Five Years
Product Name :
Emergency Stop Button Switch
Product Function :
Press the button in case of emergency. After the emergency is relieved, rotate the button back to the original position
Application :
universal
Contact Configuration :
1NO + 1NC or 2NO + 2NC
Description

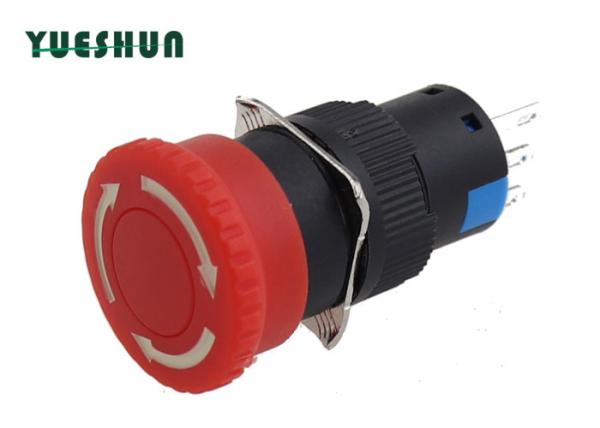

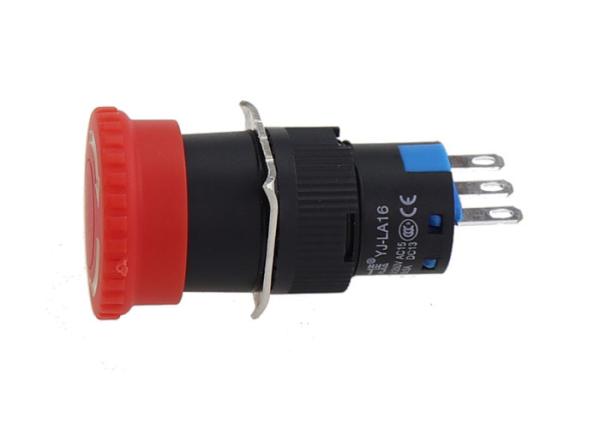

16mm Red Small Head Plastic Emergency Stop Push Button Switch 1NO 1NC On Off Push Button with Three Pins

Feature

- This is a push lock type emergency stop button.Its shell is made of insulating flame-retardant ABS.

- This plastic emergency stop button is rated IP40 and has a life span of more than 2 million times.

- It's normal mode of contact was 1NO 1NC or 2NO 2NC.

Product .Specification

Model Number

LA16-11ZS

Mounting Hole

16mm

Max.Switch Rating

Ith : 10A Ui : 600V AC

Body Material

Flame Retardant Plastic

Contact Material

Silver Alloy

The Front Shape

Φ23.6 Round Head

Terminal Type

Pin Termlmal

Switch Operation

Emergency Stop Type

Contact Configuration

1NO + 1NC or 2NO or 2NC

Mounting panel thickness

0.5-6 mm

Size Drawing

Plastic Emergency Stop Push Button Switch , Panel Mounted Emergency Stop Button Three Pins
