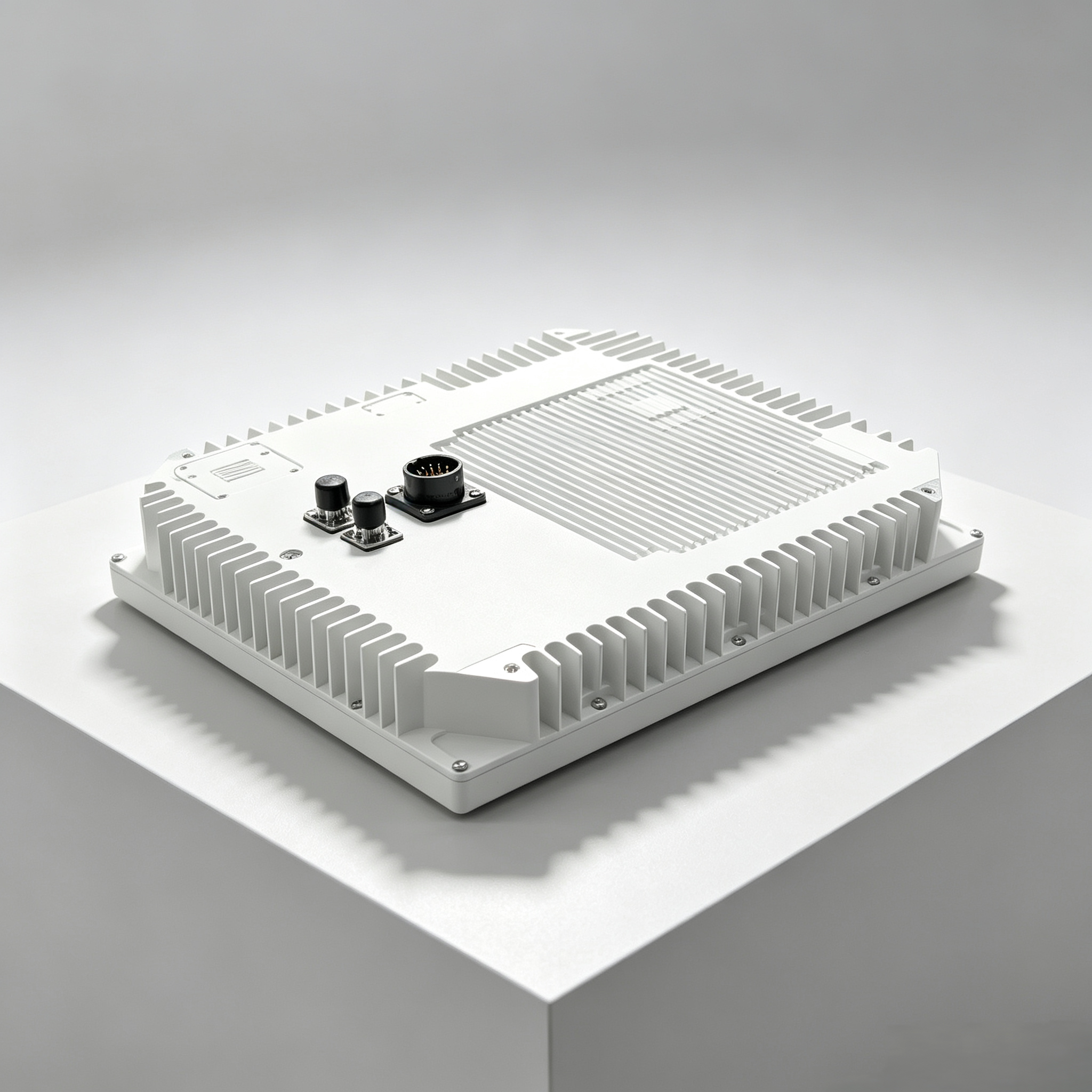

Dual Frequency Anti-jamming Modules Advanced GNSS/GPS Anti-Interference

Product Specification

Product Introduction

This module adopts anti-jamming mechanisms for BDS B1, GPS L1, and GAL E1 signals. It is capable of countering wideband barrage interference from a single direction. The module integrates an anti-spoofing GNSS receiver and features a compact design with low power consumption.

This module is a compact, high-performance anti-jamming and anti-spoofing GNSS module designed for UAVs, loitering munitions, vehicles, and maritime platforms. It integrates an advanced anti-jamming antenna array, interference suppression module, and a spoofing-resistant GNSS receiver, ensuring reliable positioning even in contested electromagnetic environments.

Product Feature

Supports 8-element dual-band anti-interference with the main frequency point B1L1E1 and a fixed secondary frequency point, defaulting to L2.

Integrated UBLOX-F9P navigation and positioning module, outputting positioning information according to the NMEA0183 protocol.

Anti interference type:Induction interference,band limit gaussian interference,spread frequency matching spectrum interference,pulse interference,sweep interference,mixed interference.

Integrated System

Dual Frequency and Dual Anti-jamming Technology

The dual frequency design enables this module to receive and process signals on two distinct bands simultaneously. This capability significantly enhances signal resilience, reducing susceptibility to spoofing and intentional jamming. In combination with its dual anti-jamming architecture, the terminal employs adaptive null-steering algorithms that dynamically filter and cancel interference sources.

These advanced signal mitigation techniques are ideal for UAV and unmanned system applications, where maintaining precise navigation data under adverse conditions is critical. MotioNew’s engineers have verified the TX2501-AJS-4CH-DPA for seamless integration with flight controllers, precision timing modules, and ground control stations.

Product Advantage

Improved Signal Strength for Better Reliability

Optimized Size for Compact Devices

Consistent Performance in Different Areas

Power-Efficient for Battery-Powered Devices

Flexible Compatibility with Various Systems

Easy and Flexible Antenna Mounting

Tailored Fit for Diverse Application Needs

Anti-Jamming Against Strong Interference
Compact Design: 18 x 18 x 4mm
GPS/GLONASS/Beidou/Galileo Support
Low Current Consumption: 5mA
Wide Voltage Support: 1.8 - 5V
Easy for Integration: Plug-N-Play
Customizable Cable Length and Connectors

Possesses anti-jamming and anti-spoofing capabilities.

Applications

Fleet Management & Tracking

Pet Collars

UAV and Drones

Robotic Lawn Mowers

E-bikes

Precision Agriculture

Golf Simulators

Telematics Control Units (TCU)
