70MHz~6GHz Full-Band DJI RF Detection And Direction-finding Module

Product introduction

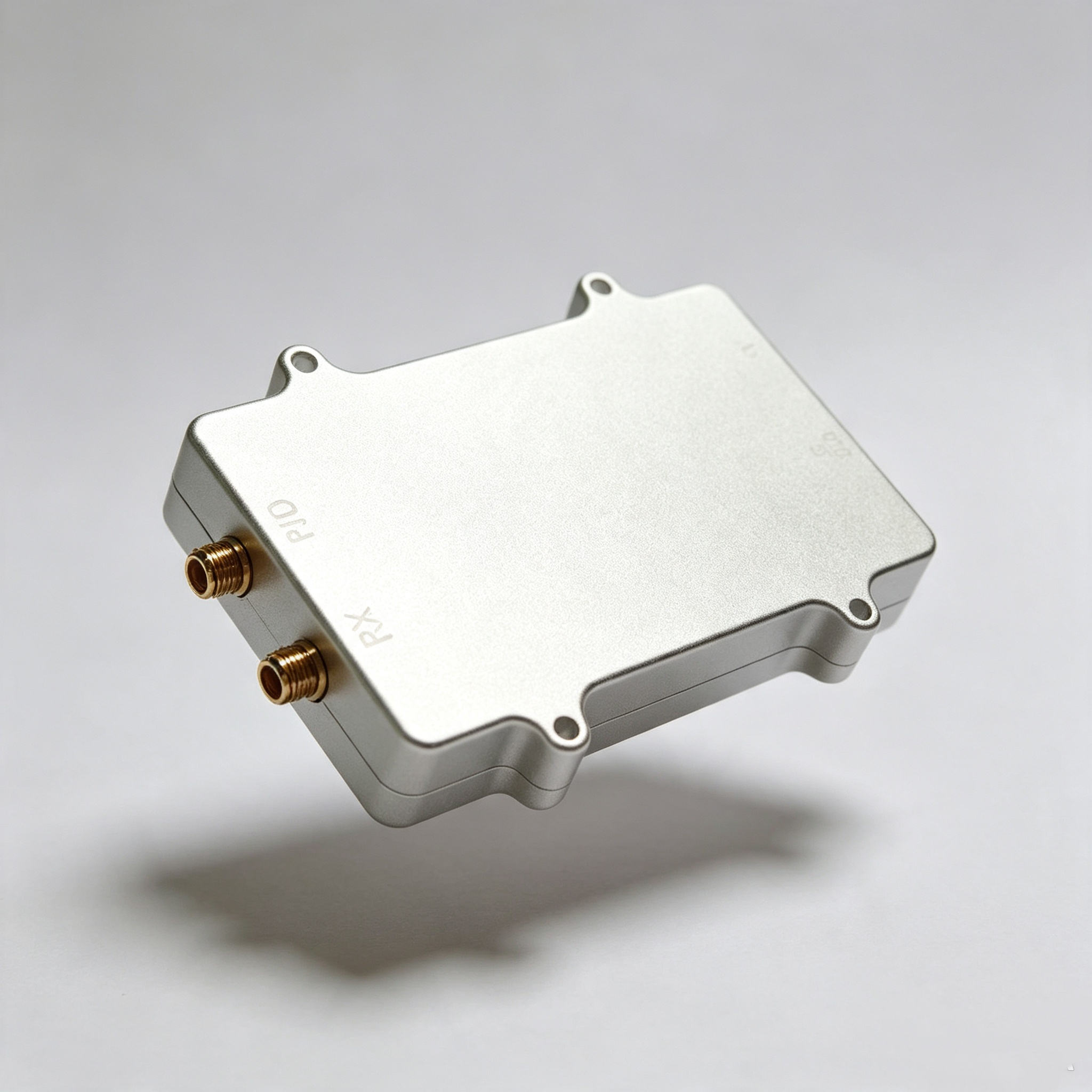

The DB01 module is designed to detect virtually all drone signals on the market, covering the entire DJI and Autel product lines, enhanced WiFi decoders, Harpoon, FMI, analog video transmission, LoRa, LTE-based video transmission, and mainstream video transmission chips. It provides real-time spectrum output during detection and features GPIO-controlled 8 electronic switches for 8-antenna amplitude comparison direction finding.

70MHz~6GHz Full Band DJI RF Detection And Direction Finding Module for Anti Drone

Main Feature

  • Support DJI, Autel, Harbosen, Lightbridge, enhanced WIFI, Analog FPV, Lora, Modified
  • LTE etc,
  • output the detection result and real-time spectrum data.
  • All processing on device.
  • Frequency Range:70M-6G
  • GPIO controlled 8/16 Antenna Direction Finding.
  • Detect Range: 1km-10km
  • UDP/TCP/ ttl 3.3v with 115200
  • 5V, 3.3W.
  • 89mm * 55mm * 18mm

Signal Type

Signal Type Drone Model
DJI_ID DJI drone ID
Lightbridge type1 DJI P4, Spark
Lightbridge type2 Autel Evo2V2, Feimi
eWifi_5M DJI Mini1,Air1
eWifi_10M HUBSAN Zino, HUBSAN Eagle,
PALAnalog Analog PAL
NTSC Analog Analog NTSC
DJI_0C123 10M Mini 2,3, 4k, Air 2, 3, Mavic 2,3, Avata, P4-2.0
DJI_0C123 20M Mini 2,3, 4k,Air 2, 3, Mavic 2,3, Avata, P4-2.0
DJI_03+ Mavic 3 series
DJI_04_type Mini4, Air3s, Avata2, Neo
Autel_typel/Autel_type2/Autel_type3/Autel_type4/Autel_type5/ Autel nano, nano+, lite, lite+, Evo2_V3, MAX4T,
Datalink P900/P840/Mavlink
O3+_ofdm_datalink DJl and Autel remote control and some datalink
LTE_type0 LTE modfied
LORA RadioMaster, Lora Signal, ExpressLRS, T900
Walksnail Walksnail, Avatar
DJI_04+ Mavic 4 pro

Command

Command Explanation
start or start-freq0 Include frequency band
2384 - 2485
5150-5260
5725-5940
start -freq 1 430-440
825-845
902-928
1200-1445
2384 - 2485
5150-5260
5725-5940
start-freq2 Only 8 DJI ID frequency
start-freq3 430-440
825-845
900-930
1000-1700
2000-2500
3300-3500
4900-6000
start -freq 4 400-1700
2000-2500
3000-3500
4900-6000
start -freq 8 825-850
902-928
1400-1450
2384-2485
5150-5260
5725-5940
start -freq xxxx Lock frequency
start-freq 2450
-gpiox gpiovalue fixed to x
Custom band:
start -band 430,440,-band 830,845, -band 902,928, -band 1430,1445, -band 2384,2485, - band 5150,5260,-band 5725,5940,
reboot Reboot device
start-heart_beat 0 Close heartbeat
start-gain xx Gain range [10 70]
-set_ant xxxx Antenna enable bit mask
-rx2 x X=1 use RX2 for lower frequency range
Mustconfig_2r2tbeforehead
-rx2_freq xxxx Frequency large than xxxxMhz, use RX1
Frequency less than xxxxMhz, use RX2
config_2r2t Turn on RX2
Use RX2 will increase 0.5W compared to use RX1 only
config_1rlt Close RX1,
#NAME? Change ip, for example -setip192.168.2.2
-fpv_only 1 Scan FPV only,
#NAME? Close Scan FPVonly,
-freqs f1,f2,f3,...fn, Lock multiple frequenciese
-turn_on_gpio x Gpiox pull up
-turn_off_gpio x Gpio x pull down
-fft1 Output real-time spectrum
4 byte frequency, 2048 FFT value.
-fft0 Close real-time spectrum output
