Specifications
Model Number :
SHH100
Detection Range :
~3km
MOQ :
1
Delivery Time :
7-10 working days
Complete machine power consumption :
≤300W
Price :
$29,999-$31,000
Weight :
≤8.5kg
Certification :
CE
Jamming Frequencyresponse time :
900Mhz 2.4Ghz 5.2Ghz 5.8Ghz
Supply Ability :
<100 units 30 working days
Brand Name :
Roviyno
Detection Frequency :
400 MHz–6 GHz
Packaging Details :
Aluminum box
Payment Terms :
T/T
Place of Origin :
China
Jamming Range :
~3km
Description

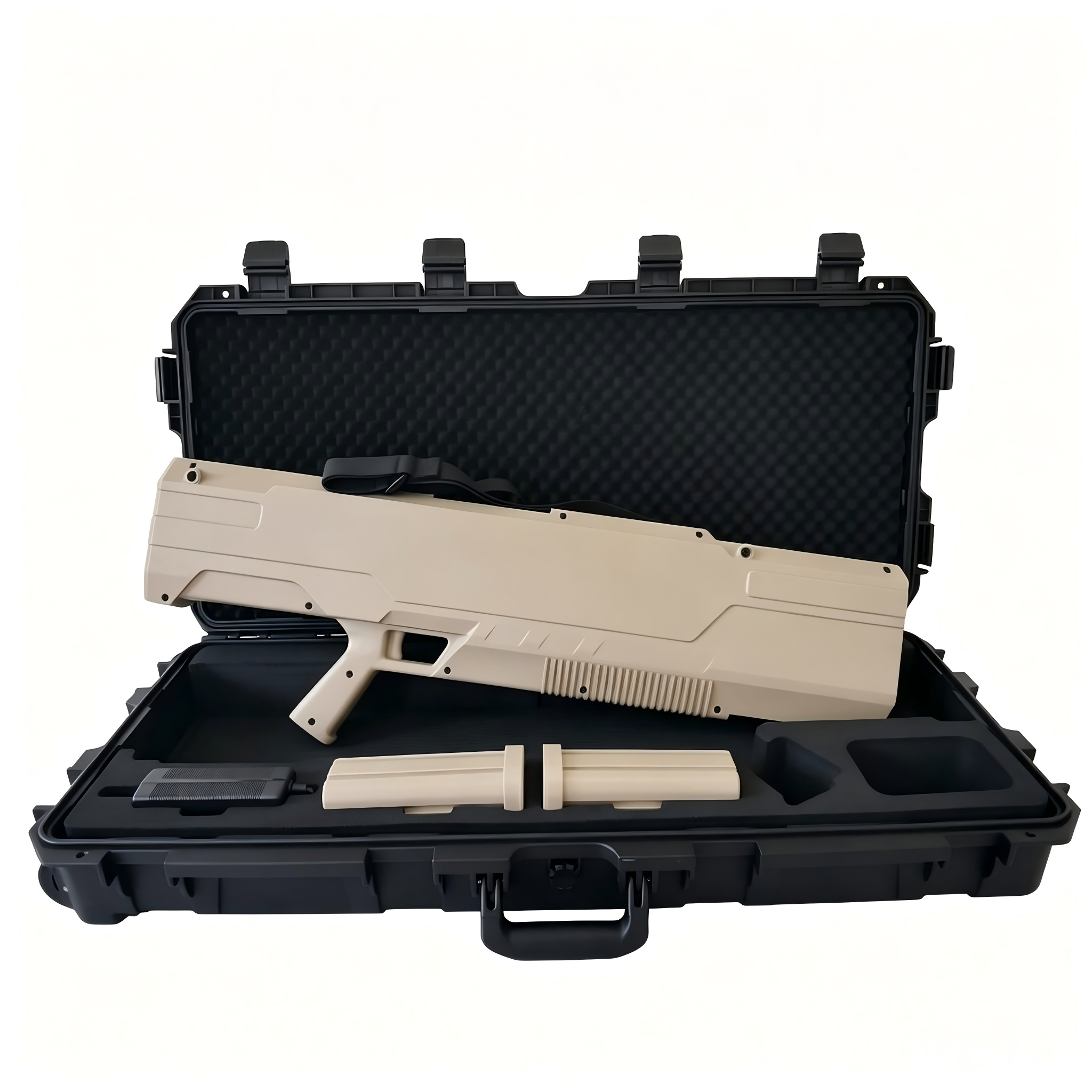

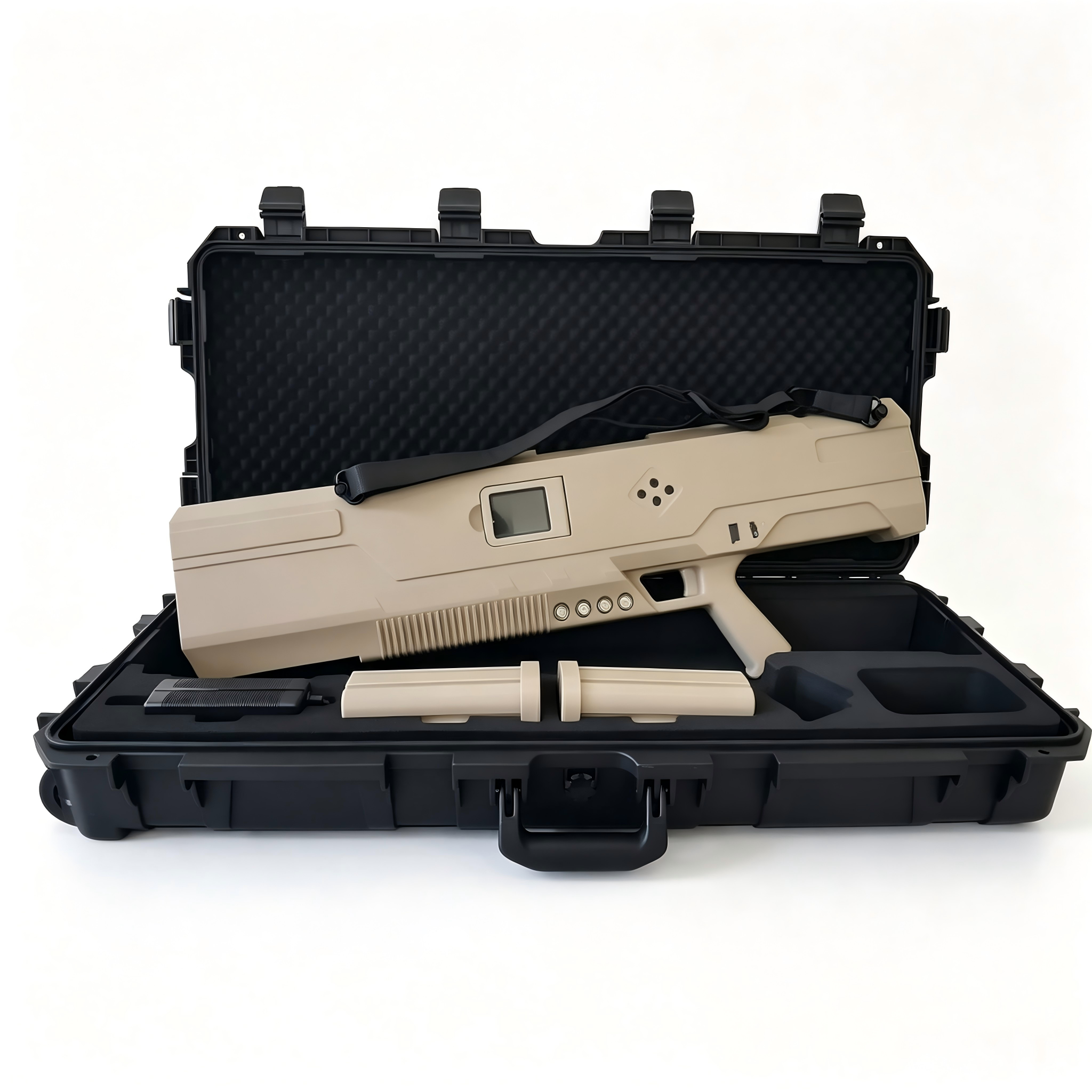

Portable Anti-Drone Jammer Handheld Drone Detection Jamming Integrated
Product Introduction

PC1 is a handheld device for drone detection and neutralization. Through radio sensing and jamming technologies, it detects and identifies commercial drones, as well as finds drone direction, locates drones and pilots and jams drone signals. It comes with a screen to display real-time drone information. PC1 works inde pendently offline or with multiple devices networking to cover a larger area. It's able to transmit its location back to a management platform.

Product Feature
  1. Integrated Detection & Countermeasure
    Combines drone detection, identification, direction finding, and RF jamming in a single handheld platform.
  2. Wide Frequency Coverage
    Supports customized full-spectrum RF coverage from 400 MHz to 6 GHz, covering major drone communication and navigation frequency bands.
  3. Up to 3 km Jamming Range
    Provides effective RF countermeasures against unauthorized drones at distances of up to 3 km, depending on the operating environment and configuration.
  4. Intelligent Direction Finding
    Built-in directional antennas and sensors assist operators in determining the drone's bearing and accurately aiming toward the target.
  5. Intelligent Jamming Strategy
    The system can identify detected drone characteristics and automatically adapt countermeasure strategies and frequency configurations.
  6. Upgradeable UAV Database
    Supports UAV model database expansion and software updates to maintain compatibility with evolving drone technologies.
  7. Touchscreen User Interface
    An intuitive touchscreen interface provides real-time operational information and visualized detection data.
  8. Portable & Rapid Deployment
    Designed as a handheld platform for flexible deployment in mobile security and temporary protection scenarios.

Integrated Portable Anti Drone Jammer Drone Detection With Touchscreen User Interface

Product Specificaiton

Detection Work mode Radio frequency
Detection Drone frequency 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range 1-2km (Varies depending on environment and drone model)
Detection Battery run time ~6 hours
Jamming Work mode Radio jamming
Jamming Target Remote control
Jamming Jamming frequency 900MHz, 2.4GHz, 5.2GHz, 5.8GHz
Jamming Range 1~1.5km (Varies depending on environment and drone model)
Jamming Battery run time ~30 mins
Mechanics Dimension L*W*H:(850mm*292mm*88mm)±5mm
Mechanics Weight ~5.5kg

Product Advantages

Detection and neutralization integrated
Drone detection and signal jamming in one device
Not just DJI
DJI, Autel as well as FPV, WiFi, homemade drone models
Detection and direction‑finding
Graphical interface of displaying drone direction
Screen display
Foldable screen for graphical display of drone information
Device location
Able to transmit device location to the platform
Mission on the move
Easy to carry for mission on the move
