Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Specifications
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,PayPal
Model NO. :
PF-AN020A
Gain :
8-12dBi
Material :
Fiberglass
Nature of Operation :
Transmitting Antenna, Customized
Operating Wavelength :
Customized
Polarization :
Vertical
Sturcture Form :
Surface Antenna
Usage Occasion :
Handheld Antenna
VSWR :
<1.5
Name :
Fiberglass Antenna
Maximum Input Power :
100W
Connector Type :
N/F,SMA/F,BNC (Customized)
Radiation :
Omnidirectional
Length :
35(Diameter)*600mm (Customized)
Input Impedance :
50 Ω
Antenna Weight :
0.35kg
Operating Temperature :
-40~65 C°
Rated Wind Velocity :
60 M/S
Mounting Way :
Pole-Holding
Mounting Hardware :
40-60 mm
Transport Package :
Carton
Specification :
65X20X10cm, 1kg
Trademark :
PADIFLY/OEM
Origin :
Guangdong
Package Size :
65.00cm * 20.00cm * 30.00cm
Package Gross Weight :
0.500kg
Description

Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna


Fiberglass Omnidirectional Digital Transmission Antenna for Anti Fpv Drone


Product Description
Electrical Specification
Frequency
20-6000MHz (Customized Range)
Gain
8-12 dBi
VSWR
≤1.5
Half-power beam width
H 360° V 15±2°
Maximum input power
100w
Input connector type
N/F,SMA/F,BNC (Customized)
Input Impedance
50 Ω
Dimensions
Φ35*600mm (Customized)
Polarization
Vertical
Lightning protection
DC Ground
Material
Fiberglass
Mechanical Specification
Dimensions
Φ35*600mm (Customized)
Antenna weight
0.35kg
Operating temperature
-40~65 C°
Rated Wind Velocity
60 m/s
Radome color
Gray,Customized
Mounting way
Pole-holding
Mounting hardware
40-60 mm

Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Items Cellular
Brand Name
Frequency (MHz)
2G 3G 4G 5G
CDMA 800
851-894 MHz
GSM 900
925-960 MHz
DCS1800
1805-1880 MHz
PCS1900
1930-1990 MHz
3G CDMA
2110-2170 MHz
GPS L1
1570-1580 MHz
WiFi
2400-2500 MHz
4G LTE 800
791-821 MHz
4G LTE 700 (Optional)
725-770 MHz
4G LTE 2600
2620-2690 MHz
4G LTE 2300 (Optional)
2300-2400 MHz
WiFi 2.4G
2400-2485 MHz
GPSL1
1560-1620 MHz
GPSL2/Glonass
1227.42 MHz
Wireless Camera 1.2G
1100-1200 MHz
Wireless Camera 2.4G
2400-2483 MHz
PHS
1900 MHz
Etc.
Etc.
5-6 GHz
WiFi5.2G
5170-5330 MHz
WiFi 5.8G
5725-5850 MHz
Etc.
Etc.
Customized Option
5G
in 3100-4990 MHz
VHF
135-174 MHz
UHF
400-470 MHz
Etc.
Etc.
Packaging & Shipping


Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna
Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna

Welcome to Padi Fly Technology Company Limited

We are a professional anti-drone equipment manufacturer based in Shenzhen, China, with 15 years of experience in low-altitude security, and a 1,200+square-meter standardized production and testing facility.

We focus on the design, R&D and global supply of anti-drone equipment and supporting products, As a reliable player in the low-altitude security field, we are committed to practical innovation, stable product quality and customer-focused services.

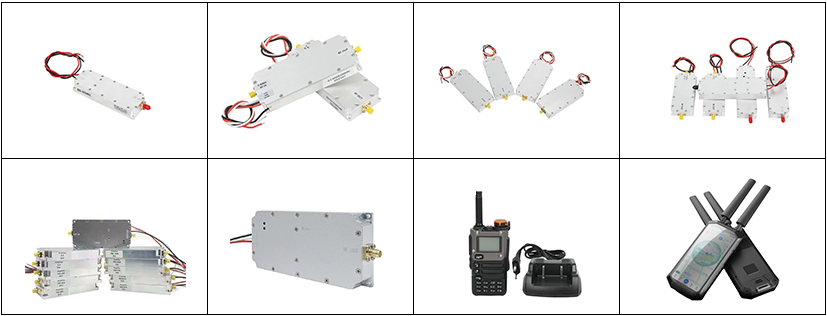

Core Products: FPV Fiber Optical, DDS Module, Drone Detector, Anti-drone Module, Handheld Drone Detector, Backpack Drone Detector, Vehicle Drone Suppressor, Fixed Drone Detection and Suppressor Integrated Equipment, etc.

Our Strengths: Our team consists of electronic countermeasure and low-altitude security professionals, focusing on continuous optimization of anti-drone technologies, We provide customized solutions for public security, airports, key infrastructure and event security teams, as well as individual users.

Mission: Provide high-performance anti-drone equipment that integrates accurate detection and effective countermeasures to secure low-altitudes paces.

Vision: Become a trusted global anti drone equipment supplier, serving customers worldwide with mature technology and reliable products.














Digital Transmission Fiberglass Antenna Anti Fpv Drone Antenna


































































FAQ

1.Question : Why choose us ?

Answer : We have 15 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?

Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?

Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?

Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?

Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?

Answer : Yes , logo,packing design and other oem services are available .

We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?

Answer : T/T , Western union , Paypal , Alipay and so on.
