Anti-drone Radar Electromagnetic Spectrum Competition X-band Drone Detection Radar System
Anti-drone Radar Electromagnetic Spectrum Competition X-band Drone Detection Radar System
Specifications
Brand Name :
FengQing
Model Number :
XQ/QV338-8000X
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
perating System :
Phased Array System (Azimuth Mechanical Scan + Elevation Electronic Scan) / Pulse Doppler
Range :
≥8.0km
Azimuth Coverage :
360°
Elevation Coverage :
≥40°
Weight :
≤77 kg
Operating Temperature :
-40℃ ~+ 55℃
Description
Anti-drone Radar Electromagnetic Spectrum Competition X-band
Product Introduction

The development and deployment of anti-drone radar systems have become a cutting-edge focus in the electromagnetic spectrum competition. These radars commonly operate within the X-band (8-12 GHz) as their core frequency range, leveraging its excellent resolution and tracking accuracy to effectively detect small, low-altitude, slow-moving drone targets. In complex electromagnetic environments, the ability to control and utilize the X-band more efficiently and intelligently determines which side holds the critical technological initiative in counter-drone defense.

This competition manifests directly in the contest over radar performance: on one hand, systems must employ technologies such as adaptive frequency hopping and narrow beams to ensure stable operation and low probability of interception within the X-band; on the other hand, they must be capable of identifying and suppressing deceptive or jamming signals from hostile drones operating in the same frequency range. Therefore, the confrontation between anti-drone radars is, in essence, a real-time dynamic contest of "detection" versus "countermeasures" within a specific spectrum, serving as a microcosm of systemic electronic warfare capabilities in the domain of low-altitude security.

Main Parameters
Category Specifications
Operating System Phased Array System (Azimuth Mechanical Scan + Elevation Electronic Scan) / Pulse Doppler
Operating Frequency Band X-band
Range ≥8.0km
Azimuth Coverage 360°
Elevation Coverage ≥40°
Detection Speed 1.8km/h – 270km/h
Speed Accuracy ≤0.5m/s
Weight ≤77kg
Operating Temperature – 40℃ ~+ 55℃

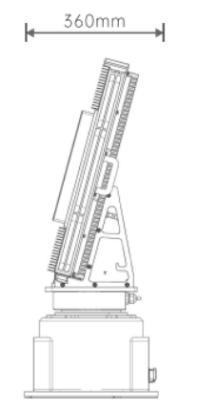

Product Dimensions 820mm x 925mm x 360mm
Anti-drone Radar Electromagnetic Spectrum Competition X-band Drone Detection Radar System Anti-drone Radar Electromagnetic Spectrum Competition X-band Drone Detection Radar System
Company Information

Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.
Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:

  • Pre-sales Consultation: Customized solution designs and product recommendations based on client needs.
  • In-sales Support: Comprehensive technical support for installation, debugging, and operational training.
  • After-sales Service: Rapid-response system including remote support and on-site maintenance.
Anti-drone Radar Electromagnetic Spectrum Competition X-band Drone Detection Radar System
