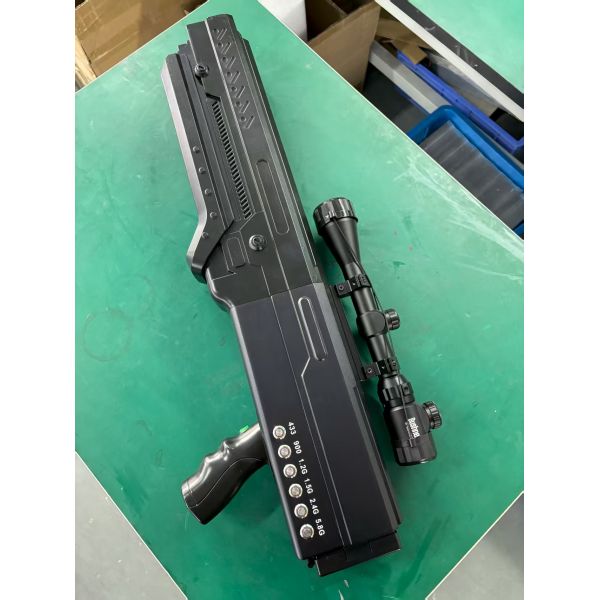

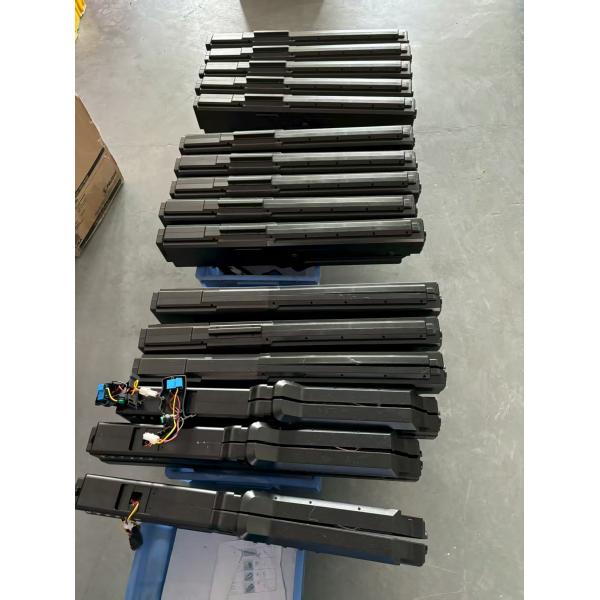

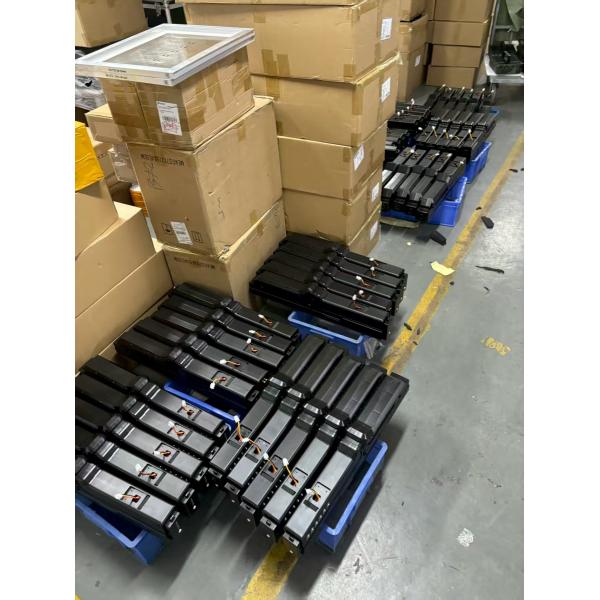

Civilian-Compliant Countermeasure Solution: Secure & Traceable Airspace Control Tool
Civilian-Compliant Countermeasure Solution: Secure & Traceable Airspace Control Tool
Specifications
Brand Name :
FengQing
Model Number :
FQ-G006
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Operating Frequency Bands & Power 1 :
433MHz 430 – 440 MHz 40 ± 1 dBm
Operating Frequency Bands & Power 2 :
900MHz 860 – 930 MHz 40 ± 1 dBm
Operating Frequency Bands & Power 3 :
1.2GHz 1160 – 1220 MHz 40 ± 1 dBm
Operating Frequency Bands & Power 4 :
1.5 GHz 1550 – 1620 MHz 40 ± 1 dBm
Operating Frequency Bands & Power 5 :
2.4 GHz 2400 – 2500 MHz 40 ± 1 dBm
Operating Frequency Bands & Power 6 :
5.8 GHz 5720 – 5850 MHz 40 ± 1 dBm
Effective Jamming Range :
800 - 1500 m (Typical. Varies with drone model and environment)
Operating Voltage :
25.9 V
Battery Energy :
≥ 125 Wh (5,000 mAh @ 25.9V)
Net Weight :
~4 kg
Gross Weight :
~9.2 kg
Unit Dimensions (L×W×H) :
700 × 300 × 150 mm
Packaging Dimensions (L×W×H) :
1000 × 500 × 250 mm
Description
Civilian Compliance Countermeasure Solution — A Secure, Traceable Airspace Control Tool

Provides controlled drone jamming capabilities for sensitive locations such as airports, prisons, and government agencies. The system features clear start/stop records and power management, facilitating compliance audits and incident forensics. It also provides operational guidance and compliance usage recommendations, emphasizing that activation is limited to authorized scenarios.

Product Features
Superior Jamming Performance
  • Utilizing ultra-high-frequency broadband seamless jamming technology and precise power output control via individual channel switches, the system delivers high effective radiated power (ERP) per channel for extended range.
  • Its advanced band-segmentation function targets only the control and video transmission frequencies of drones, leaving other bands unaffected.
  • This ensures powerful countermeasures against UAVs while maintaining excellent electromagnetic compatibility (EMC) with the surrounding environment.
User-Friendly Operation
  • Featuring a built-in, hot-swappable battery, the system provides over 30 minutes of operational time, meeting the demands of short-term, flexible deployment.
  • It requires no complex operational training and can be activated instantly in response to sudden threats, making it adaptable for emergency countermeasure scenarios.
Enhanced Stability and Reliability
  • Constructed with imported components and a soft-start circuit design, the system eliminates the risk of arcing associated with mechanical switches.
  • Its high level of integration ensures stable operation.
  • Two external high-performance fans significantly improve thermal management, further enhancing the reliability of the device during prolonged operation.
Technical Specifications
Operating Frequency Bands
Output Terminal Operating Frequency Power
433MHz 433MHz 40±1dBm
900MHz 860 - 930MHz 40±1dBm
1.2G 1160 - 1220MHz 40±1dBm
1.5G 1550 - 1620MHz 44±1dBm
2.4G 2400 - 2500MHz 44±1dBm
5.8G 5720 - 5850MHz 44±1dBm
Structural Parameters
Parameter Details
Interference distance 800 - 1500M (specific distance depends on the model of the UAV, the distance between the drone and the pilot)
Power supply 25.9V
Battery capacity 5000mAh
Host weight approximately 4Kg
Weight with packaging approximately 9.2Kg
Size 700*300*150mm
Outer packaging size 1000mm*500mm*250mm
