427mm Wheelbase UAV Drone 227g FPV Frame 5.8G
427mm Wheelbase UAV Drone 227g FPV Frame 5.8G
Specifications
Brand Name :
FengQing
Model Number :
FQ-I10
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Core Material & Weight :
T300 carbon fiber, 3x stronger than same-size metal frames, only 227g; supports heavy loads with better endurance.
Wheelbase & Flight Performance :
427mm wheelbase for 10-inch propellers; 40% stronger wind resistance, stable images, high propulsion efficiency, suitable for long-distance cruising.
Structural Durability :
7.5mm thick arms (50% thicker than 5/7-inch models), 3.0mm thick top plate, 2.0mm lightweight base plate; impact-resistant.
Compatibility & Convenience :
Dual-spec motor holes + universal camera/flight controller mounts; compatible with mainstream accessories, no extra drilling or adapters needed.
Description

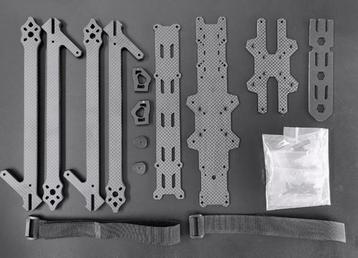

10-inch FPV Drone Frame Kit

Built with T300 carbon fiber, plus a 427mm long wheelbase and differentiated thickened structure, this 10-inch FPV drone frame kit can carry heavy accessories (large batteries, pro cameras) and stay stable in complex outdoor environments—ideal for medium/large FPV models.

  1. Aerospace-Grade T300 Carbon Fiber: 3x stronger than same-size metal frames, yet only 227g. Avoids "heavy load, short endurance" issues of metal frames, supporting 10-inch propellers and large batteries for multi-accessory setups.
  2. 427mm Long Wheelbase: Designed for 10-inch propellers. 40% better wind resistance than small wheelbase models (reduces shake for clear aerial shots); high propulsion efficiency fits long-distance cruising.
  3. Differentiated Thickened Structure: 7.5mm arms (50% thicker than 5/7-inch models) resist torque/impact; 3.0mm thick top plate (for heavy accessories) + 2.0mm lightweight base plate—balances durability and weight, extends endurance.
  4. 35mm Sufficient Space: Fits 6s-8s 8000-16000MAH batteries and 80A-100A ESCs easily. No cramped wiring (lowers overheating risk); easy to add GPS or image transmission antennas for upgrades.
  5. Fully Compatible Design: Dual-spec motor holes (1616mm/1919mm) fit 4214/4218/4312 motors (no extra drilling); 19mm camera mount + 30.5*30.5mm flight controller mount work with most mainstream parts—saves assembly/modification time.
10-inch Frame
Project 10-inch FPV Drone Frame Kit
Model 10inch-V10
Wheelbase 427mm
Dimensions 268.18332.07
Weight 227g
Top Plate Thickness 3.0mm
Base Plate Thickness 2.0mm
Arm Thickness 7.5mm
Camera Mounting Hole Spacing 19mm
Map Mounting Hole Spacing 2020mm & 30.530.5mm
Flight Controller Mounting Angle 30.530.5mm
Internal Space Height 35mm
Motor Mounting Hole Spacing 1616mm & 1919mm
Recommended Configuration (Not Included)
Motor 4214/4218/4312
ESC 80A-100A 6s-8s
Propeller 10-inch
Camera 19*19mm
Light Control F4/F7/F405/F722
VTX 5.8G/1.2G/4.9G-1.2W-5W
Battery 6s-8s-8000MAH-16000MAH
Remarks:
  1. Material: T300;
  2. Quotation based on 10000PCS;
  3. Quotation for carbon plates with regular materials and thickness; customized prices for customers are subject to separate negotiation;
