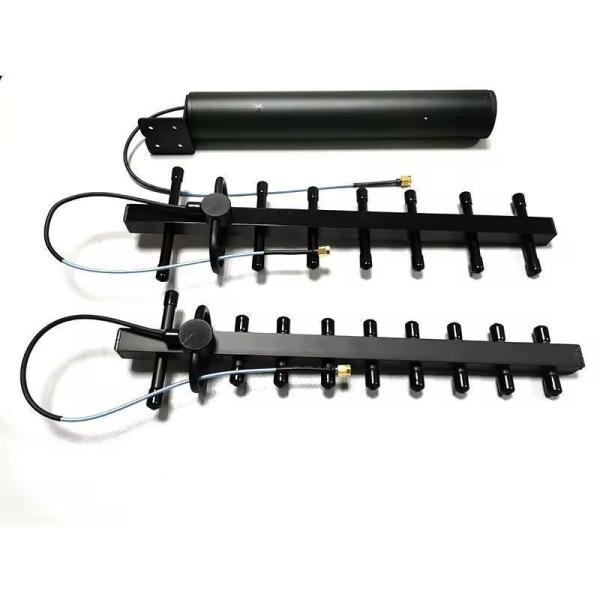

2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
Specifications
Connect :
SMA
Working Temperature :
-40~90 °c
Colour :
Silver
Weight :
0.5kg
Material :
Aluminum
Transport Package :
Carton
Origin :
Guangdong, China
Gain :
10 dBi
Frequency :
2.4GHz
Vswr :
<2.0A
Samples :
US$ 28/Piece
Customization :
Available | Customized Request
Place of Origin :
Guangdong, China
Brand Name :
LDSK
MOQ :
2 piece
Delivery Time :
5-8 workdays
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability :
5000pcs per month
Description

2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization

Parameters
Electrical Specifications
Frequency Range
2400-2500MHz
Gain(dBi)
13±1dBi
VSWR
≤2.0
Polarization
Vertical
Horizontal Beamwidth(0º)
40±10º
Vertical Beamwidth(0º)
35±8º
Input Impedance(Ω)
50Ω
Maximum input power(W)
50W
Input connector type
SMA-J leads to RG141 feeder 5CM
Lightning Protection
DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth)
370*63*20.5MM
Packing size(mm)
480*350*110MM
Antenna weight(kg)
0.1KG
Operating temperature(ºC)
-30~65º
Installution Method
Machine installation
Product Description
2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization

2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
