Specifications
Brand Name :
Ladasky
Model Number :
LDSKW08
Place of Origin :
Shenzhen
MOQ :
1
Payment Terms :
L/C,D/A,T/T,D/P,Western Union,
Supply Ability :
5000pcs/month
Delivery Time :
5-8 days
Receiver Frequency Band :
100MHz-8000MHz
Video Capture :
100MHz-8000MHz Analog Image Transmission
Recognition Type :
OFDM High-Definition Image Transmission Signal, FM Analog Image Transmission for Racing Drones
Detection Distance :
1km, depending on the frequency band and transmission power.
Detection Alarm Method :
Video, Audio-Visual
Log Recording :
Supports Memory Card Recording
Upgrade and Data Export Interface :
Dedicated Magnetic Cable
Power Supply :
Removable Lithium Battery (Type-C Rechargeable)
Battery Life :
≥7 hours (single battery)
Structural Dimensions :
≤164mm*44mm*68mm (main unit without antenna)
Operating Weight :
≤580g (including single battery)
Startup Method :
Power Button Operation (Press and hold for 3 seconds):
Description
Advanced FPV & UAV Detector with Ultra-Wideband Coverage
100MHz–8GHz Ultra-Wideband UAV & FPV Detection Device
Advanced portable drone detection system with real-time video capture and precise direction finding capabilities for comprehensive airspace security.
Product Overview

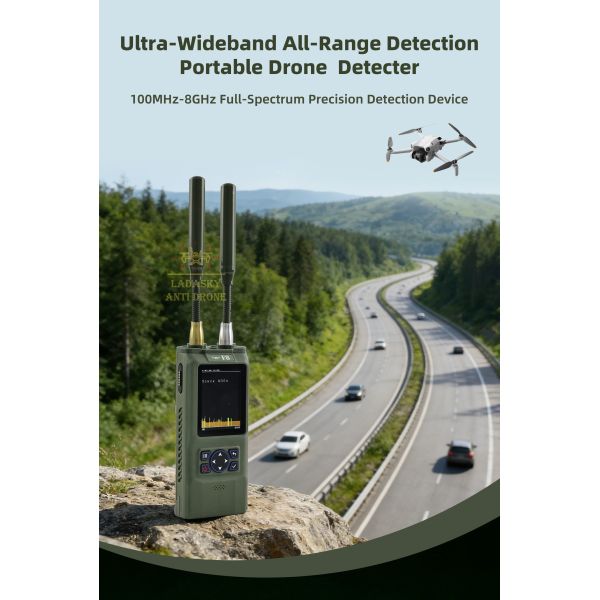

The LDSKW08 ultra-wideband portable drone detection device employs superheterodyne architecture to detect OFDM high-definition image transmission signals from mainstream DJI and Autel drones across the 100MHz-8GHz range, along with analog image transmission signals from various DIY racing drones. Featuring dual antennas and multi-channel simultaneous scanning, this device delivers fast detection speed, high sensitivity, long detection range, low false alarm rates, strong scalability, and user-friendly operation.
Key Features
  • Full-Spectrum Detection Coverage: Comprehensive 100MHz to 8GHz frequency coverage with ultra-wideband full-spectrum monitoring and real-time analog video transmission signal detection with ultra-low false alarm rates.
  • Mainstream Drone Compatibility: Real-time signal detection and data updates for leading drone brands including DJI and Autel, ensuring accurate monitoring data.
  • Precise Direction Finding: Supports directional antenna replacement with signal strength monitoring for rapid drone location pinpointing.
  • Real-Time Video Capture: Captures simulated drone video within 100MHz-8GHz range, enabling first-person FPV camera viewing with dual display options: direct device viewing or large-screen export via magnetic interface.
  • Interference Linkage Function: Integrates with backpack-style countermeasure equipment via magnetic interface for long-range "detection-countermeasure" operational capabilities.

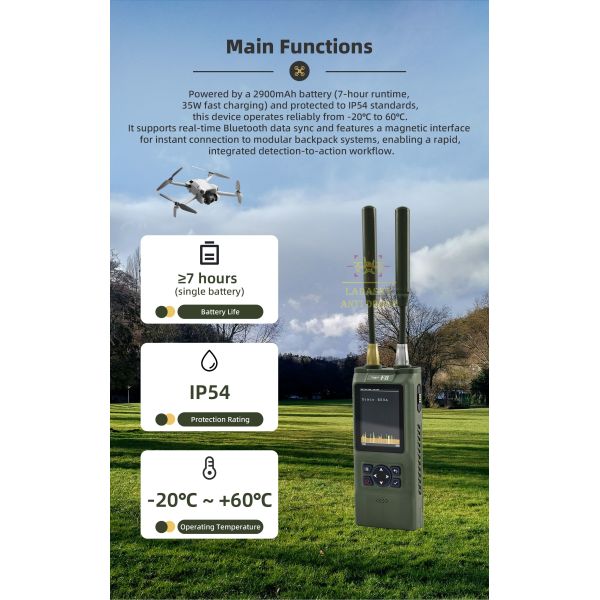

  • Wide Temperature Adaptability: Reliable operation from -20℃ to +60℃, ensuring stable performance in extreme weather conditions.
  • Waterproof Protection: IP54 rating provides effective protection against water splashes and dust for complex outdoor environments.
  • Fast Charging Support: 35W high-power fast charging achieves full charge in one hour, significantly reducing downtime.
  • Extended Battery Life: 2900mA high-performance battery delivers up to 7 hours of continuous operation for extended outdoor missions.
  • Bluetooth Data Transmission: Real-time monitoring data transmission to terminal devices for convenient remote viewing and analysis.
Technical Specifications
Parameter Specification Notes
Receiver Frequency Band 100MHz-8000MHz
Video Capture 100MHz-8000MHz Analog Image Transmission
Recognition Type OFDM High-Definition Image Transmission Signal, FM Analog Image Transmission For Racing Drones
Detection Distance 1km Depending on frequency band and transmission power
Detection Alarm Method Video, Audio-Visual
Log Recording Supports Memory Card Recording
Upgrade and Data Export Interface Dedicated Magnetic Cable
Power Supply Removable Lithium Battery (Type-C Rechargeable)
Battery Life ≥7 hours (single battery)
Structural Dimensions ≤164mm*44mm*68mm Main unit without antenna
Operating Weight ≤580g (including single battery)
Startup Method Power Button Operation (Press and hold for 3 seconds)
Control Method Button operation, supports volume adjustment, screen backlight activation, and drone detection information viewing
Environmental Adaptability Operating Temperature: -20℃~ +60℃; Storage Temperature: -40℃~ +85℃; Protection Rating: IP54
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Portable 100MHz–8GHz FPV Drone Detection System with Precise Direction Finding, Video Interception and Backpack Jamming Interface with High Sensitivity and Low False Alarms
Frequently Asked Questions
What is the detection frequency range of the device?
100MHz-8000MHz, covering the frequency bands of mainstream UAV OFDM high-definition image transmission signals and racing drone analog image transmission signals.
What video viewing methods does the device support?
It supports two video display methods: direct viewing through the device itself, or exporting and displaying real-time images by connecting a large-screen device via the magnetic interface.
What is the battery life of the device?
Equipped with a 2900mA removable lithium battery, the maximum usage time can reach 7 hours. It supports 35W high-power fast charging and can be fully charged in one hour.
What is the protection level and operating temperature range of the device?
The protection level reaches IP54 standard, and the operating temperature range is -20℃ to +60℃, which can adapt to various complex environments.
Does the device support data export and firmware upgrade?
Yes, through the dedicated magnetic cable interface, log export and firmware upgrade can be realized.
What is the weight and size of the device?
The operating weight is ≤580g (including a single battery), and the structural size of the host without antenna is ≤164mm*44mm*68mm, featuring strong portability.
