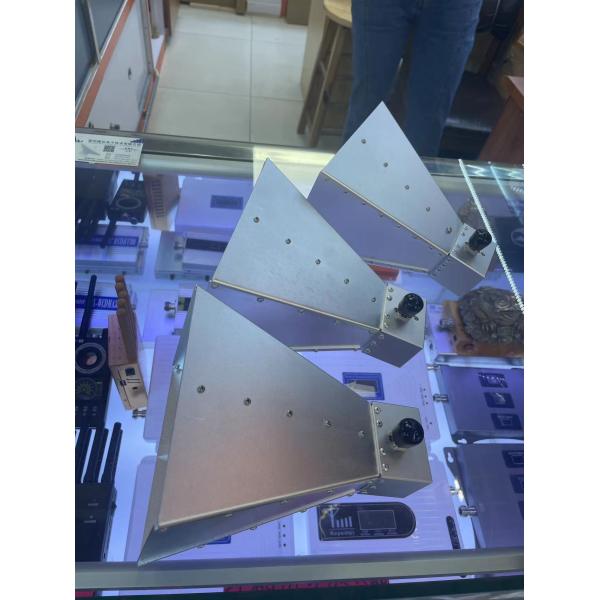

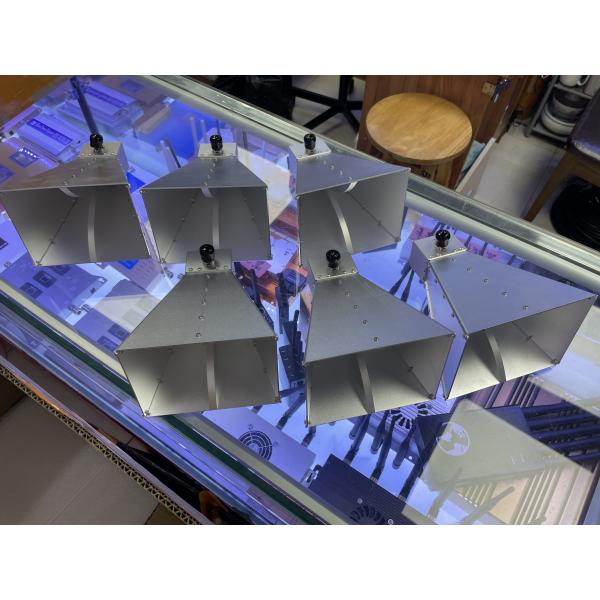

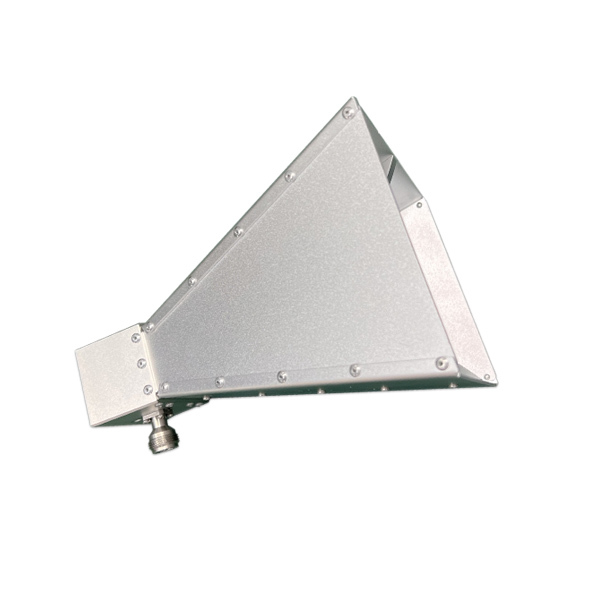

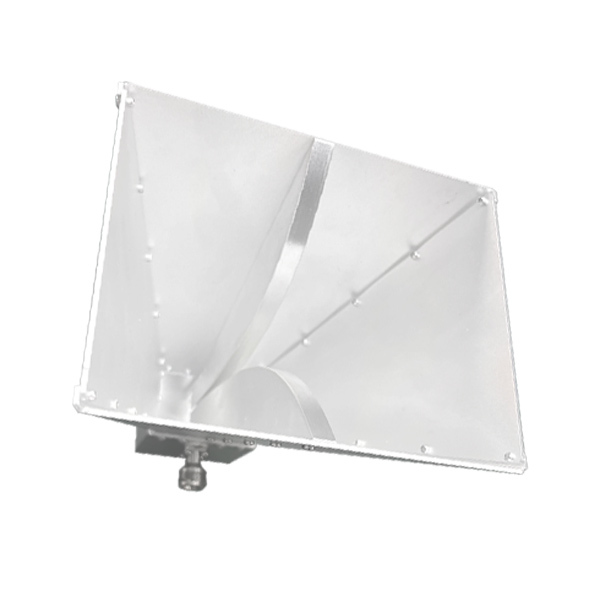

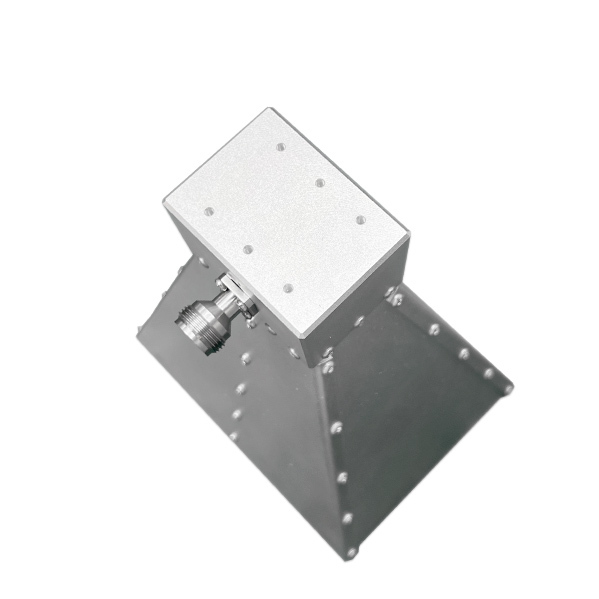

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
Specifications
Brand Name :
LDSK
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
$2285
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability :
5000pcs per month
Delivery Time :
5-8 workdays
Wide Frequency Range (2–8GHz) :
Supports multiple RF bands for drone detection, radar, and spectrum monitoring.
High Gain (18dBi): :
Provides strong directional performance, ensuring precise signal targeting and long-range coverage.
Directional Radiation Pattern :
Ideal for anti-drone and counter-UAV systems requiring focused signal transmission or reception.
Versatile Applications: :
Perfect for drone defense systems, EMC testing, radar calibration, RF measurement, and research labs.
Description

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna


Product Description

Horn-BDHA28-18
Parameters Specifications Units
Frequency Range 2-8 GHz
Gain 18 Typ. dBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ. dB
3dB Beamwidth E-Plane: 29-12 deg

H-Plane: 29-17
Connector SMA-Female
Finishing Paint Black
Material Al
Size (L*W*H) 765.99*439.92*439.92 mm
Weight 7.415 kg


Outline Drawing(size:mm)

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

Simulated Data

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems


Company Product

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

Packing and Delivery

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?

Email: jess@ladaskytech.com
