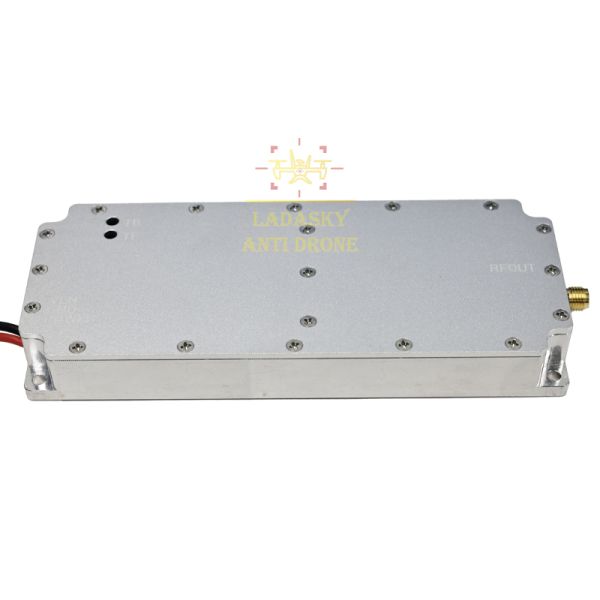

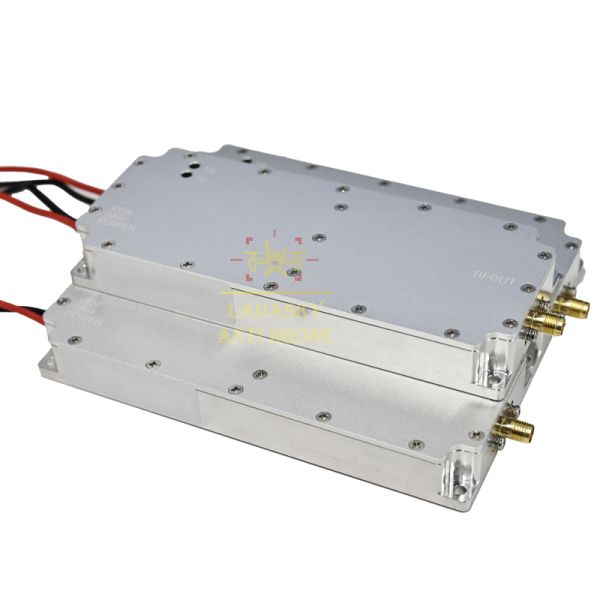

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
Specifications
Place of Origin :
Guangdong, China
Supply Ability :
50000pcs per month
Product Weight :
400g
OUTPUT Power :
50W
MOQ :
1 piece
Brand Name :
LDSK
Delivery Time :
1-3 workdays
Product Size :
132 × 53 × 17
Payment Terms :
D/A,D/P,T/T,Western Union， Paypal
Customization :
Available | Customized Request
Description

6500-6700mhz/6700-6900mhz/6900-7200mhz 50W anti drone module/PA module

Power and Frequnecy support Customzation form 10-7500mhz, 10W,20W,30W, 40W, 50W,100W

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M 6500-6700 6700-6900 6900-7200 6-7.5G rf amplifiers cb radio wideband rf power amplifier rf amplifiers 100w 220 mhz rf power amplifier 150w rf amplifier 1000w vhf 100-7500mhz factory

Performance Parameters

Parameter Min. Typ. Max. Unit Symbol
Operating Frequency 6500–6700, 6700–6900, 6900–7200 MHz
Bandwidth - 200 - MHz BW
Peak Output Power (CW signal) - 50 - W PSAT
Efficiency - 28 - % EFF
Harmonics (1st–Nth, @70W) 10 - - dBc HN
Spurious Emission 60 - - dBc Spur
Input VSWR - - 2:1 - VSWR
Output VSWR - - 2:1 - VSWR
Operating Voltage 28 - - V VDC
Current Consumption 5.5 - - IDC

Mechanical Parameters

Parameter Typ. Unit
Weight 0.4 kg
Dimensions 132 × 53 × 17 mm
RF Connector RF output: SMA female -
DC Connector Power supply: Feedthrough capacitor male -
Cooling Method External heat sink required -
