Automotive RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack
Automotive RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack
Automotive RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack
Automotive RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack
Specifications
Brand Name :
BOGES
Model Number :
ZL-RG178U-009
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3,000,000 Pcs Per Month
Delivery Time :
15Days After Receive Deposit
Packaging Details :
PE Bag / Carton
Type :
Coaxial
Connector Series :
Fakra B female straight jack
Cable type :
RG58 RF Cable Assembly or Customized
Temp.range :
-65°C~+165°C
Plating :
Nickel / gold
Impedance :
50 Ohm
Description

RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack​

Product Description:

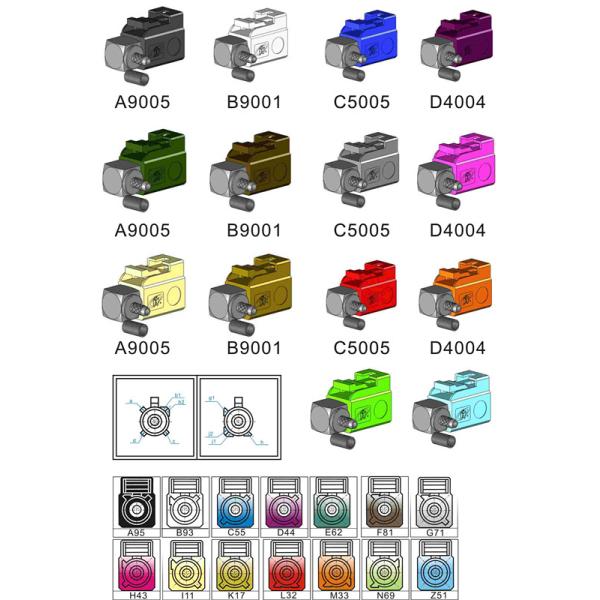

Superbat offers Automotive Coax Cable Assemblies are uesd Fakra Connectors and HSD Connectors . The Fakra Connectors and HSD Connectors feature multiple color codes for easy identification and unique keying to prevent mis - mating , meet the particular mechanical and environmental requirements of the automotive industry .The Connectors are commonly Applied to Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Remote Vehicle Diagnostics,Infotainment Systems.

Applications :


1. Automotive

2. Global Positioning Satellite

3. Satellite Radio

4. Bluetooth

5. Remote Vehicle Diagnostics

6. Infotainment Systems

Detail Specification:

Electrical 　
Frequency DC ~ 11 GHz
SWR <=1.5
Impedance 50 OHM
Dielectric Withstanding Voltage 1000 VRMS
Insulation Resistance 1000 MΩ min
Contact Resistance (Center Contact) < 20 mΩ
Contact Resistance (Out Contact) < 10 mΩ
Insertion Loss < 0.3 dB
Mechanical 　
Mating Durability 100 mating cycles min
Plastic Housing Engagement Force 　
Engagement 20 N
Disengagement 25 N

Automotive RG 58 Extension Cable GPS Antenna Adapter To Fakra B Female Jack

Offer custom made service:

If you need the pigtails with other connectors ( SMA . BNC , TNC , N , UHF , MCX , MMCX , IPX , FME ....), or other kinds of pigtails , you can contact us freely .
If you require a different mounting style , we will be happy to consider your requirements to provide a working solution .

RF coaxial cable assemblies are using for 2.4G ( WiFi , wlan ), GSM system , GPRS system , CDMA system , GPS navigation system , wireless communication system , antennas car radio , test equipment , microwave components , data transmission , LAN system , satellite transmission , and aviation equipment . For any different length of cable will be all available.


About us :

We specializes in the sale of 3G / GSM / WIFI / GPS antennas RF coaxial connectors , adapters , cable assemblies etc , and especially provides custom services for these products .
