Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases
Specifications
Brand Name :
Growatt
Model Number :
Mic 750-3300tl-x
Certification :
FC, CE, ISO
Place of Origin :
China
MOQ :
30Kva
Payment Terms :
T/T
Supply Ability :
100KVa
Delivery Time :
15days (produce time)+30day(delivery time)
Application :
solar energy system
Battery Normal Voltage :
48VDC
Charging Current :
2A-120A
Cold Start Voltage :
46.0VDC
Color :
Convention
Dimensions :
1650mm x 992mm x 40mm
Efficiency :
20%
Grid Type :
Grid-tied solar system 5kw
Inverter Type :
String Inverter
Maximum Power Current :
33.3 A
Maximum Power Voltage :
30 V
Optional Part :
Storage battery
Safety Class :
Class A
Solar Panel :
Monocrystalline Solar Pane
Type :
Photovoltaic (PV) System
Description

Hybrid Inverter 10Kva 40Kva

Output Type
Single
Type
DC/DC Converters, DC/AC Inverters
Inverter Efficiency
0.976
Place of Origin
Jiangsu, China
Brand Name
SUNKET
Model Number
MIC 750~3300TL-X
Input Voltage
500V/550V
Output Voltage
230V(180-280V)
Output Current
3.6/4.8/7.1/9.5/11.9/14.3A
Output Frequency
50Hz/ 60Hz
Size
274/254/138mm
Certificate
CE/RHOS/IEC
Warranty
5 years
Weight
9.1kg
Product name

Growatt Inverter Mic 750-3300tl-x
Model Number
MIC 750~3300TL-X
Output Voltage
220V/230V/240V
Output Frequency
50Hz/60Hz Auto
Size
274/254/138mm
Inverter Efficiency
0.976
Output Type
Single
Warranty
5 years
Weight
9.1kg
Display
LED/WIFI

Relative series parameter

Datasheet
MIC 750TL-X
MIC 1000TL-X
MIC 1500TL-X
MIC 2000TL-X
MIC 2500TL-X
MIC 3000TL-X
MIC 3300TL-X
Input data (DC)
Max. recommended PV power
1050W
1400W
2100W
2800W
3500W
4200W
4290W
(for module STC)
Max. DC voltage
500V
500V
500V
500V
550V
550V
550V
Start voltage
50V
50V
50V
50V
80V
80V
80V
Nominal voltage
120V
180V
250V
360V
360V
360V
360V
MPP voltage range
50V-500V
50V-500V
50V-500V
50V-500V
65V-550V
65V-550V
65V-550V
No. of MPP trackers
1
No. of PV strings per MPP tracker
1
Max. input current per MPP tracker
13A
Max. short-circuit current per MPP tracker
16A
Output data (AC)
AC nominal power
750W
1000W
1500W
2000W
2500W
3000W
3300W
Max. AC apparent power
750VA
1000VA
1500VA
2000VA
2500VA
3000VA
3300VA
Nominal AC voltage(range*)
230V (180-280V)
AC grid frequency
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
3.6A
4.8A
7.1A
9.5A
11.9A
14.3A
14.3A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
Single phase
Efficiency
Max.efficiency
97.40%
97.40%
97.40%
97.40%
97.60%
97.60%
97.60%
European efficiency
96.50%
96.50%
97.00%
97.00%
97.00%
97.10%
97.10%
MPPT efficiency
99.90%
Protection devices
DC reverse polarity protection
Yes
DC switch
Yes
AC/DC surge protection
Type III / Type III
Insulation resistance monitoring
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
AFCI protection
Optional
General data
Dimensions (W / H / D)
274/254/138mm
Weight
6kg
6kg
6kg
6kg
6.2kg
6.2kg
6.2kg
Operating temperature range
–25°C ... +60°C
Topology
Transformerless
Cooling
Natural convection
DC connection
H4/MC4(Optional)
AC connection
Connector
Interfaces: RS485 / USB/Wi-Fi/
Yes/Yes/Optional/Optional/Optional /Optional
GPRS/ RF/LAN
Warranty: 5 years / 10 years
Yes /Optional

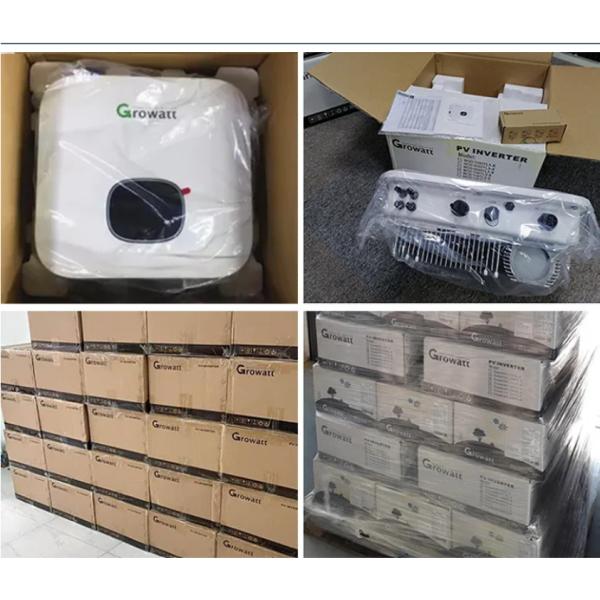

Package

Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases

Project case

Top sale brand- Hybrid Inverter LED Display (10KW-30KW) 2 or 3phases

FAQ:

Q: Who are we?
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.

Q: What can Sunket provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.


Q: Why choose Sunket?
Sunket is a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service

Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.

Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.

Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T

Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
