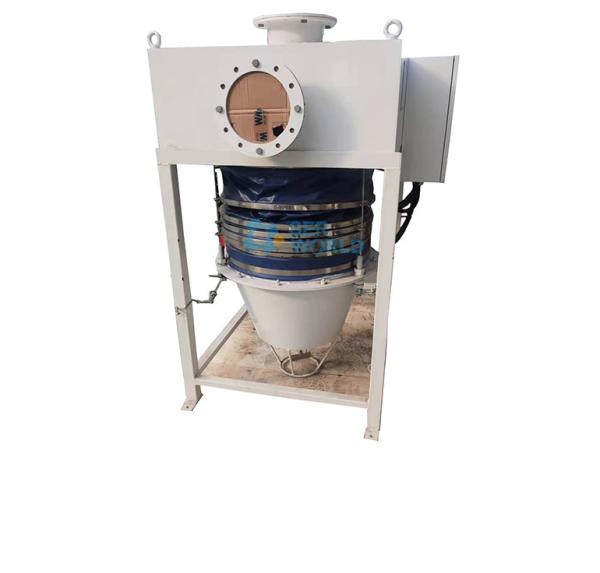

Retractable Telescopic Unloader For High Altitude Material Discharge
Retractable Telescopic Unloader For High Altitude Material Discharge
Specifications
Brand Name :
Serworld
Model Number :
NMRV110-100
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Supply Ability :
30sets per month
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Price :
USD100-100,00
Fuselage thickness :
Middle: 3mm, rear: 5mm, carbon steel
Telescoping distance :
1000mm,retract:1000mm,extension:2000mm
Inlet size :
500
Outlet size :
330
Drive mode :
Kink rope
Rope diameter :
8mm
Telescoping speed :
0.1m/s
 Speed :
1400(r/m)
Power :
2.2KW
Reducer type :
Worm gear
Rated power :
2.2kw
Speed ratio :
1000
Bearing  :
UCF207,NSK
Control mode :
At site/long-range/handheld
PLC :
DELTA
Interface :
Touch screen
Warranty :
1 year
Material :
Steel
Condition :
new
Speed :
Adjustable
Automation :
Fully automated operation
Cleaning Type :
pressure
Function :
Transporting materials from one place to another
Safety Features :
Multiple safety mechanisms
Power Source :
Electricity
Size :
Varies depending on model
Type :
Mechanical Equipment
Noise Level :
Low
Application :
powder
Description

Retractable Telescopic Unloader For High-Altitude Material Discharge With Reduced Dust Overflow

Telescopic Hose Unloader

Performance Features:

(1) This product can be freely retracted. High-altitude materials are discharged from the chute to the loading truck, which can prevent dust overflow and reduce the material crushing rate. It has the characteristics of environmental protection, high distribution efficiency, large shrinkage ratio, small installation space and simple operation.

(2) Type and transmission mode of lifting motor: the motor is installed vertically with explosion-proof motor, the drive gear worm reducer drives the reel forward and backward, and the steel wire rope is pulled to realize the rise and fall of the chute.

(3) Structure and material: mainly composed of power part, actuator, mechanical part and electrical part. The power part is mainly composed of motor, reducer, main shaft and other parts; The actuator is mainly composed of wire rope, pulley, etc; The mechanical part is mainly composed of the top box, hose, tail shell, dust bag, etc; The electrical part is mainly composed of sensor, tilt switch, electric cabinet box, etc.

Technical parameter :

Fuselage thickness Middle: 3mm, rear: 5mm, carbon steel
Telescoping distance 1000mm,retract:1000mm,extension:2000mm
Inlet size 500
Outlet size 330
Drive mode Kink rope
Rope diameter 8mm
Telescoping speed 0.1m/s
Motor
Model YFB100L-4
Speed 1400(r/m)
Power 2.2KW
Reducer
Model NMRV110-100
Reducer type Worm gear
Rated power 2.2kw
Speed ratio 1000
Dustproof canvas
Material Plastic-coated cloth,It has the characteristics of dust prevention, water resistance, high temperature resistance, corrosion resistance, coolant resistance, etc
Service life One year
Bearing UCF207,NSK
Control mode At site/long-range/handheld
PLC DELTA
Interface Touch screen
