Model TQSF Proportion Classifying Destoner Machine For Grain Cleaning
Model TQSF Proportion Classifying Destoner Machine For Grain Cleaning
Specifications
Brand Name :
Serworld
Model Number :
SWTQSF01
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Supply Ability :
10 sets can be produced in 45 days
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Price :
USD10,000-100,000
Power(kw) :
2*0.25
Capacity(t/h) :
1-22
Wind Pressure (pa) :
<980
Vibration Frequency (time/min) :
960
Weight (kg) :
215-1050
Amplitude (mm) :
4-5
Screen Width (cm) :
43-250
Power :
3.7kW
Material :
Stainless Steel
Application :
Grain Cleaning
Capacity :
1000kg/h
Frequency :
50Hz
Air Volume :
2000m3/h
Model :
SC-100
Voltage :
380V
Screen Layers :
3
Cleaning Efficiency :
99%
Description

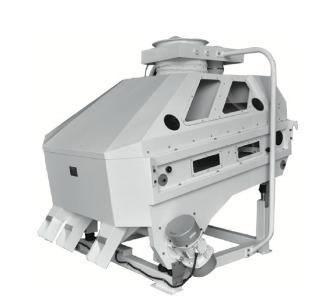

Model TQSF Proportion Classifying De-stoner

Model TQSF Proportion Classifying Destoner Machine For Grain Cleaning

Performance Features:

Model TQSF proportion classifying de-stoner classifies and gets rid of stones combining sifting with airflow. It is mainly used for grain pre-cleaning and getting rid of impurities or stones. What’s more, it can be used for other grain cleaning and seeds picking. The machine has the features as follows: high efficiency, good cleaning result, low noises, no dust seen, convenient operation and maintenance.

Technical parameter :

Model Screen Width (cm) Capacity (Wheat t/h) Wind Pressure (pa) Air Suction (m³/h) Amplitude (mm) Inclined Angle (°) Power (kW) Vibration Frequency (time/min) Weight (kg) Overall Size (mm)
TQSF43 43 1–1.5 <980 3000 4–5 5–9 2×0.25 960 215 1270×700×1600
TQSF50 50 2-4 <980 4000 4-5 5–9 2×0.25 960 230 1420×780×1800
TQSF60 60 3–5 <980 6000 4-5 5–9 2×0.25 960 280 1450×876×1800
TQSF80 80 5–7 <980 6500 4-5 5–9 2×0.25 960 340 1450×1046×1800
TQSF100 100 7–9 <980 8000 4-5 5–9 2×0.25 960 400 1500×1246×1900
TQSF125 125 9–11 <980 10200 4-5 5–9 2×0.25 960 500 1470×1496×1900
TQSFB4125 125 15–18 <980 12000 4-5 5–9 2×0.55 960 650 1649×1741×2083
TQSF150 150 11–14 <980 12000 4-5 5–9 2×0.25 960 600 1580×1746×1900
TQSFB150 150 18–20 <980 15000 4-5 5–9 2×0.55 960 760 1649×1964×2083
TQSF175 175 14–18 <980 15000 4-5 5–9 2×0.25 960 750 1470×1990×1900
TQSF200 200 16–20 <980 17000 4-5 5–9 2×0.25 960 1000 1470×2292×1900
TQSF250 250 20–22 <980 20400 4-5 5–9 2×0.25 960 1050 1470×2835×1900
