Die Chamfering Machine For Feed Processing Machinery Pellet Mill
Die Chamfering Machine For Feed Processing Machinery Pellet Mill
Specifications
Brand Name :
Serworld
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Price :
USD10,000-100,000
Packaging Details :
Wooden Pallet
Delivery Time :
45-60days
Payment Terms :
LC/TT
Material :
stainless steel
Distribute Hole :
as your requires
Weight :
800kg
Frequency :
50Hz
Motor Type :
pure copper motor
Color :
silver
Motor :
Siemens
Max Capacity :
100-120tph
Core Components :
Motor
Warranty :
1 year
Application :
Animal farm
Trading Method :
EXW, FOB, CFR, CIF
Lifespan :
8-10 years
Use :
Animal husbandry feed processing
Produce Ability :
2 ton per hour
Description

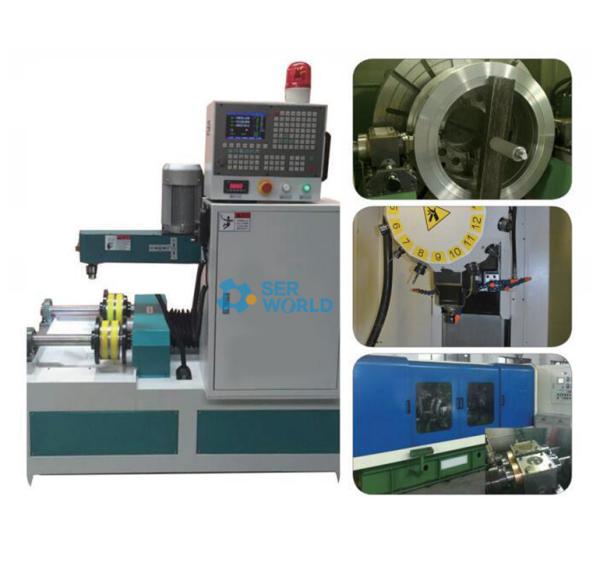

Die Chamfering Machine For Feed Processing Machinery Pellet Mill

Product Description :

Die Chamfering Machine is an efficient chamfering equipment designed specifically for feed processing machinery, mold manufacturing, and related industrial

fields. It is mainly used for precision chamfering, deburring, and bevel processing of mold edges. It adopts an automated control system and high hardness cutting

tools, which can quickly process various metal materials (such as alloy steel, stainless steel, etc.), ensure smooth and flat mold edges, and improve mold service life

and production efficiency.

Scope of application:


Suitable for precision chamfering requirements of industrial molds such as feed machinery molds, food processing equipment molds, biomass pellet molding

molds, etc., especially suitable for mass production scenarios.

Core advantages:

(1) Efficient and precise: Automated operation combined with CNC system achieves high-precision machining of ± 0.1mm, which is more than three times more

efficient than traditional manual labor;

(2) Strong durability: using industrial grade cutting tools and rigid structure design, it can operate stably for a long time and adapt to high-intensity continuous

operation;

(3) Easy to operate: The human-machine interface is user-friendly, supports parameterized settings, and allows for one click switching between different mold

specifications, reducing the operating threshold.

Technical parameter :

Model Ordinary type DJ550 Enhanced typeDJ370
Movement distance of front to back(mm) 560 380
Movement distance from top to bottom(mm) 330 270
Machining hole range 4-18 2-12
Ring die size (inner diameter)(mm) 300-850 250-680
Positioning accuracy(mm) 0.02 0.02
Spindle speed(r/m) 0-3000 0-2000
Total power(kw) 5 4
Control interface Chinese/English Chinese/English
Machine size (mm) 2200*900*1600 1750*900*1700
Machine weight(kg) 1100 900
