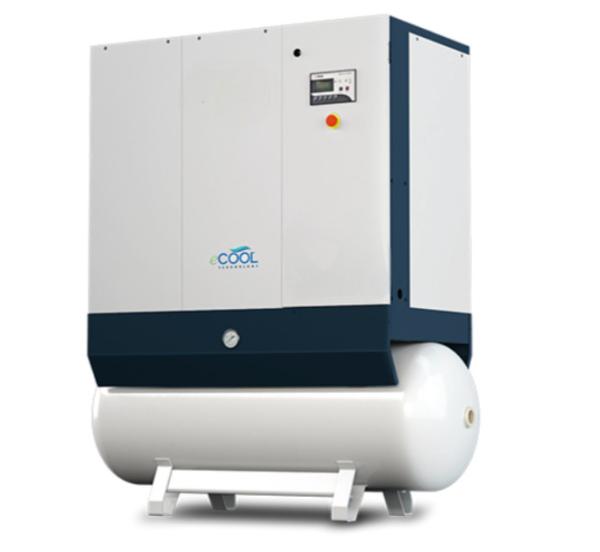

Coupling Drive Air Compressor Machine 100-120tph 75kw 380V

Specifications

Brand Name :

Serworld

Model Number :

SWSAV75A-*G-C

Certification :

CE/ISO

Place of Origin :

China

MOQ :

1 SET

Payment Terms :

LC/TT

Supply Ability :

60 sets per month

Delivery Time :

45-60days

Packaging Details :

Wooden Pallet

Price :

USD10,000-100,000

Dimensions :

2250*1344*1694mm

Starting method :

Variable frequency starting

Drive method :

Coupling drive

Nominal power of the motor :

75kw

Rated voltage :

380V

Motor protection grade :

IP55F

Rated speed frequency of the motor :

1485RPM/50Hz

Main motor weight :

510kg

Compressed air temperature :

Ambient temperature: +12

Minimum and maximum ambient temperature :

3/45

Cooling fan air volume :

18,900 m/h

Total machine weight :

2380kg

Material :

stainless steel

Distribute Hole :

as your requires

Weight :

800kg

Frequency :

50Hz

Motor Type :

pure copper motor

Color :

silver

Motor :

Siemens

Max Capacity :

100-120tph

Core Components :

Motor

Warranty :

1 year

Application :

Animal farm

Trading Method :

EXW, FOB, CFR, CIF

Lifespan :

8-10 years

Use :

Animal husbandry feed processing

Produce Ability :

2 ton per hour

Description

Air Compressor

The optimized air compressor element features enhanced rotor profile and volumetric efficiency, delivering superior performance. Equipped with patented rotors that maximize compression efficiency for reliable continuous-duty operation.

Coupling Drive Air Compressor Machine 100-120tph 75kw 380V

Compressor screws	Compressor screws are machined on UK-made HOLROYD rotor mills and precision-ground by German KAPP/KLINGELNBERG grinders, achieving ≤0.005mm profile accuracy and Ra0.1-0.2μm surface roughness. Rotors maintain optimal clearances for stable, high-efficiency performance even during continuous operation.
Control Panel	Features intuitive Chinese LCD display with user-friendly prompts for seamless interaction. Provides real-time monitoring, critical alerts, data logging, and diagnostics. Supports multiple languages (Simplified/Traditional Chinese, English, Spanish, Portuguese) for global applications.
High-Efficiency Cooling System	Heavy-duty oil/air coolers with low ΔT (6-8°C) utilize optimized airflow design and enlarged heat dissipation areas for superior cooling. Reduces discharge temperatures, extends lubricant life by 30%, and protects critical components.
Electrical System	Premium heat-resistant wiring and components ensure maximum reliability. Includes auto-loading/unloading, idle shutdown, and high-discharge-temperature protection.
Inlet Valve	Zero-reverse-flow design prevents oil carryover during shutdown with minimal pressure drop for optimal suction efficiency.
Intake Filter	Cyclonic pre-separation reduces airflow resistance. High-efficiency filter elements extend service life of rotors, oil filters, separator elements and lubricant.
Oil Separator	Oversized receiver ensures stable airflow. Multi-stage separation (gravity/cyclonic/impact) plus precision coalescer elements achieve ≤3ppm oil carryover with 0.1μm filtration.
Oil Separator	Oversized receiver ensures stable airflow. Multi-stage separation (gravity/cyclonic/impact) plus precision coalescer elements achieve ≤3ppm oil carryover with 0.1μm filtration.
Fixed-Speed Units	Remote start/stop via dry contacts. RS485 communication enables real-time monitoring of operating parameters and faults through central control systems for unmanned operation. Integrated VFD/fixed-speed control delivers significant energy savings in industrial applications.
