5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
Specifications
Brand Name :
Serworld
Model Number :
DZH5-1.25-SCI
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Supply Ability :
60 sets per month
Price :
USD10,000-100,000
Material :
stainless steel
Capacity :
1T/H,2T/H,4T/H,5 T/H steam output
Pressure :
1.25 MPa
Efficiency :
82.95% (design thermal efficiency)
Fuel :
Diesel, natural gas, coal, biomass
Emissions :
Complies with GB13271-2014 standards
Dimensions :
5.78m × 2.6m × 3.24m (L×W×H）
Distribute Hole :
as your requires
Weight :
800kg
Frequency :
50Hz
Motor Type :
pure copper motor
Color :
silver
Motor :
Siemens
Max Capacity :
100-120tph
Core Components :
Motor
Warranty :
1 year
Application :
Animal farm
Trading Method :
EXW, FOB, CFR, CIF
Lifespan :
8-10 years
Use :
Animal husbandry feed processing
Produce Ability :
2 ton per hour
Description

5 Tons Of Hand-Fired Steam Boiler (Coal Saving)

The DZH5-1.25-SCI Biomass Steam Boiler delivers exceptional 82.95% thermal efficiency through patented threaded smoke tubes and optimized combustion, significantly reducing fuel costs while meeting stringent GB13271-2014 emissions standards. Its compact, factory-assembled design ensures quick installation and reliable 5t/h steam output, backed by ASME/CE certifications and 12-hour onsite support—making it the ideal turnkey solution for sustainable industrial operations seeking lower operating costs and compliance assurance.

5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving

(1) Core Specifications:

Capacity

5 t/h steam output

Pressure

1.25 MPa

Efficiency

82.95% (design thermal efficiency)

Fuel

Biomass pellets (consumption: 769.35 kg/h)

Emissions

Complies with GB13271-2014 standards

Dimensions

5.78m × 2.6m × 3.24m (L×W×H)

(2) Key Technologies:

· ✅ Threaded Smoke Tubes

· Enhanced heat transfer efficiency

· Self-cleaning design reduces ash buildup
✅ Optimized Water Circulation

· Eliminates stagnant zones to prevent sludge accumulation

· Prevents boiler drum bulging
✅ Dual-Zone Combustion

· (eight-shaped) refractory wall improves dust reduction

· Lowers initial dust emission below regulatory limits

(3) Included Components:

· Boiler main unit + ESP dust collector

· Induced draft fan (22KW) + Forced draft fan (7.5KW)

· Safety valves, water level controllers, gauges

· Electrical control cabinet (GKC-4L)

· Optional: Economizer (improves heat recovery)

(4) Certifications & Quality Assurance:

· A-Level Boiler Manufacturing License (China TS2110323-2026)

· ASME (U.S.) + CE (EU) certified

· ISO 9001 / ISO 14001 / ISO 45001 certified

· Materials: Q245R steel drum, 20# steel tubes

(5) After-Sales Commitment:

· 2-hour response / 12-hour onsite support for emergencies

· 1-year warranty on all components

· Installation guidance + operational training

(6) Company's Process Equipment, Inspection Facilities, and Production Capacity

The company possesses over 400 sets of production and inspection equipment. This includes plasma cutting machines, CNC gas cutting machines, 1600 right-angle coordinate gas cutting machines, serpentine tube production lines, membrane wall production lines, an 80×2500 digital display plate rolling machine, a 30×2500 plate rolling machine, a φ159×141 hydraulic pipe bending machine, φ219-φ273 header reducing machines, a 600-ton hydraulic press, head gas cutting machines, submerged arc automatic welding machines, tube sheet automatic welders, and various non-destructive testing equipment.

It operates from a standardized workshop equipped with 32-ton overhead cranes and corresponding lifting facilities. The annual production capacity reaches 5,000 steam tons of boilers and over 5,000 metal tons of pressure vessels.

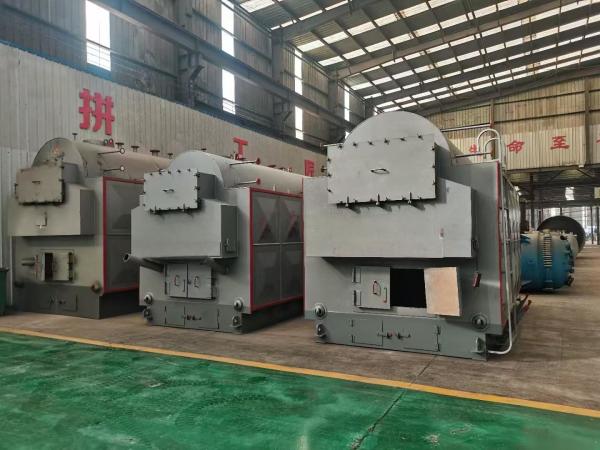

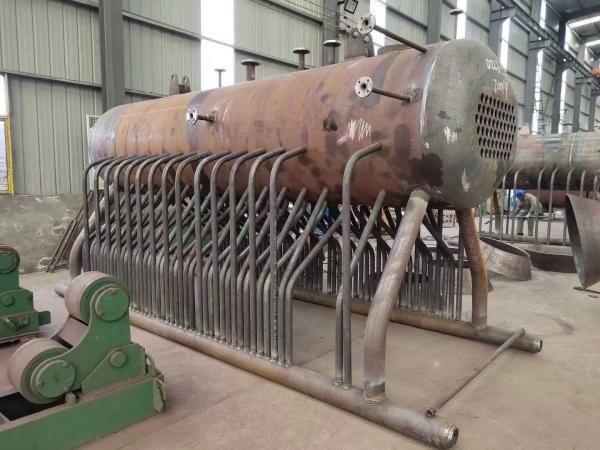

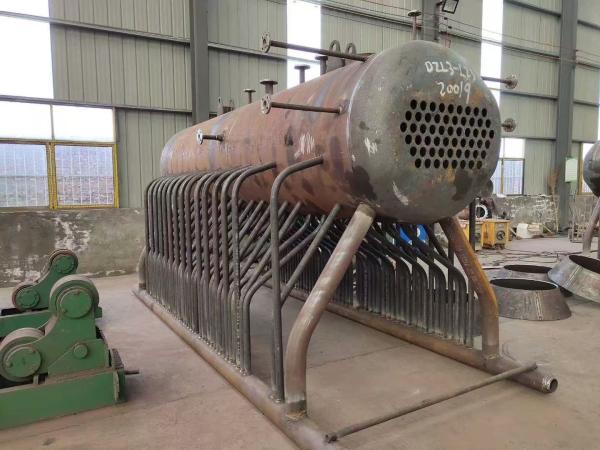

Photos of the Intelligent Factory and Selected Process Equipment / Inspection Facilities (on-site)

5 Tons Feed Mill Boiler Hand Fired Steam Boiler for Coal Saving
