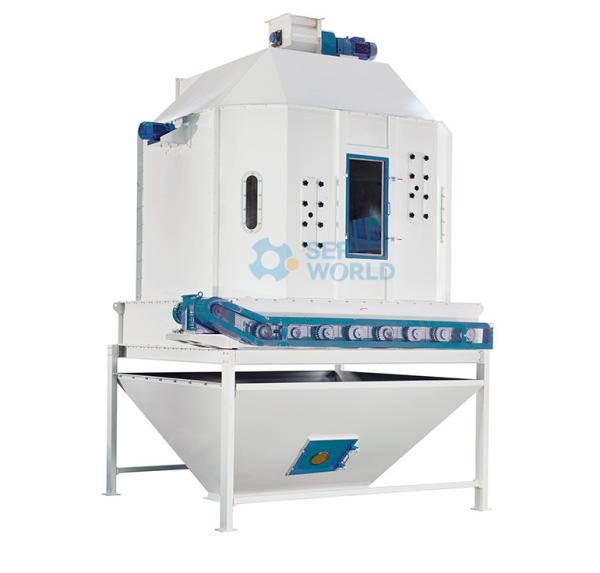

Feed Pellet Cooler Machine 5t/h For Various Granular Material
Feed Pellet Cooler Machine 5t/h For Various Granular Material
Specifications
Brand Name :
Serworld
Model Number :
SWYLL15×15
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Supply Ability :
10 sets can be produced in 45 days
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Price :
USD10,000-100,000
Capacity(t/h) :
5
Cooling time(min) :
8-15 minutes
Temperature cooling(℃) :
≤ room temperature ＋5℃
Power(kW) :
1.5
Fan pressure(Pa) :
2000
Fan type :
4-72-11NO-5A/7.5kw
Core Components :
Motor
Wearing Parts :
mould and roller
Die Type :
Ring die
Pellet Size :
2-12mm
Voltage :
380V
Pellet Diametrer :
2-8mm
Pellet Diameter :
1.5-12mm
Cutter Power :
0.75kw
Package :
woodcase
Type :
Feed Pellet Machine
Condition :
New
Description

Cooling And Variable Frequency Discharging With Pellet Cooler Machine For Various Granular Material

Performance Features:

(1) Good cooling performance through counter-flow motion between cooling air and granular material cooling material from the bottom up to avoid crack of granule;

(2) The temperature of material after cooling is ≤ 5℃ higher than ambient temperature and the drying rate is ≥ 2% so as to extend shelf life of feed;

(3) The series adopts variable frequency impeller discharging device;

(4) Material is automatically cleaned up to avoid crossing contamination;

(5) Widely applied to cooling of various granular material.

Technical parameters:

Model

SWYLL15×15

SWYLL20×20

SWYLL24×24

SWYLL28×28

Capacity(t/h)

5

10

15

30

Cooling time(min)

8-15 minutes

Temperature cooling(℃)

≤ room temperature ＋5℃

Power(kW)

1.5

2.2

3.0

5.5

Fan pressure(Pa)

2000

2000

2000

2000

Fan type

4-72-11NO-5A/7.5kw

4-72-11NO-6C/15kw

4-72-11NO-8C/30kw

4-72-11NO-12C/37kw
