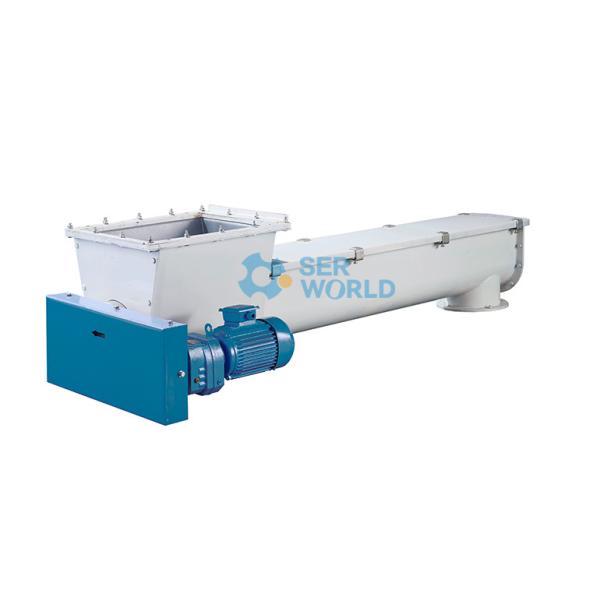

Automatic Double Conic Screw Conveyor Machine For Powder
Automatic Double Conic Screw Conveyor Machine For Powder
Specifications
Brand Name :
Serworld
Model Number :
TLSU/TLSG10-50
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Supply Ability :
10 sets can be produced in 45 days
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Price :
USD100-100,00
Capacity(t/h) :
1-200
Power(kw) :
Power is determined by the length.
Bucket gap (mm) :
140
Belt speed(m/s) :
1.8-1.8
Belt width(mm) :
150
Maximum Height(m) :
45
Rotate speed(rpm) :
110-136
Warranty :
1 year
Material :
Steel
Condition :
new
Speed :
Adjustable
Automation :
Fully automated operation
Cleaning Type :
pressure
Function :
Transporting materials from one place to another
Safety Features :
Multiple safety mechanisms
Power Source :
Electricity
Size :
Varies depending on model
Type :
Mechanical Equipment
Noise Level :
Low
Application :
powder
Description

Screw conveyor

Automatic Double Conic Screw Conveyor Machine For Powder

  1. Performance Features:

    • According to different requirements,configure U-shaped cross-section,tubular and multi-cavity screw conveyors
    • Large bearing capacity,strong adaptability,easy installation and maintenance,long life
    • U-shaped section design,large output,easy to clean
    • The blades are arranged with equal diameter and variable pitch to ensure the overall discharge
    • Optional anti-blocking alarm and speed alarm

2. Technical parameter:

Model

Power(kw)

Capacity(t/h)

Rotate speed

TLSU/TLSG10

≤3

1-3

≤136

TLSU/TLSG12

≤4

3-5

≤136

TLSU/TLSG16

≤5.5

5-8

≤136

TLSU/TLSG18

≤7.5

8-14

≤136

TLSU/TLSG20

≤7.5

12-20

≤136

TLSU/TLSG25

≤11

25-38

≤136

TLSU/TLSG28

≤11

30-50

≤136

TLSU/TLSG30

≤15

50-60

≤120

TLSU/TLSG32

≤15

50-70

≤120

TLSU/TLSG35

≤15

70-90

≤120

TLSU/TLSG40

≤15

100-120

≤110

3. Major Structure

Automatic Double Conic Screw Conveyor Machine For Powder

4.Practical Application

Automatic Double Conic Screw Conveyor Machine For Powder
