PHLF115 Vertical Ultra Fine Pulverizer
PHLF115 Vertical Ultra Fine Pulverizer
PHLF115 Vertical Ultra Fine Pulverizer
PHLF115 Vertical Ultra Fine Pulverizer
Specifications
Brand Name :
Serworld
Model Number :
PHLF115
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Price :
USD10,000-100,000/SET
Payment Terms :
LC/TT
Supply Ability :
30 days for 15 sets
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Rotor Diameter(mm) :
1150
Model :
PHLF115
Rotor Speed (r/min) :
1700
Power (kw) :
123.2
Capacity(t/h) :
1-4
Color :
custom made
Quantity of hammers :
8/16
Rotating speed of main shaft :
1700r/min
Tooth-type liner :
≥6000T
Hammer :
≥2200T
Wear-resistant plate :
≥2200T
The diameter of feeding material :
≤ 1mm
moisture :
≤ 12%
Voltage :
220V
Power :
55kw
Control System :
PLC
Features :
High Efficiency, Easy Operation, Low Noise
Motivation Type :
Belt or Gear
Hourly Output :
900-1200kg/h
Motor Brand :
Siemens
Application :
Animal Feed Production
Production Capacity :
3-6T
Function :
Aniaml Feed Machine
Usage :
Animal Feed Production
Applicable Industries :
Manufacturing Plant, Farms, Feed Factory
Pellets Diameter :
2-12mm
Condition :
New
Raw Material :
Powder
Fit For :
Chicken, pig, duck etc animals
Frequency :
50Hz
Motor Power :
11kw
Steam Temperature :
130-150ºC
Description

PHLF115 Feed Grinding Machine Ultra Fine Pulverizer For Optimal Performance​

PHLF115 Vertical Ultra Fine Pulverizer

1. Versatile Applications:

  • widely used in the pulverizing processing of raw materials such as corn, wheat, and fish meal.
  • The final particle size of the processed product can be adjusted
  • within the range of 40 to 200 mesh, allowing for flexibility in particle size.

2. Key Advantages:

  • High-strength base with self-lubricating imported bearings for enhanced stability during operation.
  • Specially treated hammer heads with wear-resistant alloy coating on vulnerable areas, increasing the lifespan of the hammers.
  • New type of toothed ring structure designed to disrupt the circulating layer and improve pulverizing efficiency.
  • Split-type wear-resistant plates lined with wear-resistant alloy on vulnerable areas, resulting in a 40% to 50% increase in wear
  • resistance. Optimized convex cover structure design effectively reduces
  • material resistance and energy consumption. Automatic stone and iron removal device to improve the durability
  • of hammer heads and toothed rings.
  • Hydraulic flip cover mechanism for convenient maintenance and replacement of components.
  • Ultrafine system with ultimate emission reduction, enabling the recycling of air in process for environmental protection and energy efficiency.

3. Technical parameters:

Model SWFPHLF115
Rotor Diameter(mm) 1150
Rotor Speed (r/min) 1700
Power (kw) 123.2
Capacity(t/h) 1-4

4. Structural diagram of vertical ultral-fine pulverizer

PHLF115 Vertical Ultra Fine Pulverizer


1.Main motor

2. Hydraulic opening mechanism (optional)

3. Machine base

4. Grading pulley support

5. Observation hole

6. Pedestal

7. Bearing pedestal of grading pulley

8. Grading pulley

9. Belt pulley of main shaft

10. Main shaft seat

11. Grinding disc

12. Toothed ring

13. Split-flow hood

14. Central support

15. Upper cover

16. Feeding system

17. Coupling

18. Supporting seat of grading pulley motor

19. Grading pulley motor

5. Processing flow and configuration

NO. Q'ty Name

PHLF115 Vertical Ultra Fine Pulverizer
3001 1 High level indicator
3002 1 Grinding bin
3003 1 Low level indicator
3004 1 Pneumatic Slide Gate
3101 1 Vertiacl Pulverizer
3102 1 Air duct
3103 1 Cyclone discharger
3104 1 Air lock
3105 1 Silencer
3106 1 Centrifugal fan
3107 1 Dust collector
3108 1 Air lock
3109 1 Screw conveyor
3110 1 Surge Hopper
3111 1 Two-way conveyor
3112 1 Spuare plan sifter
3113 1 Screw conveyor
3114 1 Pneumatic three-way gate

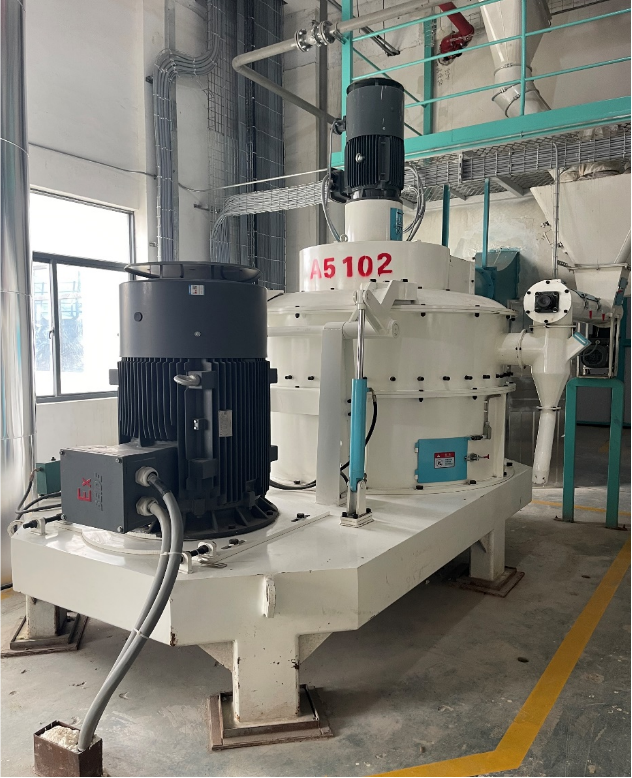

6.On site:

PHLF115 Vertical Ultra Fine Pulverizer
