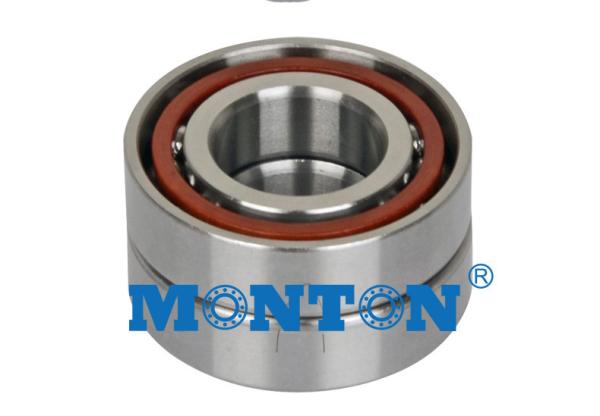

7004CCTPAPA7DUM 20x42x12mm Super precision CNC angular contact spindle bearings NSK FAG
7004CCTPAPA7DUM 20x42x12mm Super precision CNC angular contact spindle bearings NSK FAG
Specifications
Brand Name :
MONTON
Model Number :
7004CCTPAPA7DUM
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Payment Terms :
T/T
Description

Angular contact ball bearings can withstand both radial and axial loads. Can work at higher speeds. The larger the contact angle, the higher the axial load carrying capacity. High precision and high speed bearings typically take a 15 degree contact angle. Under the axial force, the contact angle will increase. It is divided into single row angular contact ball bearings and double row angular contact ball bearings.

Bearing Series NO. : Angular Contact Ball Bearing 7004 CE P4 A

Lubrication : Oil
Precision: P4

Technical Parameter :

Dimension (mm) Basic Load rating (KN) Limiting Speed (r/min) Weight ( Kg)
d D B Cr Cor Grease Lubrication Oil Lubrication
20 42 12 11.1 6.6 26000 35000 0.079

Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.

Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.

Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality: Monton

Inside Diameter: 20mm

Outside Diameter: 42mm

Width: 12mm

Seals / Shields: None

Clearance: * Standard

7004CCTPAPA7DUM 20x42x12mm Super precision CNC angular contact spindle bearings NSK FAG
