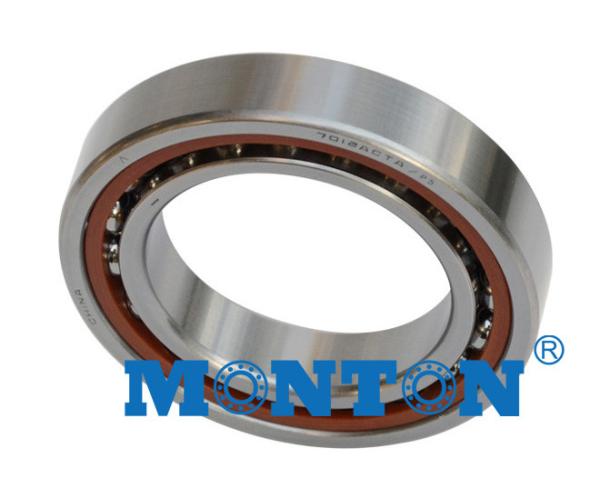

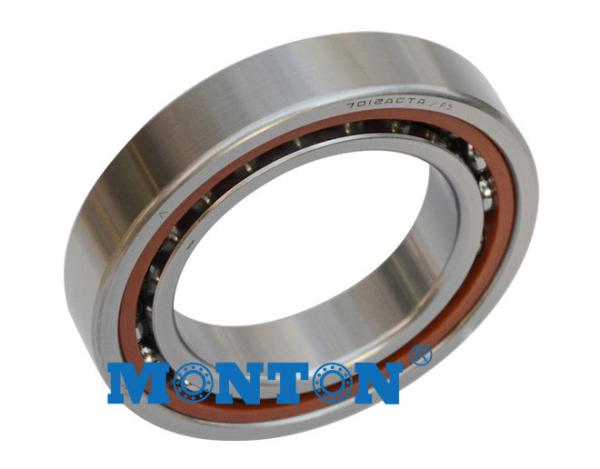

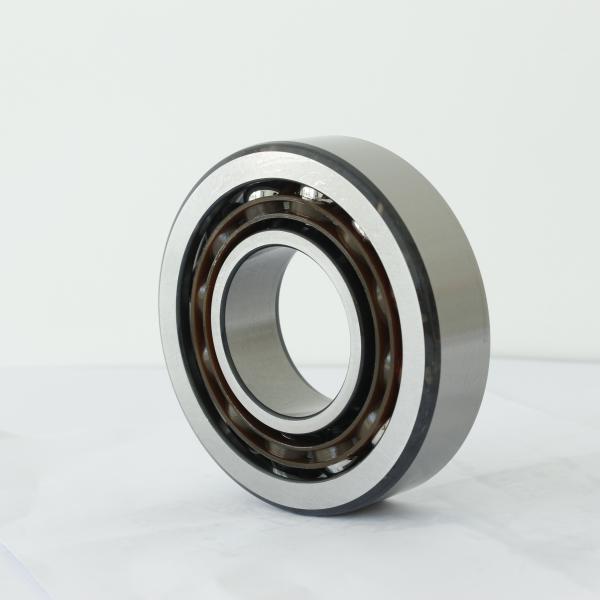

706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
706CHQ1P4GA high speed high precision angular contact ball bearing
Specifications
Brand Name :
MONTON
Model Number :
706CHQ1P4GA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Ask
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Number of row :
Single Row
Precision rating :
P0 P6 P5 P4 P2
Seals type :
ZZ 2RS OPEN
Structure :
Angular Contact
Type :
Angular contact
Application :
Machine Parts
Sample :
Avaliable
Product name :
Angular Contact Ball Bearing
Package :
Standard package
Description

706CHQ1P4GA high speed high precision angular contact ball bearing

d 6 mm 　
D 17 mm 　
B 6 mm 　
d1 9.5 mm 　
d2 9.5 mm 　
D1 13.5 mm 　
r1,2 min. 0.3 mm 　
r3,4 min. 0.15 mm 　
a 4.6 mm 　
　 　 　 　 　
　 　 　 　 　
da min. 8 mm 　
db min. 8 mm 　
Da max. 15 mm 　
Db max. 16.2 mm 　
ra max. 0.3 mm 　
rb max. 0.15 mm 　
dn 10.3 mm 　
　 　 　 　 　
Calculation data 　 　 　 　
Basic dynamic load rating C 2.03 kN
Basic static load rating C0 0.765 kN
Fatigue load limit Pu 0.032 kN
Attainable speed for grease lubrication 120000 r/min
Attainable speed for oil-air lubrication 180000 r/min
Contact angle α 15 °
Ball diameter Dw 3.175 mm
Number of balls z 8
Reference grease quantity Gref 0.09 cm³
Preload and stiffness (back-to-back, face-to-face) 　 　 　 　
Preload class A GA 7 N
Static axial stiffness, preload class A 8 N/µm
Preload class B GB 13 N
Static axial stiffness, preload class B 11 N/µm
Preload class C GC 25 N
Static axial stiffness, preload class C 14 N/µm
Preload class D GD 50 N
Static axial stiffness, preload class D 20 N/µm
Calculation factors 　 　 　 　
Calculation factor f 1.01
Calculation factor f1 1
Calculation factor f2A 1
Calculation factor f2B 1.02
Calculation factor f2C 1.05
Calculation factor f2D 1.09
Calculation factor fHC 1
Calculation factor f0 8.3
Mass 　 　 　 　
Mass bearing 0.006 kg

706CHQ1P4GA high speed high precision angular contact ball bearing
