Specifications
Brand Name :
MONTON
Model Number :
XSU140544
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Type :
Roller
Seals type :
Sealed
Material :
GCr15 bearing steel
Bore size :
474mm
Outside diameter :
614mm
Precision rating :
P0 P6 P5 P4 P2
Application :
Harmonic Drive Servo Actuator
Number of row :
Single Row
Feature :
Long Life,High Speed
Service :
OEM Customized Services
Product name :
Crossed Roller Bearing
Cage :
Steel Cage.Brass Cage.Nylon Cage
Description

XSU140544 474*614*56mm crossed roller bearing

Hollow shaft harmonic drive gearbox assembly robots component set​

XSU140544 474*614*56mm crossed roller bearing Hollow shaft harmonic drive gearbox assembly robots component set

Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width Installing hole Chamfer φLa φLi Ca C0a Cr Cor Kg
d D B nB r(min) KN KN KN KN
(mm) (mm) (mm)
XSU140544 474 614 56 32 2.5 590 498 270 680 170 330 38

XSU crossed roller bearing feature:

Crossed roller bearings are two-row cylindrical rollers that are vertically aligned with each other through a nylon spacer on a 90-degree V-shaped raceway. Therefore, the cross-roller bearing can withstand multiple loads such as radial load, axial load and moment load. . The size of the inner and outer rings is miniaturized, the extremely thin form is a small size close to the limit, and has high rigidity, and the DK crossed roller bearing accuracy can reach P2-P5.

XSU series crossed roller bearing (Integrated Outer/Innner Ring,with Mounting Holes)

XSU series crossed roller bearings: Due to the integral structure of the inner and outer rings, the bearing has high rigidity and has mounting holes. It does not require fixing flanges and bearing seats during installation. It greatly simplifies the installation procedure and does not affect the installation accuracy. It has high rotation precision and Larger torque, and also free to choose the inner ring or outer ring rotation according to the accuracy requirements, with a greater degree of freedom of choice.

XSU crossed roller bearing application:

It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Mainly used in engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, railways and other industries.

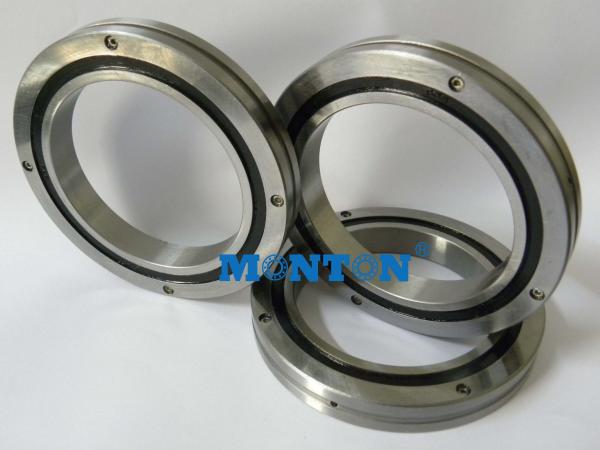

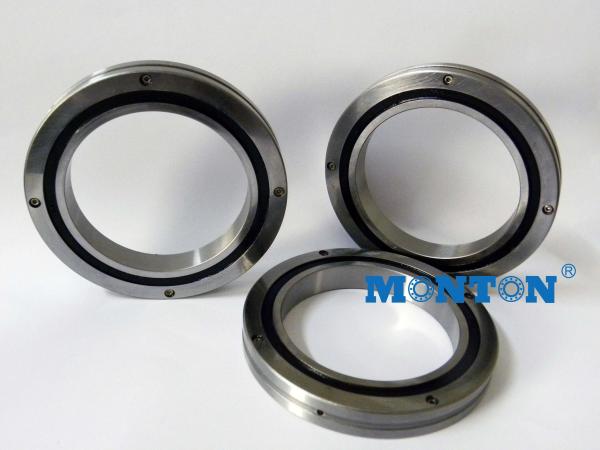

XSU crossed roller bearing picture:

XSU140544 474*614*56mm crossed roller bearing Hollow shaft harmonic drive gearbox assembly robots component set
